DLARC Mark Bayonet Frame Kit – 230mm Wheelbase, 6mm Arms, Full 3K Carbon Fiber Build for FPV Racing Drones

Description

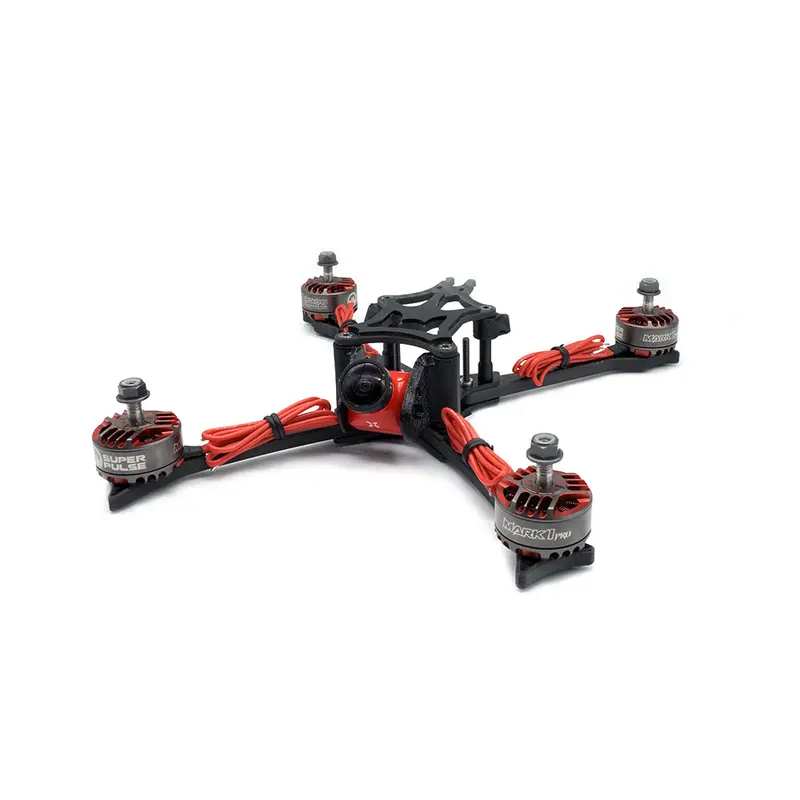

DLARC MARK BAYONET 230mm Wheelbase 6mm Arm 3K Carbon Fiber Frame Kit for RC Drone
Notice: ONLY include empty frame.
Motors, camera are NOT Include.
Specification:
Brand Name: DLARC
Model: Mark Bayonet
Item Name: 230mm Wheelbase Racing Frame Kit
Material: 3K Carbon Fiber
Wheelbase: 230mm
Arm Plate Thickness: 6mm
Other Plate Thickness: 2mm
Weight: 89g
Recommend Parts:
Flight Controller: 30.5×30.5mm F3/ F4/ F7 Flight Controller
Brushless ESC: 20-50A 4in1 ESC
Brushless Motor: 2306 Motor
FPV Camera: FOXEER MINI 21.8mm Width Camera
( Also compatible 19mm camera)
Propeller: 5.2 Inch max.
Lipo Battery: 3-4S Lipo
The following Parts are Compatible: ( Not Included)
Flight Controller: DALRC F722 DUAL Gyro F7 Flight Controller AIO OSD BEC
Omnibus F4 Flight Controller AIO OSD BEC & Current Sensor
Brushless ESC: DALRC Rocket 45A 3-6S Blheli_32 DSHOT1200 4 In 1 ESC
Racerstar REV35 35A BL_S 3-6S 4In1 ESC w/ Current Sensor
Brushless Motor: SP Mark 1 Pro 2306 2550KV 2750KV 3-5S Brushless Motor
PandaRC PM2306 2306 2450KV 2750KV 3-6S Brushless Motor
Propeller: 2 Pairs Gemfan Flash 5152 5.1×5.2×3 3-Blade CW CCW PC Propeller
10 Pairs LDARC 5045 5×4.5 5 Inch 3-Blade PC Propeller CW CCW
Package Included:
1x DLARC Mark Bayonet 230mm Frame Kit
2x 3D TPU Camera Mount Parts
1x Anti-slipping Pad for Battery
