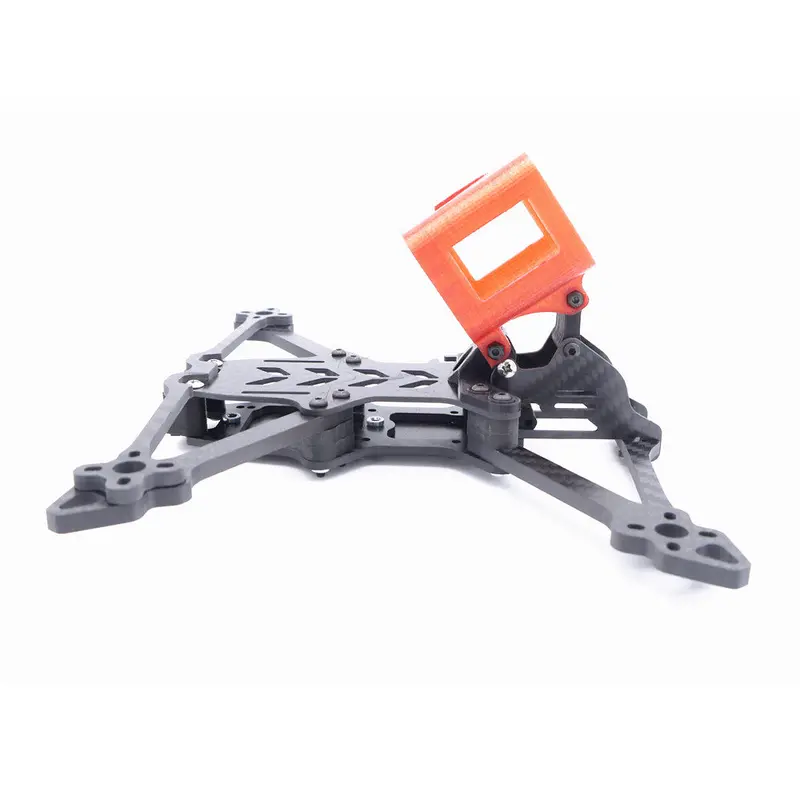

Smooth 5 FPV Racing Drone Frame Kit – 225mm Wheelbase, 5mm Arms, 3K Carbon Fiber, 5-Inch Build

Description

Smooth 5 225mm Wheelbase 5mm Arm 3K Carbon Fiber 5 Inch Frame Kit for RC Drone FPV Racing
Specification:
Model: Smooth 5
Item Name: 225mm Wheelbase 5 Inch Racing Frame Kit
Optional Version: Version A ( with Camera Mount for Go-pro Session/ Session 4/5 Camera)
Version B ( with Camera Mount for Go-Pro Hero 5/6/7 Camera)
Material: 3K Carbon Fiber
Wheelbase: 225mm
Arm Plate Thickness: 5mm
Bottom Plate Thickness: 3mm
Upper Plate Thickness: 2mm
Side Plate Thickness: 2mm
Front & Back Connecting Plate Thickness: 4mm
Frame Arm Spacer Plate Thickness: 5mm
Other Plate Thickness: 1.5mm
Weight: 156g ( Version A ); 154g ( Version B)
Camera Mounting Width: 19mm
Inner Standoff Height: 13mm
Recommend Parts:
Flight Controller: 30.5×30.5mm F3/ F4 Flight Controller
Brushless ESC: 20-40A ESC
Brushless Motor: 2204/2205 2207/2306/2405/2307/2308/2506 Motor ( 16x19mm)
Propeller: 5 Inch Propeller
Lipo Battery: 3-4S Lipo
The following Parts are Compatible: ( Not Included)
FC & ESC Stack: DYS 30.5×30.5mm F4 Pro FC & F30A 4in1 BL_S DShot600 ESC
Brushless Motor: BrotherHobby Returner R2 2205 230/2600/2800KV 3-4S Motor
Propeller: 10 Pairs LDARC 5×4.5×3 5045 5 Inch 3-Blade Propeller CW & CCW
FPV Camera: RunCam Micro Swift 2 600TVL 1/3 OSD CCD FPV Camera
Lipo Battery: AHTECH Infinity 4S 14.8V 1500mAh 85C Graphene LiPo Battery
Package Included: ( Not Included)
1x Smooth 5 225mm Frame Kit
