iFlight Succex-E F4 AIO Stack – 45A BLHeli_S 4-in-1 ESC (2S–6S), OSD, and 30.5×30.5mm Form Factor for Mini Drones

Description

User Manual, DOWNLOAD

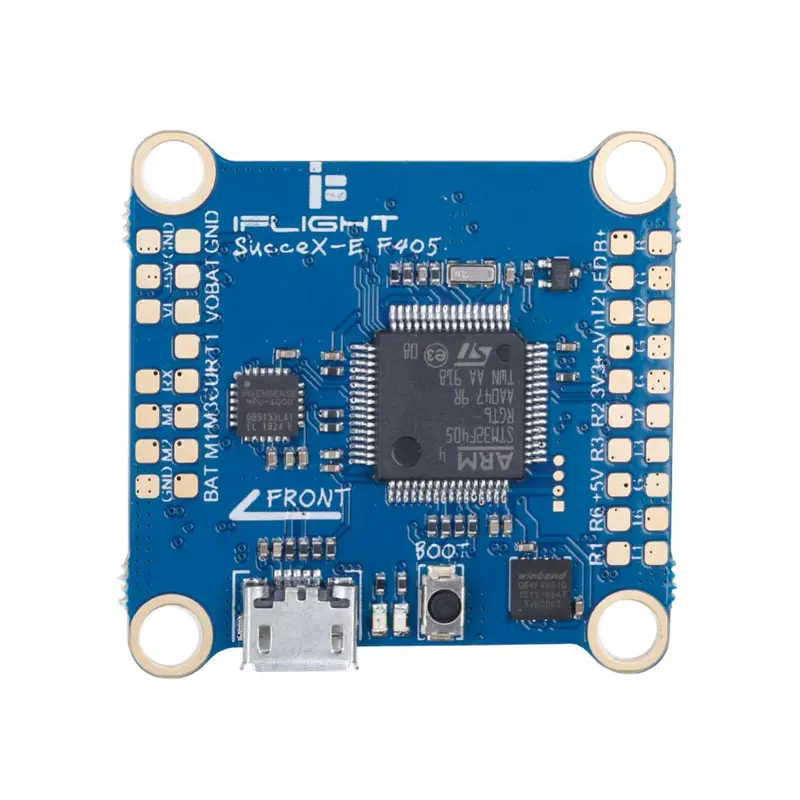

SucceX-E F4 Flight controller Specification:

MCU: STM32F405
IMU: MPU6000
OSD: AT7456E
Blackbox: 8MB
4X Uarts(1 2 3 6)
8X Dshot/Proshot/Oneshot output
8X individual ESC power/ signal pads
1X Group of Gnd/Vbat/M1/M2/M3/M4/Cur/TX
Smart audio & Tramp VTX protocol: YES(IRC Tramp)
WS2812 led Strip: YES
Baro: No
Beeper: YES
PDB Specifications
Input: 2-8S(50V)
BEC: 5V/3A cont
FC Firmware
Betaflight
Target: STM32F405
FC: IFRC/IFF4_TWIN_G(STM32F405)
Physical
Mounting: 30.5*30.5mm, φ4mm with Grommets φ3mm
Dimensions: 36*36mm
Weight: 7.6g

SucceX-E 45A 4in1 ESC Specification:
– Dimension: 40*43mm
– Mounting Holes: 30.5*30.5mm/Φ3mm
– Weight:14.4g
– Supports 2-6S Lipo input
– STM32F051 MCU, 48Mhz Runs BLHELI 32.X Firmware
– Current sensor: No
– BEC: No
– Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.
– Target: G-H-30 BLS 16.7

Package Included:
1 x  SucceX-E F4 Flight Controller
1 x 45A 4 in 1 Brushless ESC
