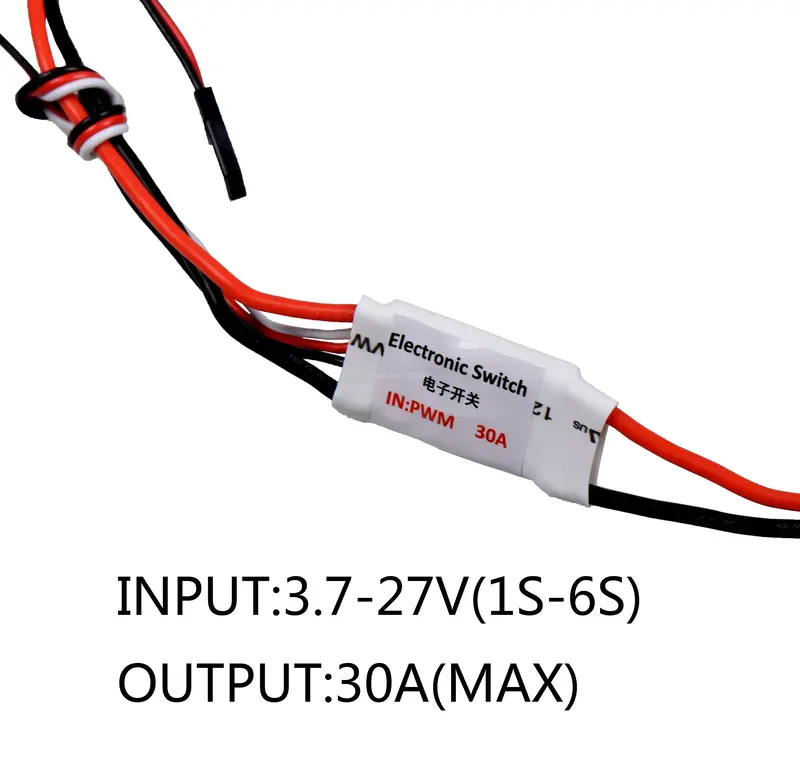

30A PWM Electronic Power Switch – 1–6S Input (3.7–27V), for FPV Models, LEDs, and Onboard Device Control

Description

Features:

•  Large current, high reliability, supports high voltage receivers, compact size, light weight.
• 18AWG silicon wires for power, super soft silicon wires for signal as well.

  Application examples:

• Remote control model car airplane Light bar Light on and off, easy to use – Insert switch channel Power switch for various power supply and controlled equipment (disconnected to positive pole, common negative) Electronic ignition, the output stage can be connected to the resistance heating wire, the electric start control after the stage to increase the relay, the water pump switch. The wire adopts high current 18AWG silica gel wire, the plug is JST head (input female, output male), the signal wire is also made of super soft silicone wire material, the total length of power cord is about 20CM, the switch weight is about 11G.



Specifications:

• – Max.current: 30A
• – 18AWG silicone cable
• – JST Plug, cable length 20cm
• – Weight: 11g
• – With LED indicator lamp
• – Suggest 2 section control, ON/OFF stroke takes half of travel for each. When the switch is turned on, there is an LED light indicating that the current cannot exceed the nominal value, otherwise the wire may be heated or burned.
• ​Input voltage:3.7V-27V
• This switch is not suitable for controlling led lights.​





1 x remote switch
