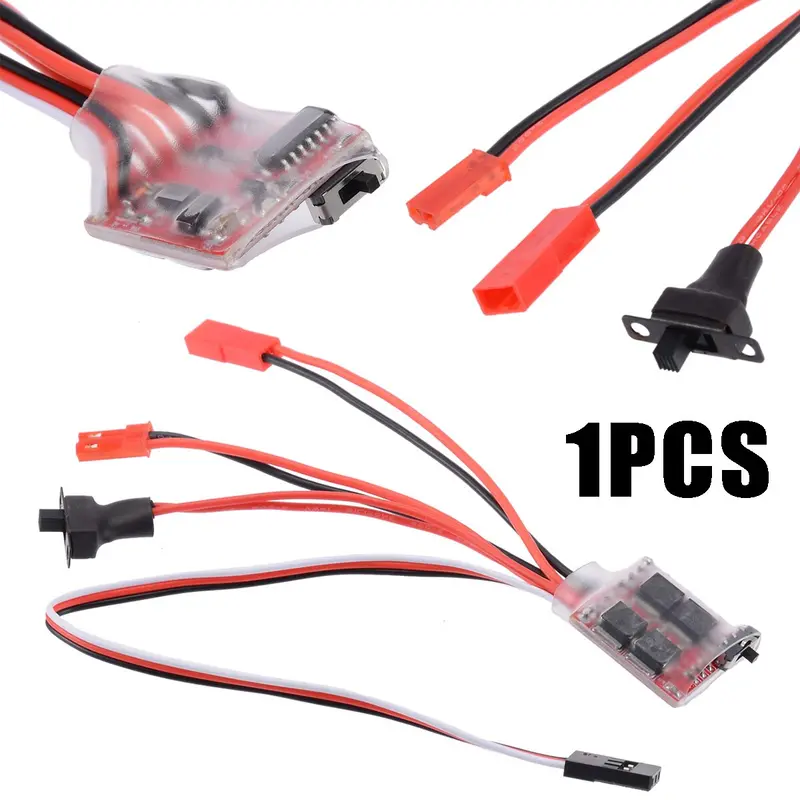

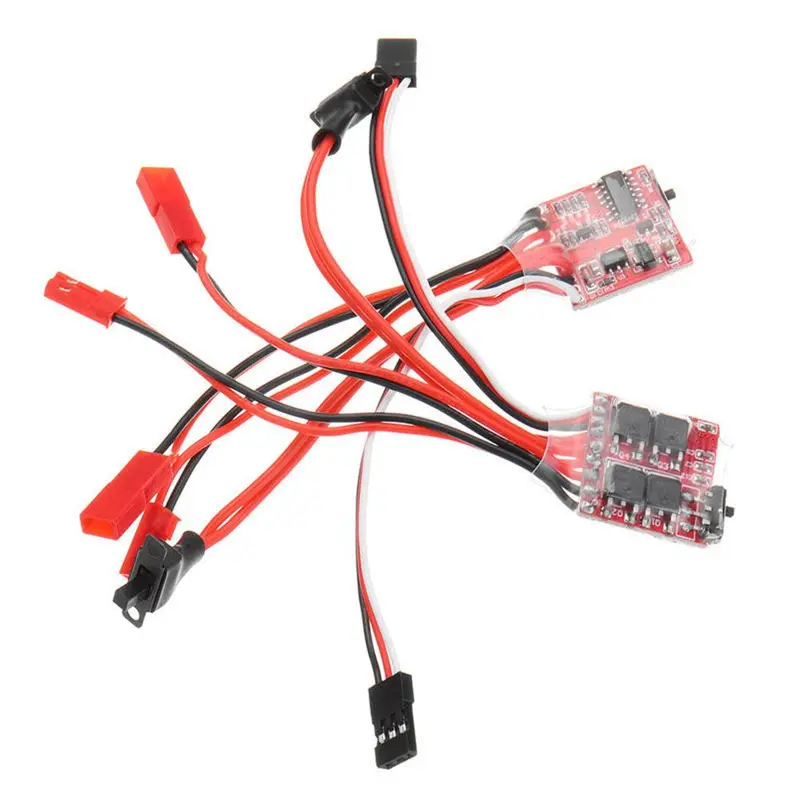

30A Mini Brushed ESC – 4–8V Input, Compact Speed Controller for Entry-Level RC Cars and Toys

Description

EL0002997

Specification:

• 100% brand new with high quality

• Material: Synthetic Material

• Size: Approx.25 x 23 x 5mm/0.98 x 0.91 x 0.2″

• Weight: Aprox.13g (with line)

• Quantity: 1Pc

• Current Parameters:

• Forward 30A

• Instantaneous peak 40A

• Back 20A

• Brake 40A

• UBEC Output: Voltage 5.7V, Current 1A (Supply receiver, servo power)

• Voltage support: 4 ~ 8v can be directly on the 2s lithium (7.4V)

• Function: forward, reverse, brake

• Easy to install, durable.

• High-quality metal casting.

• Lightweight, small size, easy to carry.

Tips:

• JST header by default, with a switch.

• Wiring:

• Battery (must dividends positive black and negative)

• Motor (regardless of positive and negative)

• Black red and white third-line -> receiver CH2 (usually black by the outside, white by stickers)

Adjustment:

• ESC is set in the middle of the range, the new control generally need to fine tune the throttle.

• The ESC does not light, is the median, throttle trim is controlled TH TRIM.

Package Included:

• 1 x Brushed ESC

Note:

• Please allow minor error due to manual measurement.

• The colors may be a little difference for the different monitor display.
