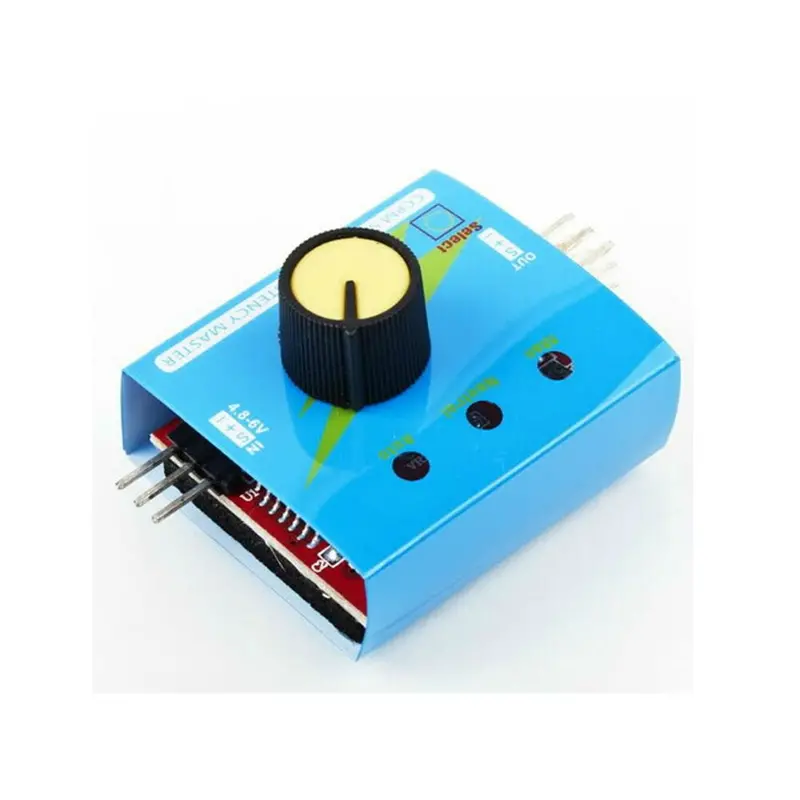

3-Channel Multi-Servo Tester – Precision Tool for ESC Calibration, CCPM Setup & Speed Consistency Checks

Description

CCPM Servo Consistency Master / Servo tester
The device also can be used as a signal generator for electric speed controller (ESC), then you can test your motor system without using a transmitter and receiver.
There are 3 modes to check servos or ESC:
Manual mode: turn the knob with different speed, check the reaction time.
Neutral mode: make the servo go back to the neutral point.
Automatic “window wiper” mode: make the servo swing like a window wipers in the biggest angle.
It can connect 1-3 servos simultaneously and test such as 1-3 servos consistency and so on.
You can also connect 1-3 ESC to test and compare their reaction time respectively.
It can connect 3 servos of the CCPM helicopters and select servos.
It can also connect the servo of airplanes install the steering-box and adjust planes by using such as the neutral mode and so on.
Voltage consumption: DC4.8-6V
Size: 48 x 42 x 17mm
Weight: 31.5 g
Package Content:
100% Brand New
1x Servo tester
