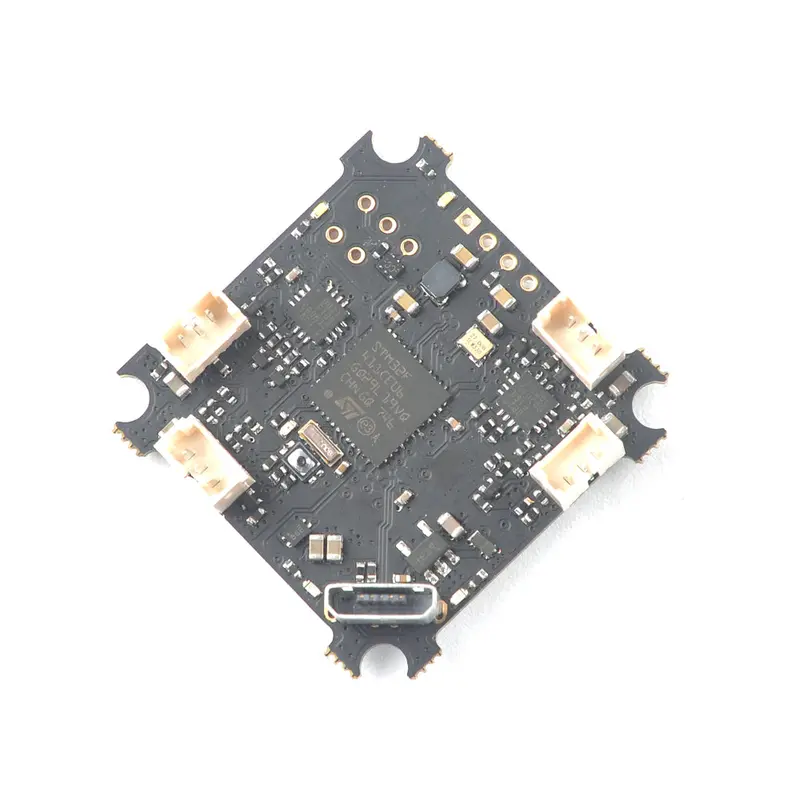

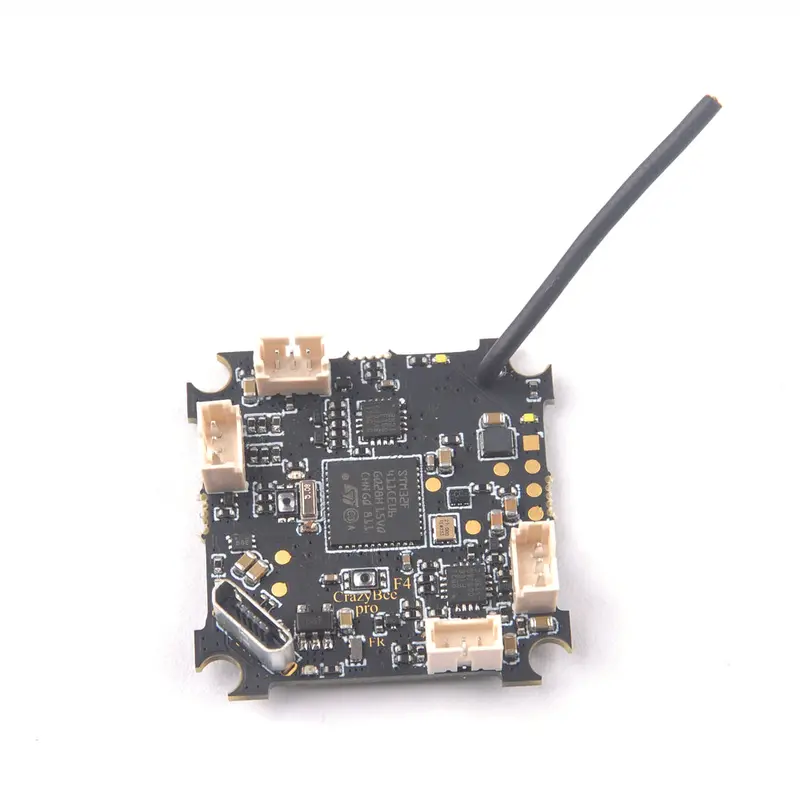

Uruav CrazyBee F4 Pro V2 Flight Controller – FrSky/Flysky/DSM2/DSMX Compatible for UR85/UR85HD Whoop Drones

Description

URUAV Crazybee F4 PRO V2 Flight Controller Compatible Frsky/ Flysky/ DSM2/DSMX Receiver for UR85/UR85HD Whoop FPV Racing Drone
Specification:
Brand name: URUAV
Item name: Crazybee F4 PRO V2 Flight Controller
(Frsky version) CRAZYBEE F4FR PRO V2.0 Firmware target: CrazybeeF4FR
(Flysky version) CRAZYBEE F4FS PRO V2.0 Firmware target: CrazybeeF4FS
(DSM2/DSMX version) CRAZYBEE F4DX PRO V2.0 Firmware target: CrazybeeF4DX
(No RX version) CRAZYBEE F4 PRO V2.0 Firmware target: CrazybeeF4DX
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU-6000(SPI connection)
Board size: 28.5 * 28.5MM
Power supply: 1-3S battery input (DC 3.5-13V)
Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
Frsky version Built-in SPI Frsky receiver with telemetry(D8/D16 switchable)
Flysky version Built-in SPI Flysky receiver with telemetry(AFHDS/AFHDS2A switchable)
DSM2/X Version built-in Serial-based DSM2/DSMX compatible satellite receiver
No RX version need to add external Receiver
Built-in Betaflight OSD(SPI Control)
Built-in Current meter Max 28A
Current meter scale set to 1175
Built-in 5V 1A Buck / Boost with LC filter
Built-in voltage detection
Package Included:
1 x Crazybee F4 PRO V2 Flight Controller
