Flysky FS-i6X 10-Channel 2.4GHz Transmitter – AFHDS 2A Protocol with FS-IA10B Receiver for FPV Drones

Description

Flysky FS-i6X 10CH 2.4GHz AFHDS 2A RC Transmitter With FS-iA10B Receiver
Description:
Brand Name:FlySky
FS-i6X Specifications:

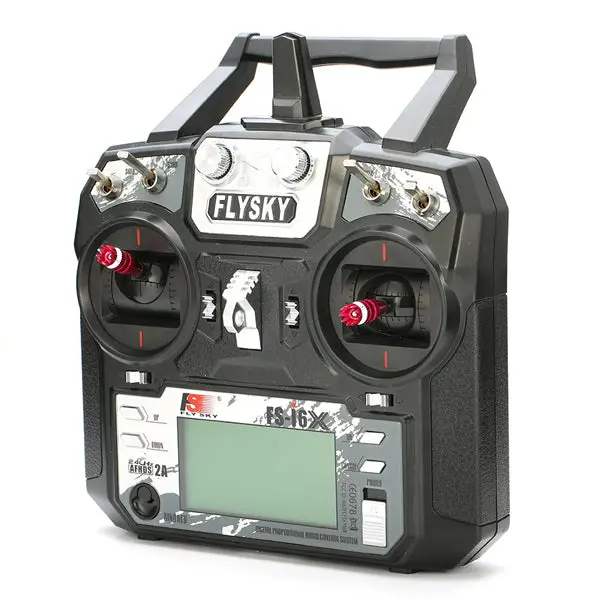

Item: FS-i6X RC Transmitter
Channel: 6-10 (Default 6) Model Type: Fixed-Wing/Glider/Helicopter RF Range: 2.408-2.475GHz RF Power: < 20dBm RF Channel: 135 Bandwidth: 500KHz 2.4GHz System: AFHDS 2A / AFDHS Modulation Type: GFSK Stick Resolution 4096 Low Voltage Warning: < 4.2V DSC port: PS/2 Port PPM Chargeable: No Antenna Length: 26mm (Dual Antenna) Weight: 392g Power: 6V DC 1.5AA*4 Display: STNTransflective Display, LCD 128×64 Lattice, VA 73x39mm, LCD with white backlight Size: 174x89x190mm On-line Update: Yes Color: Black Certificate: CE0678, FCC ID: N4ZFLYSKYI6X
FS-iA10B Specifications:
Item: FS-iA10B Receiver
Channels: 10 Model Type: Fixed-Wing/Glider/Helicopter RF Range: 2.4055-2.475GHz RF Channel: 140 RF Receiver Sensitivity: -105dBm Bandwidth: 500KHz 2.4GHz System: AFHDS 2A Modulation Type: GFSK Power: 4.0-6.5V DC Antenna Length: 26mm (Dual Antenna) Weight: 17.6g Size: 50.6*34.9*14.9mm i-BUS Port: Yes Data Acquisition Port: Yes Color: Black Certificate: CE0678, FCC
Features: The AFHDS 2A (Automatic Frequency Hopping Digital System Second Generation) developed and petented by FLYSKY is specialy developed for all radio control models. Offering superior protection against interference while maintaining lower power consumption and high reliable receiver senstivity, FLYSKY’s AFHDS technology is considered to be one of the leaders in the RC market today.   Bidirectional Communication Capable of sending and receiving data, each transmitter is capable of receiving data from temperature, altitude and many other types of sensors, servo calibration and i-BUS Support.   Multi-channel Hopping Frequency This system bandwidth ranges from 2.408GHz to 2.475GHz. This is divided in 135 channels. Each transmitter hops between 16 channels (32 for Japanese and Korean version) in order to reduce interference from other transmitters.   Omni-directional Gain Antenna The high efficiency Omni-directional high gain antenna cuts down on interference, while using less power and maintaining a strong reliable connection.   Unique ID Recgnition System Each transmitter and receiver has it’s own unique ID. Once the transmitter and receiver have been paired, they will only communicate with each other, preventing other systems accidentally connecting to or interfering with the systems operation.   Low Power Consumption The system is built using highly sensitive low power consumption components, maintaining high receiver sensitivity, while consuming as little as one tenth the power of a standard FM system, dramatically extending battery life.
FS-i6X Transmitter User Manual, Click Here
If you want the FS-i6X Transmitter with X6B receiver, please Click Here
Package Included:
1X Flysky FS-i6X 10CH 2.4GHz AFHDS 2A RC Transmitter
1X FS-iA10B Receiver
,,,,,,,,,,
