u-blox NEO-M8N GPS Module – Enclosed High-Sensitivity GNSS Receiver for APM, Pixhawk 2.4.8 & Other Autopilot Systems

Description

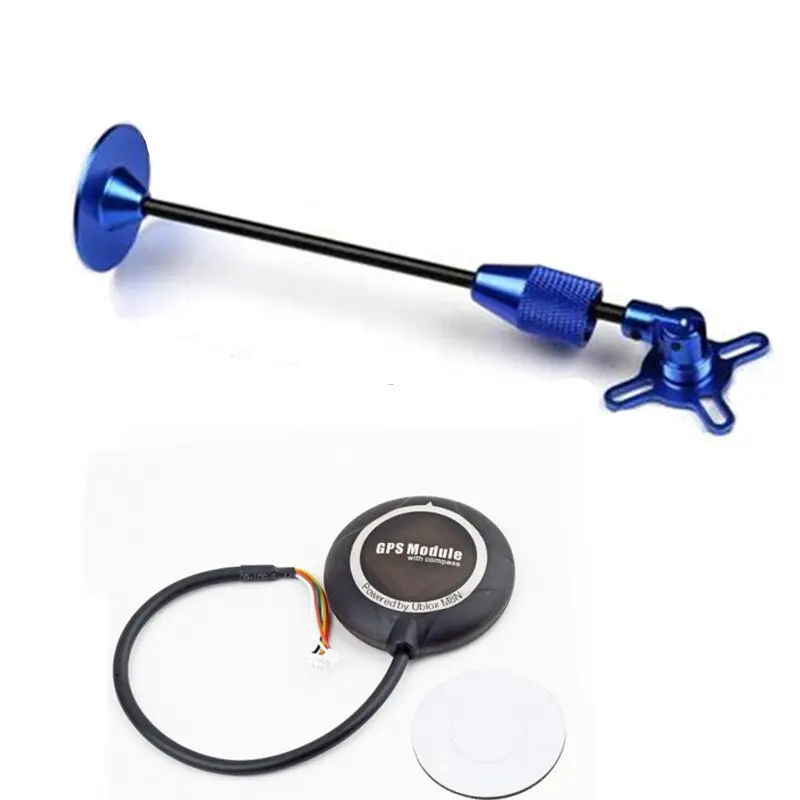

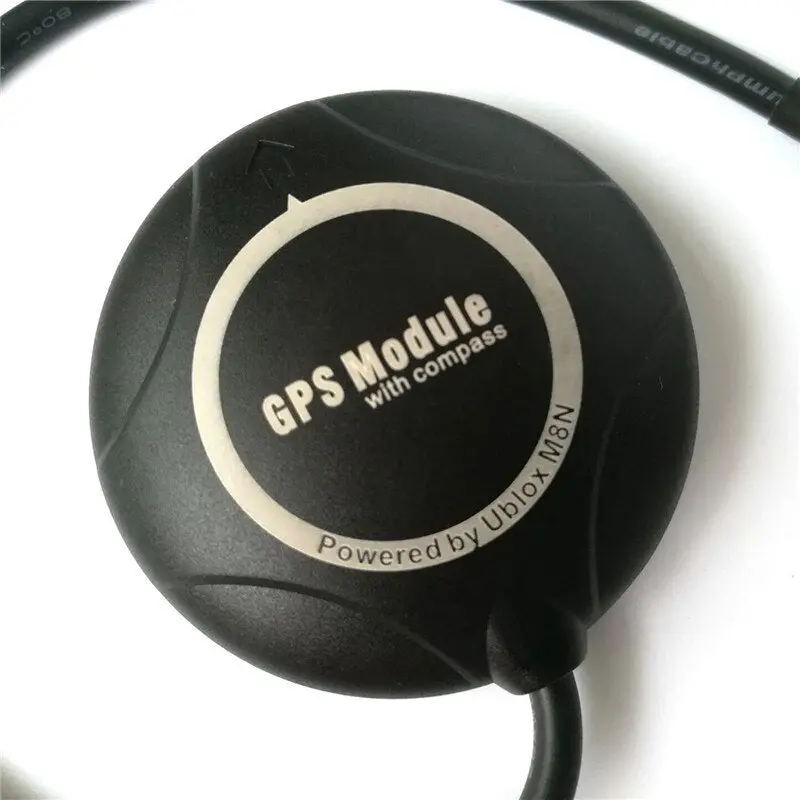

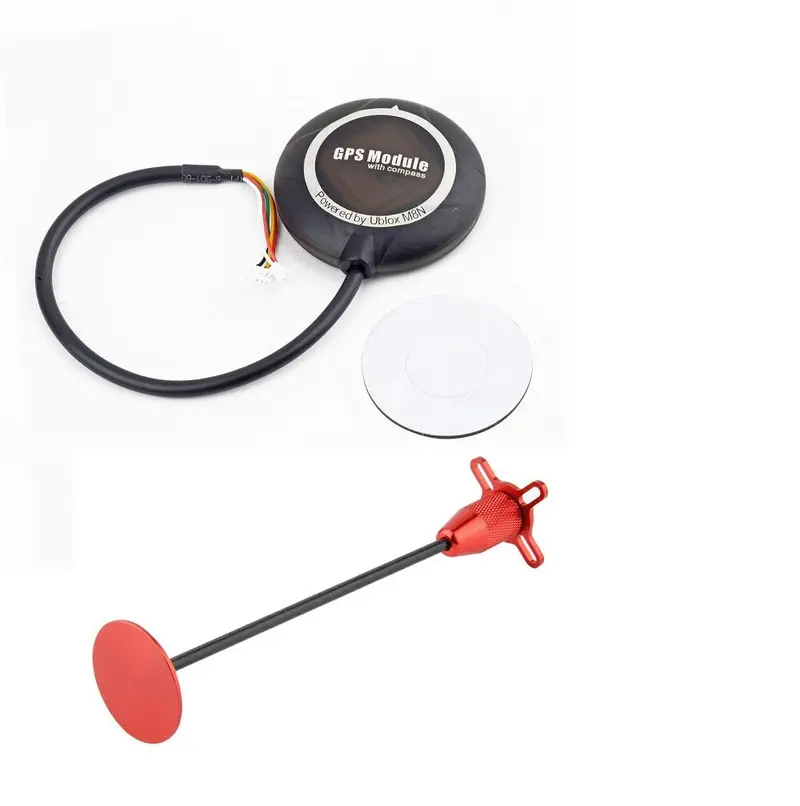

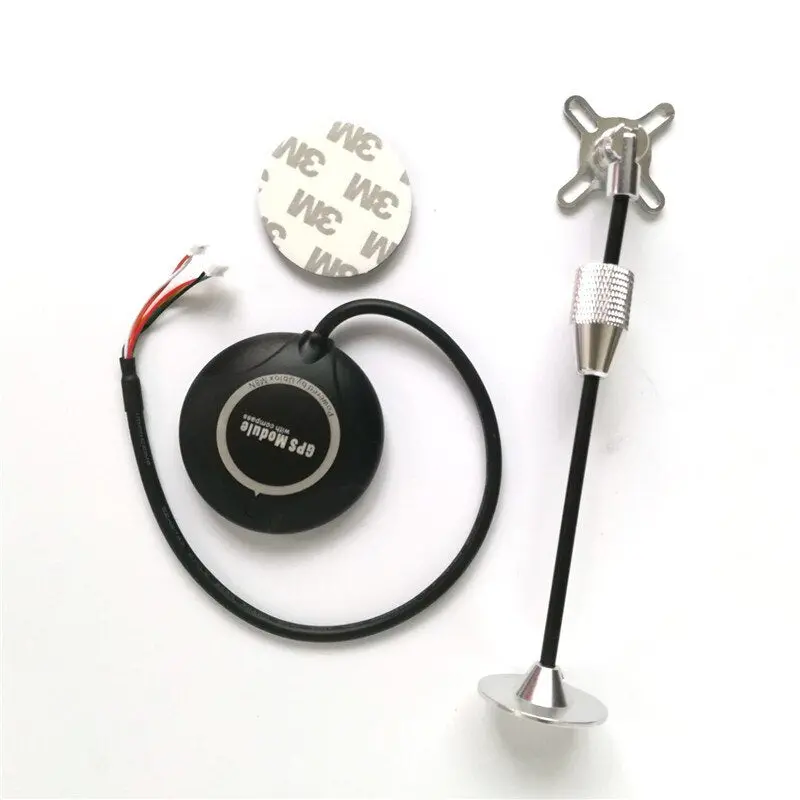

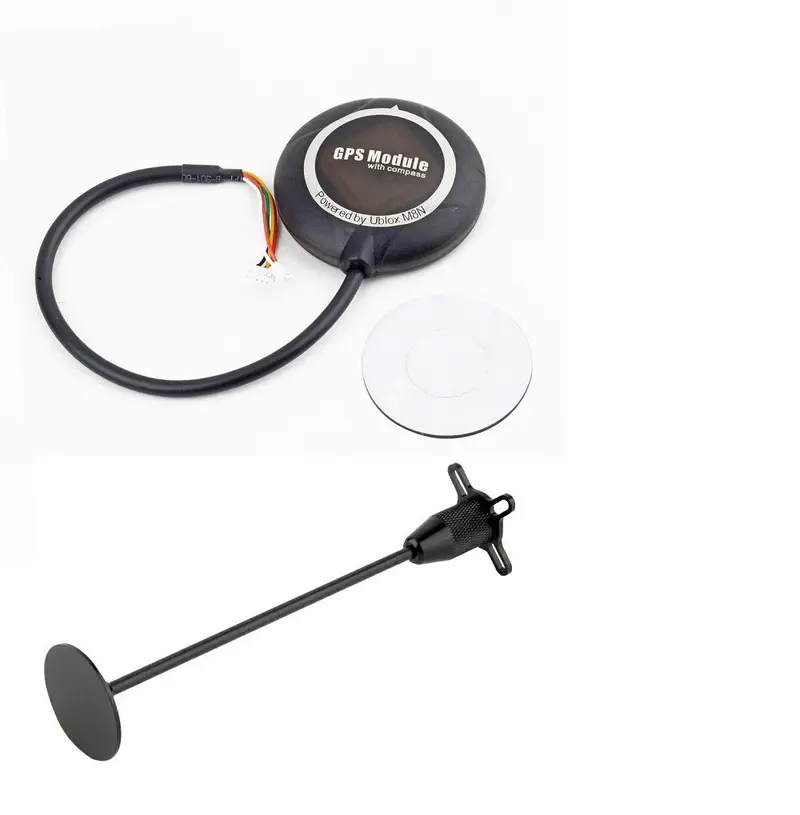

NEO-M8N GPS Module with Shell & Stand for  APM 2.6 Compatible
A new generation Ublox GPS NEO-M8N,with low power consumption and high precision, the ultimate accuracy is 0.6 meters, actually almost 0.9 meters, greater than the previous generation NEO-7N 1.4-1.6 meters accuracy,support GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1 protocol and mode or more.
Compatible for PX4 Pixhawk flight controller,package with a extra 5pins port for the APM 2.6,you can change by yourself.
GPS Chip Parameters:
Receiver type 72-channel u-blox M8 engine
GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1
SBAS L1 C/A: WAAS, EGNOS, MSAS
Galileo-ready E1B/C (NEO-M8N)
Nav. update rate1 Single GNSS: up to 18 HZ
Concurrent GNSS: up to 10 Hz
Position accuracy2 2.0 m CEP
Acquisition2 Cold starts: 26 s
Aided starts: 2 s
Reacquisition: 1.5 s
Sensitivity2 Tracking & Nav: –167 dBm
Cold starts: –148 dBm
Hot starts: –156 dBm
Assistance AssistNow GNSS Online
AssistNow GNSS Offline (up to 35 days)3
AssistNow Autonomous (up to 6 days)
OMA SUPL & 3GPP compliant
Oscillator TCXO (NEO-M8N/Q),
Crystal (NEO-M8M)
RTC crystal Built-In
Noise figure On-chip LNA (NEO-M8M). Extra LNA for
lowest noise figure (NEO-M8N/Q)
Anti jamming Active CW detection and removal. Extra
onboard SAW band pass filter (NEO-M8N/Q)
Memory ROM (NEO-M8M/Q) or Flash (NEO-M8N)
Supported antennas Active and passive
Odometer Travelled distance
Data-logger For position, velocity, and time (NEO-M8N)
Operating temp. –40° C to 85° C
Storage temp. –40° C to 85° C (NEO-M8N/Q)
–40° C to 105° C (NEO-M8M)
RoHS compliant (lead-free)
Qualification according to ISO 16750
Manufactured and fully tested in ISO/TS 16949 certified production sites
Uses u-blox M8 chips qualified according to AEC-Q100
Supply voltage 1.65 V to 3.6 V (NEO-M8M)
2.7 V to 3.6 V (NEO-M8N/Q)
Power consumption4 23 mA @ 3.0 V (continuous)
5 mA @ 3.0 V Power Save Mode
(1 Hz, GPS mode only)
Backup Supply 1.4 to 3.6 V
NEO-M8N-0 u-blox M8 Concurrent GNSS LCC Module,
TCXO, flash, SAW, LNA,
Timepulse Configurable 0.25 Hz to 10 MHz
Package included :

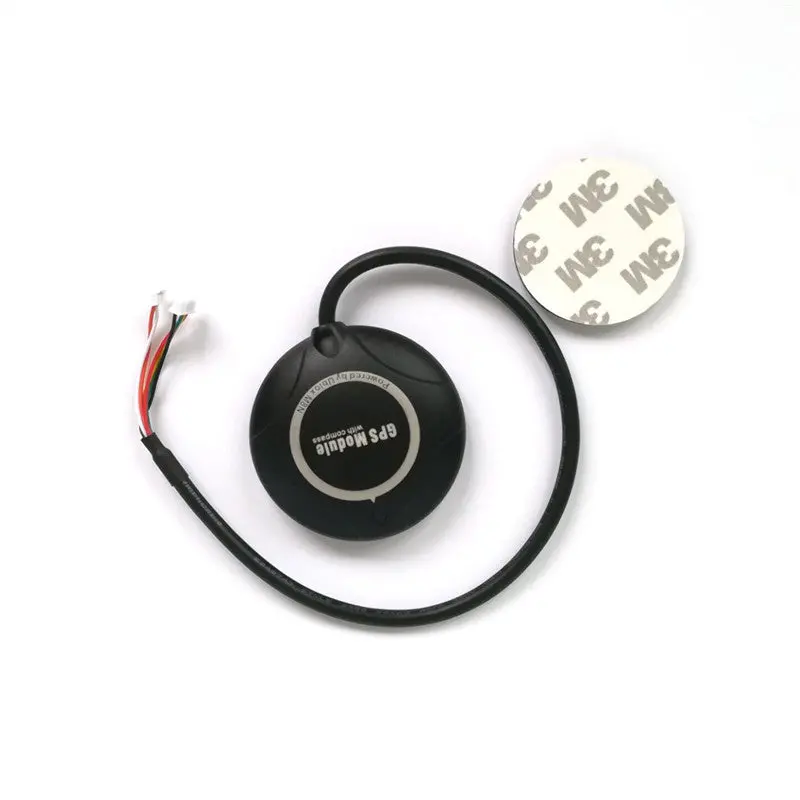

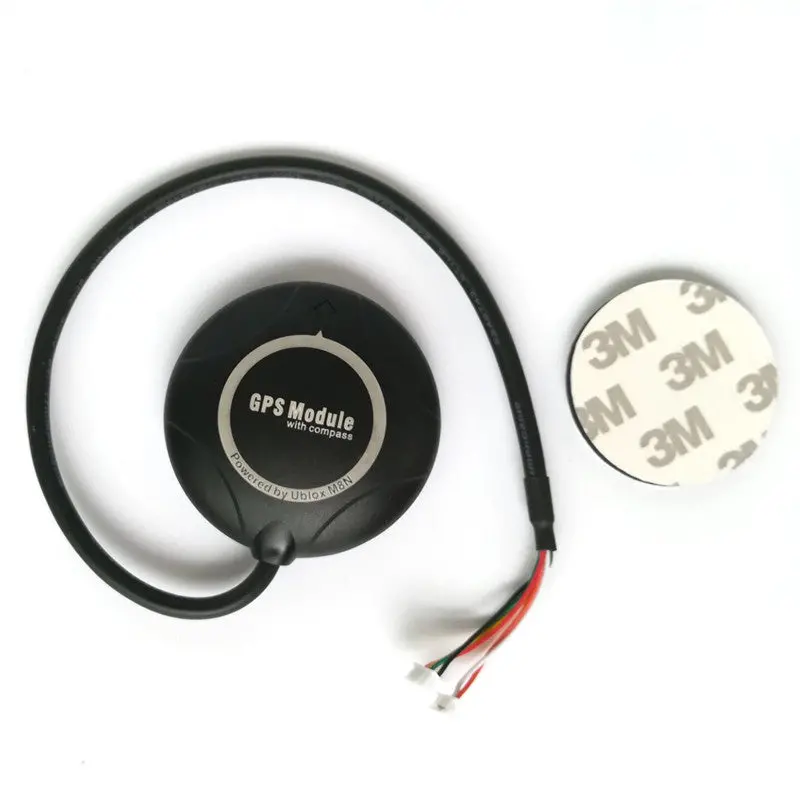

1 x NEO M8N GPS Module
1 x GPS holder (as your choice)
​
NOTE:
1.This item/product is for APM flight controllers, if you want GPS for Pixhaw or PX4, plz inform us.
2. The firmware of GPS is fixed , do not need to revise it; You can use it directly after receiving the GPS.
