Description

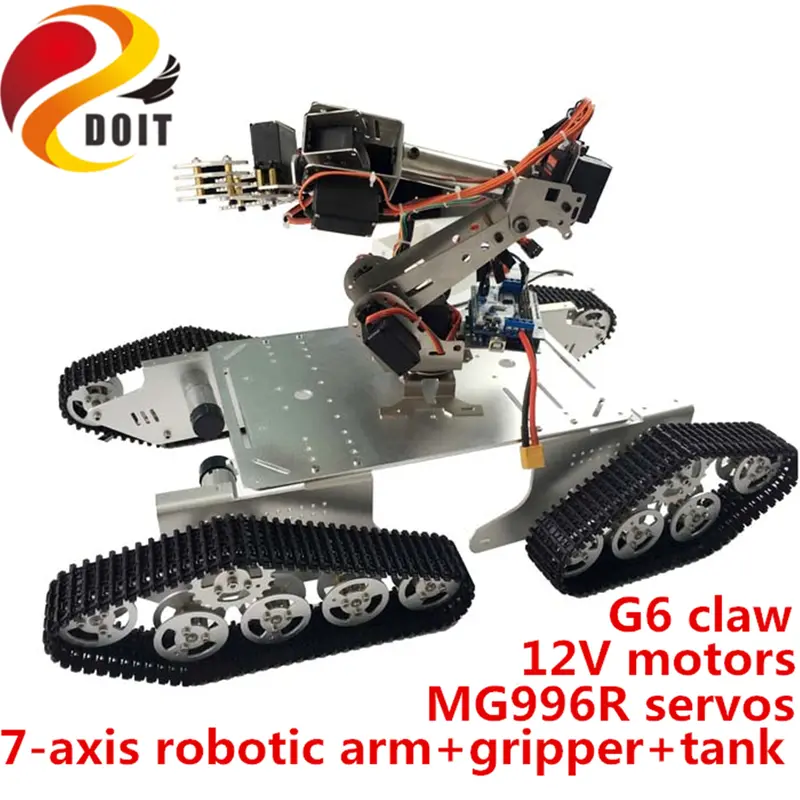

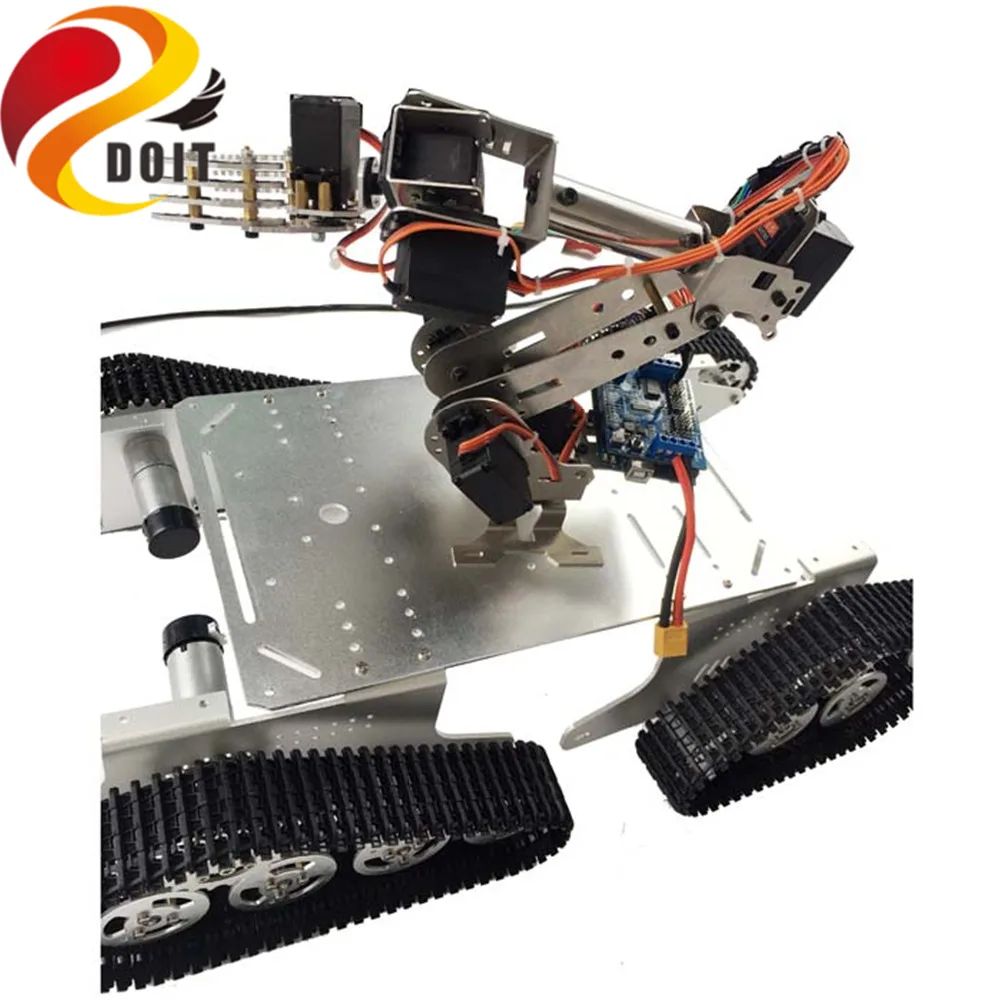

Tank chassis parameters:
- Name: T900 intelligent tank chassis
- Material: aluminum alloy
- Surface treatment: sandblasting oxidation
- Color: silver
- Track: engineering plastics

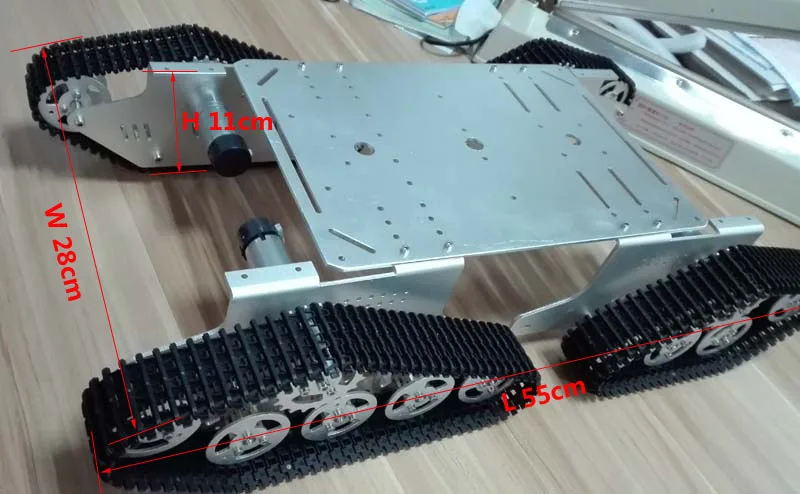

- Size: about 550*280*110mm (length * width * height)
- Weight: 3.8kg

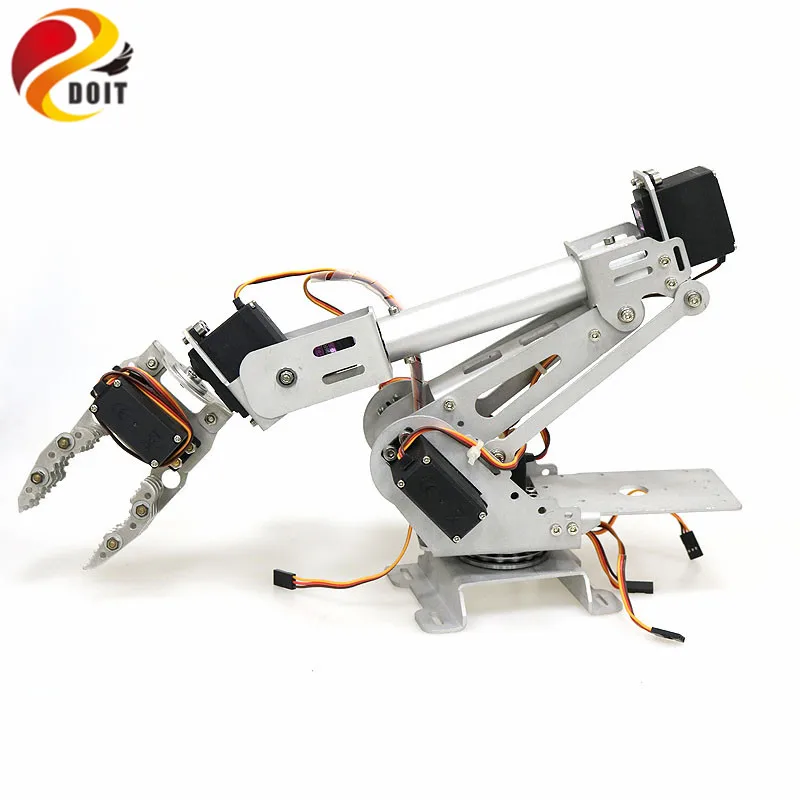

7-axis robotic arm parameters:
- Full metal robotic arm
- Servo: MG996R metal servo
- Shipment will send the latest version of the robot arm
G6 gripper parameters:
- Material: hard aluminum alloy
- Weight: about 40g
- Maximum angular separation: 86mm
- Overall length: 83mm (the overall longest length when the paw is closed)
- Overall width ①:150mm (maximum overall width when the paw is open)
- Overall width ②:55mm (maximum overall width when the paw is closed)
- Overall thickness: 54mm (maximum overall thickness with servo paws)
MG996R servo parameters:
- Name: MG996R
- Net weight: 55 g
- Size: 40.7*19.7*42.9 mm
- Pulling force: 9.4 kg/cm (4.8 V), 11 kg/cm (6 V)
- Reaction rate: 0.17 sec / 60 degree (4.8 V ), 0.14 sec / 60 degree (6 V)
- Working voltage: 4.8-7.2 V
- Working temperature: 0°C-55°C
- Gear form: metal gear
- Working dead zone: 5 us (microseconds)
Shipping list:
- 1 × T900 tank chassis
- 4 × 12V 300rpm with encoder motor
- 18 × Metal bearing wheel
- 4 × Metal drive wheel
- 1 × 7-axis robotic arm bracket kit
- 1 × G6 gripper
- 7 × MG996R servo
Note:
- Product does not contain battery and control kit.
- In order to facilitate transportation, the product is not assembled. But it is very easy to install.
- More documents can be downloaded at wiki.doit.am.
