Description

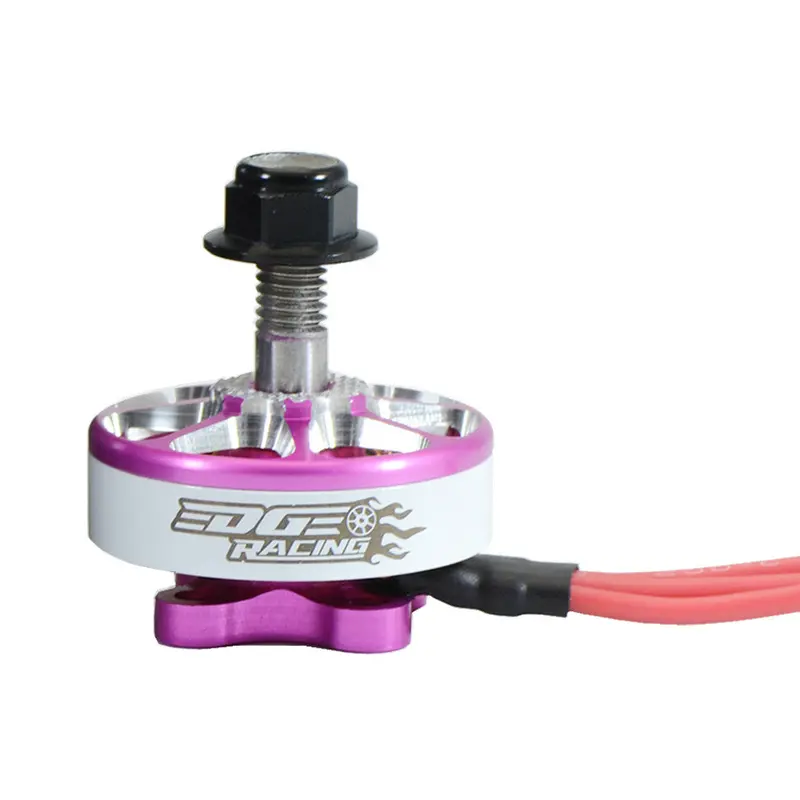

Sunnysky E-R2204 2204 2300KV 3-4S Brushless Motor for RC Drone FPV Racing
Notice: All motors you get are CW Screw Thread (Sliver Nut) .
The word ” CCW” on the motor points at the Motor Rotation.
Specification:
Brand Name: Sunnysky
Model: E-R2204
Item Name: 2204 2300KV 3-4S Brushless Motor
KV: 2300KV
Version: CW Screw Thead
CCW Rotation (Sliver Nut)
Stator Diameter: 22mm
Stator Thickness: 4mm
No. of Stator Arms: 12
No. of Rotor Poles: 14
Rotor Diameter: 27.4mm
Body Length: 16.5mm
Max. Lipo Cell: 3-4S
No-Load Current: 1A@10V
Motor Resistance: 73mΩ
Max. Con. Current: 25A/20s
Max. Con. Power: 420W
Weight: 27g
Recommend ESC: 25-30A
Recommend Propeller: 5040 /5045 3-Blade Prop
Testing Table: ( More Testing Data )
| Propeller | Voltage (V) | Current (A) | Thrust (g) | Power (W) | Efficiency (g/W) | RPM | Temp. 100% Throttle |
| 5040 3-Blade | 14.8 | 1 | 100 | 15 | 6.76 | 8594 | 63℃ 10S. HOT |
| 2.6 | 200 | 38 | 5.20 | 12195 | |||
| 4.6 | 300 | 68 | 4.41 | 14909 | |||
| 7 | 400 | 104 | 3.86 | 17350 | |||
| 9.8 | 500 | 145 | 3.45 | 19520 | |||
| 12.8 | 600 | 189 | 3.17 | 21421 | |||
| 15.9 | 700 | 235 | 2.97 | 23140 | |||
| 19.8 | 800 | 293 | 2.73 | 24780 | |||
| 23.6 | 908 | 349 | 2.60 | 26181 |
Package Included:
1x Sunnysky E-R2204 2300KV Motor
1x Motor Nut
