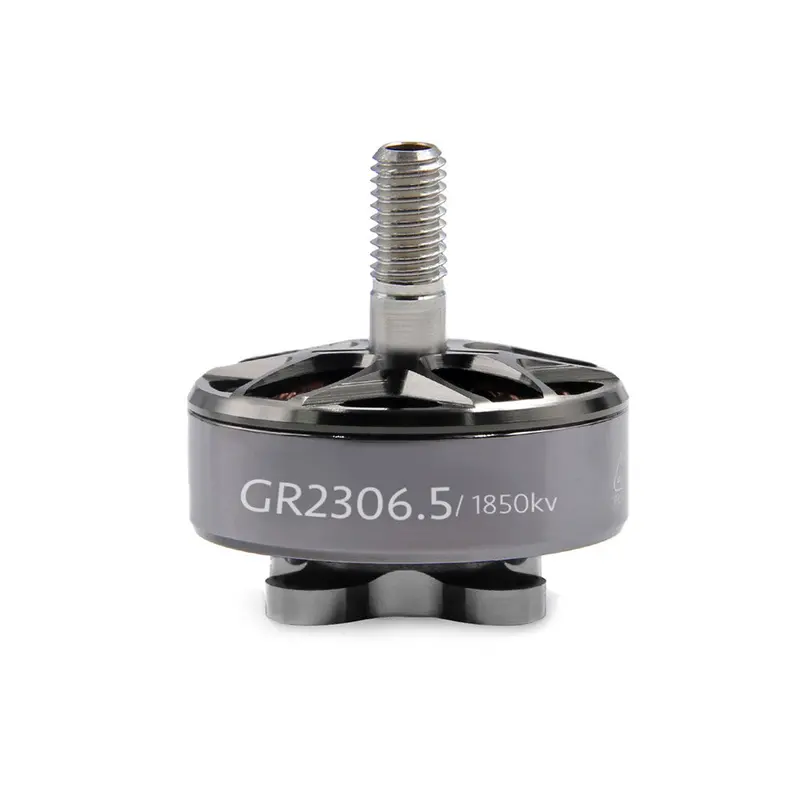

GEPRC GR2306.5 Brushless Motor (2306.5 Size, Multiple KV Options) for 4S/6S FPV Racing

Description

Geprc GR2306.5 2306.5 1350KV 1850KV 6S 2450KV 4S Brushless Motor for RC Drone FPV Racing
Specification:
Brand Name: Geprc
Model: GR2306.5
Item Name: 2306.5 1350KV 1850KV 6S 2450KV 4S Brushless Motor
KV: 1350KV / 1850KV / 2450KV (Optional)
Input Voltage: 5-6S@1350KV & 1850KV ;  4-5S@2450KV
Quantity: One PC
Version: CW Screw Thread Configuration: 12N14P Stator Diamter: 23mm Stator Length: 6.5mm Shaft Diameter: 5mm Motor (Dimension: Φ28.2*29.2mm (Dia.*Len)) Idle current(10)@10V: 1.95A Max Continuous (Power (15S): 1000W Internal Resistance:38mΩ Max Current(15S): 49A Effciency Current:(3-7A)>85% Rotor: N52H arc magnets Bearings:JAPAN ISC Base casing: Al 7075 Wire AWG: 20AWG Weight(g):31g (not include wire)
Pacakge Included:
1x GEPRC GR2306.5 Motor 1x GEPRC M5 Aluminum Lock Nut 4x M3x7 Button head screws 4x M3x8 Button head screws
