Description
Specifications:
Brand: Skystars

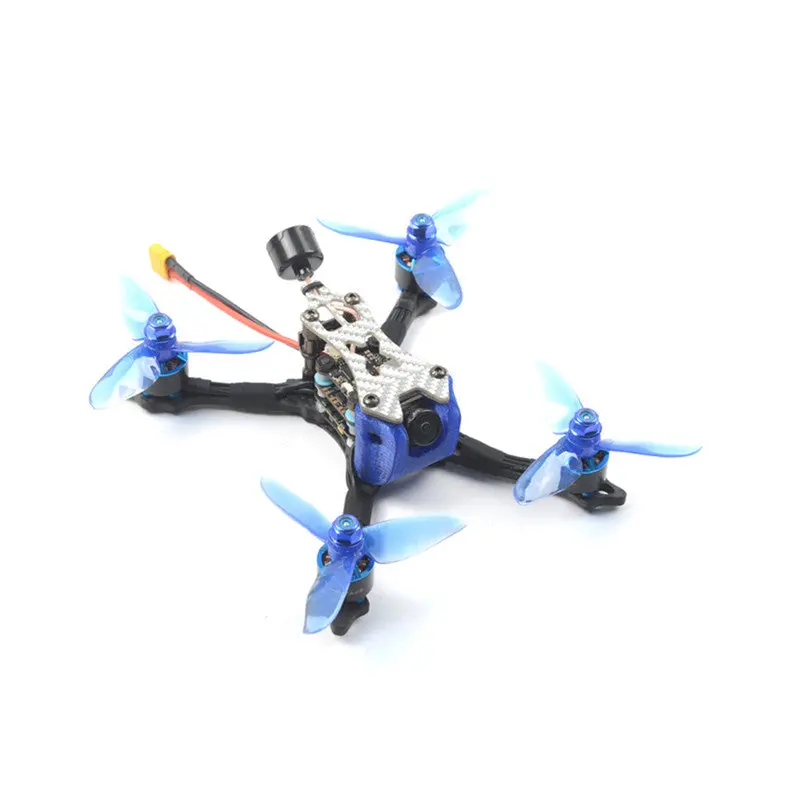

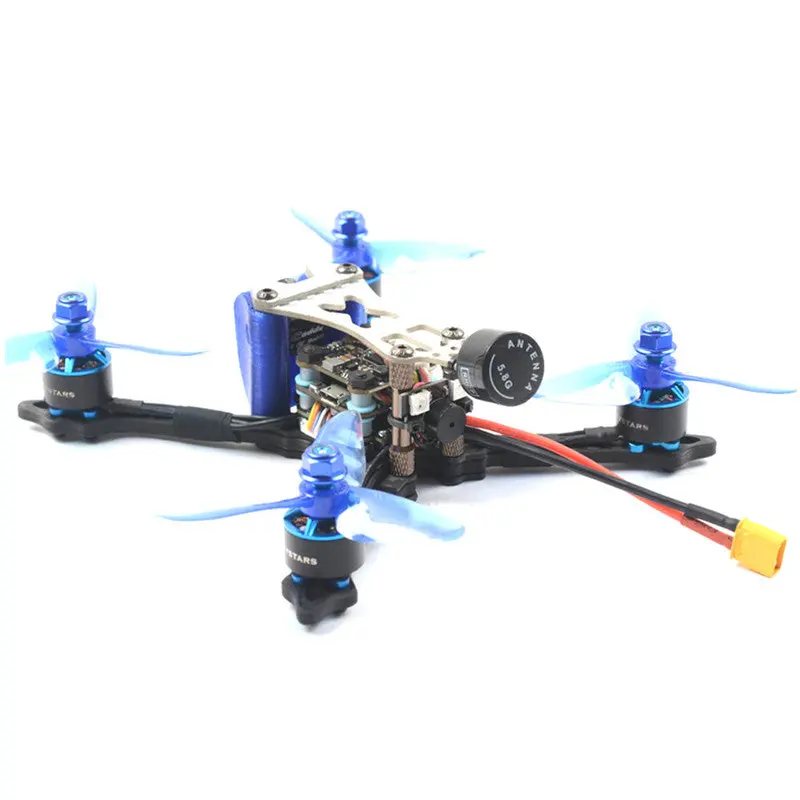

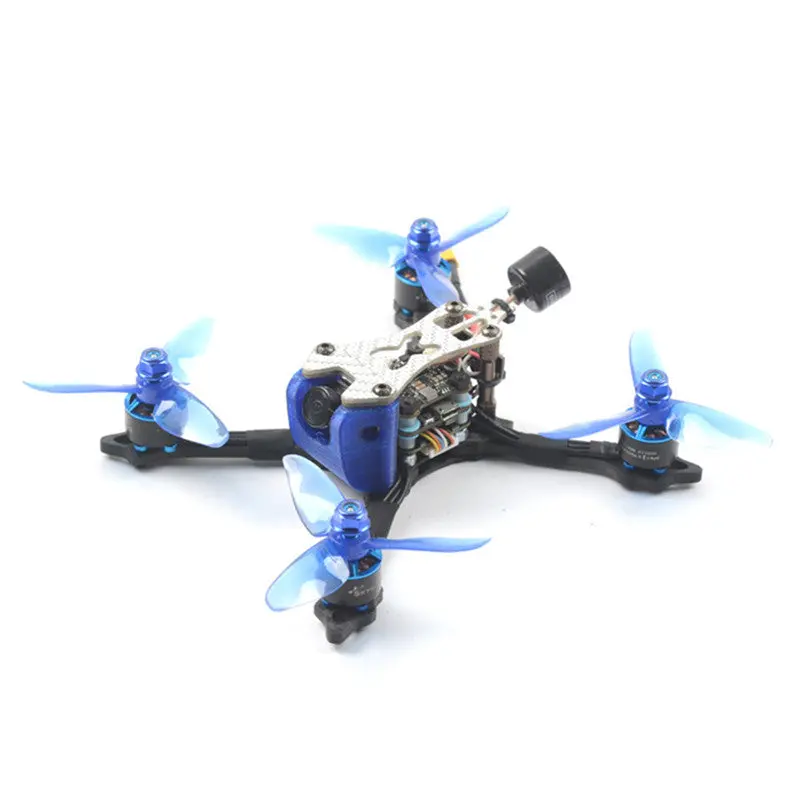

Item Name: Ratel 140X 2-4S RC Drone
| Frame Kit | Frame Kit: Name: Skystars Ratel 140X Wheelbase: 145mm Arm Plate Thickness: 4mm TOP&Bottom Plate Thickness: 1.5mm Material: 3k Carbon Fiber & TPU Screw: TAIWAN YFS BRAND SCREW 12.9 level screw Weight: 49g |
| Flight Control | Micro F4 Flight Control Board ( D-Shot Version): MPU: MPU6000-SPI CPU: STM32F405RGT6, dual 8K. Built-in Betaflight OSD to adjust PID BEC Output: 5V@3A Size: 25x25mm board, 2mm mounting holes (M2) Weight:2.3g Support Subs/PPM/DSMX receiver |
| ESC(2-4S) | 25A 2-4S Blheli_32 4 in 1 ESC: Input Voltage: 2-4S Lipo battery Constant Current: 25A Peak Current: 30A BEC Ouput: NO Firmware: BLheli_32 Size: 27x27mm (main board) 27x31mm ( including pad) Installing Hole: 20x20mm, M2 Weight: 4g CPU: 32-bit ARM Cortex MCU@48mHZ MOS Tube: TOP QUALITY MOSFET Support Damped Mode, Oneshot125, Oneshot42, Multishot, Dshot150/300/600/1200, forward and reverse |
| Transmitter | Mini FPV Transmitter: Output power: 25mW/100mW/200mW switchable Control mode:button OR Channel changes and Pitmode setting through PWM BAT: 7-26V,BEC 5V-1A 200mA—-200mW Video system: NTSC/PAL Antenna: RPSMA Frequency: 5.8GHz 5 bands 48channels, with Raceband: 5362-5865 MHZ Size: 24*24mm(L*W),Hole:20*20mm Weight: 2.4g |
| Motor(2-4S) | ST1408 KV 3800, race edition Weight: 17g Size:17X30mm *NMB bearing of high RPM for steady operation *Arc magnets. *Ultra light |
| Camera | Runcam nano 2 Image Sensor: 1/3″ CMOS Horizontal Resolution: 700TVL Lens: 2.1mm(M8) FOV 155° Signal System: NTSC / PAL S/N Ratio: >50dB Electronic Shutter Speed: Auto Auto Gain Control (AGC): Auto Min. Illumination: 0.01Lux@1.2F D-WDR: Auto Day/Night: Color Power: DC 3-5.5V Current: 110mA@5V Housing Material: ABS Net Weight: 3.2g Dimensions: L14mm*W14mm*H16mm |
| Parts | DALPROP T3056C 3-blade Propeller*8 |
| WS2812 Colorful LED w/ 5V Active Alarm Buzzer Support Cleanflight Betaflight*1 | |
| Buckle Battery Strap*1 | |
| Non-slip Battery Mat *1 | |
| Screw*12 | |
| Antenna | RHCP 5.8G 2.5dBi Super Mini Antenna For FPV Racing Drone Weight: 7.4g Size: 60mm x 17mm Gain: 2.5dbi Axial ratio: <1.0 (near perfect) Bandwidth: 5.5GHz-6.0GHz Radiation Efficiency: 98% VSWR: <=1.2 Connector: IPEX Works great as both a transmitting or receiving antenna Compatible with other styles of 5.8GHz RHCP antennas |
| Receiver | PNP ( Without Receiver) BNF ( With Optional Receiver) |
Package Included:
1x SKYSTARS Ratel 140X 2-4S FPV Racing RC Drone
