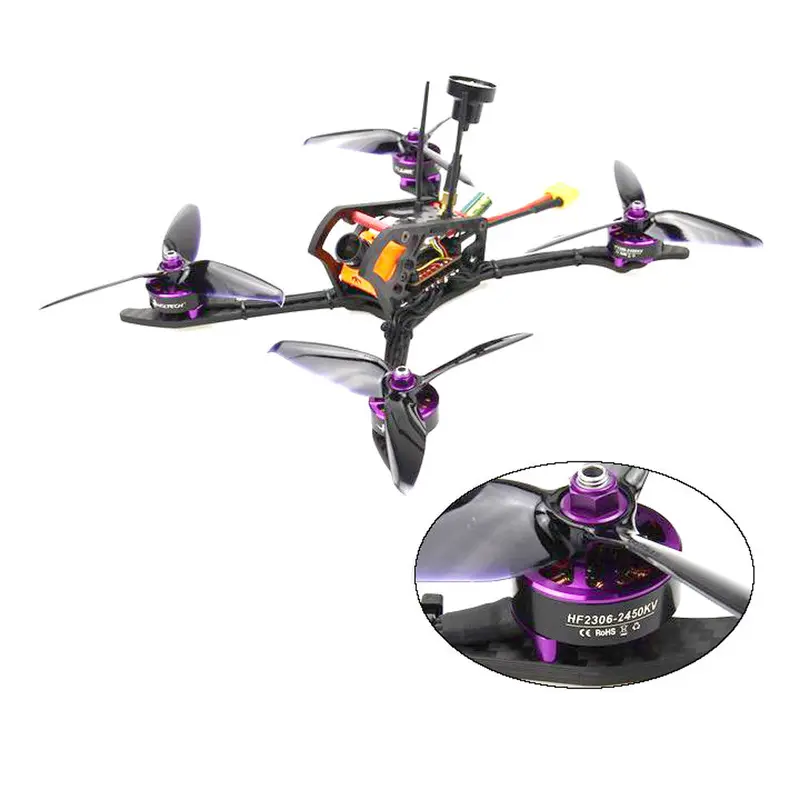

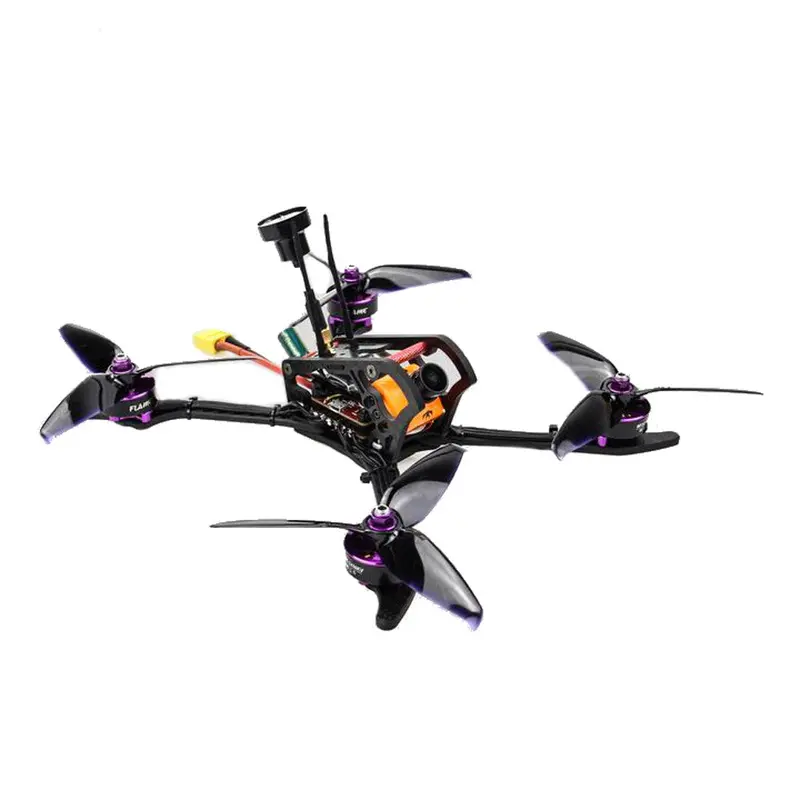

HGLRC Mefisto 226mm 4–5S FPV Racing Drone – PNP/BNF with F4 FC, 2450KV Motors, 60A ESCs & Adjustable 25–400mW VTx

Description

HGLRC 4-5S Mefisto 226MM FPV Racing Drone PNP BNF F4 OSD 2450KV 60A 600TVL 25/100/200/400mW VTX
Specification:
Brand name: HGLRC Item name: Mefisto 4-5S FPV Racing Drone  Net Weight:317g   Mefisto 226MM Carbon Fiber Frame Kit Wheelbase: 226mm Arm Plate Thickness: 4mm Bottom Plate Thickness: 4mm Material: Carbon Fiber Weight: 76g   Airbus F4 OSD Flight Control Board ( D-Shot Version) MPU: MPU6000-SPI CPU: STM32F405RGT6, dual 8K. Black Box: Flash 16M Input Voltage: 2-6S Lipo Built-in Betaflight OSD to adjust PID BEC Output: 5V@3A Size: 36x36mm board, 30.5mm mounting holes (M3) Weight:8.3g Support SBUS/PPM/DSMX receiver   DinoShot 60A BL32 3-6S 4-in-1 ESC Input Voltage: 3-6S Lipo battery Constant Current: 60A-4S/50A-5S/40A-6S Peak Current: 70A BEC Ouput: NO Firmware:32bit ESC with BLHELI_32 firmware Size: 36x36mm (main board)/40x48mm (including pad) Installing Hole: 30.5×30.5mm,M3 Weight: 12.9g CPU:STM32F051 MOS Tube: TOP QUALITY MOSFET Protocol:DSHOT1200/600/300/150/Oneshot125/42,MultiShotDamped   GTX226 V2 VTX (Transmitter) Output power: PIT/25mW/100mW/200mW/400mW switchable Control mode:BFOSD control(RX)/button BAT: 7-26V,BEC 5V-1A 240mA—-400mW Video system: NTSC/PAL Antenna: IPX  Frequency: 5.8GHz 6 bands 48 channels, with Raceband: 5362-5945 MHZ Size: 20mm×25.5mm×8.5mm  Weight: 5.3g   RunCam Swift 2 CAMERA Image Sensor: 1/3″ SONY Super HAD II CCD Horizontal Resolution: 600TVL Lens: 2.1mm Lens FOV: 160 degree(2.1mm) Signal System: PAL S/N Ratio: >60dB(AGC OFF) Electronic Shutter Speed: PAL:1/50 ~ 100,000; NTSC:1/60 ~ 100,000 AutoGain Control(AGC): YES Back light compensation(BLC): YES Min.illumination: 0.01Lux/1.2F WDR: D-WDR DNR: 2DNR Day/Night: Color / Auto / B&W Power: DC 5 to 36V Net weight: 14g Dimensions: 28.5mm * 26mm * 26mm   HF2306 2450KV 4-5S Motor KV: 2450KV Stator Diameter: 23mm Stator Thickness: 6mm No.of Stator Arms: 12S No.of Rotor poles:14P No-load Current(A/10V):1.6A Motor Resistance:49mΩ Max Continuous Current:41.4A Max Continuous Power:660W Weight:32g Rotor Diameter:28.72mm Shaft Diameter:5mm Body Length:16.1mm Overall shaft Length:29.7mm No.of Cells(Lipo):4S~5S Wire type:20AWG 110mm   Gemfan 5152 5 Inch 3-Blade Propeller Color: Black Quantity: 3 CW & 3 CCW   Package Included: 1 x HGLRC AIRBUS F4OSD Flight Control Board 1 x HGLRC 60A BL32_60A 3-6S 4in1 BLHeli_32 ESC 1 x HGLRC HGLRC GTX226 V2 VTX FPV Transmitter 1 x RunCam Swift 2 CAMERA 1 x Mefisto 226MM Carbon Fiber Frame Kit 4 x HGLRC 4-5S HF2306 2450KV Motors
1 x Frsky XM+/Flysky A8S Receiver (BNF Only) 6 x HGLRC 5152 3 propeller 1 x Battery Strap 1 x Pagoda 5.8G Antenna
