Description

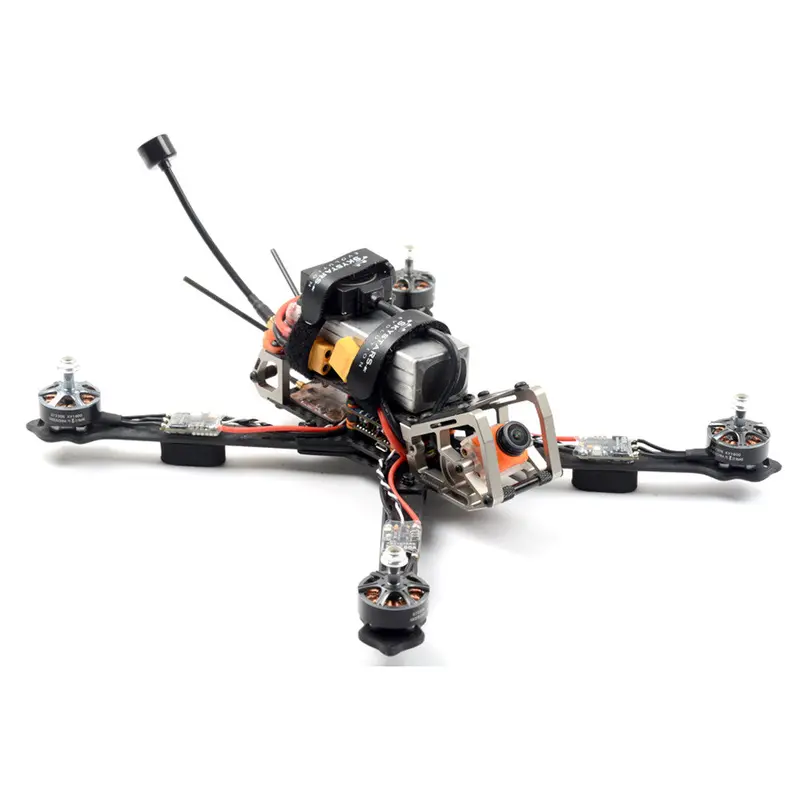

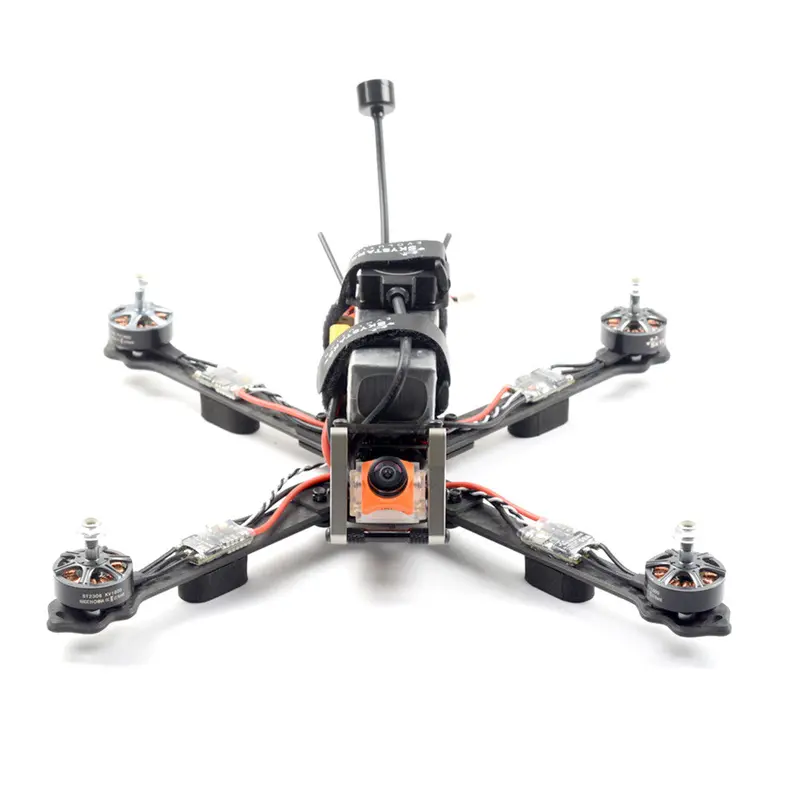

Skystars G730L HD F4 OSD FPV Racing Drone PNP BNF w/ RunCam Split 3 1080P Camera & Mini M8N GPS
Notice: Because Runcam Split 2S camera has been stopped produced.
The camera of this drone was changed to Runcam Split 3.
At present, the old stock with Split 2S and New Stock with Split 3 Send Randonly.
Specification:
Brand Name: Skystars
Model: G730L HD
Item Name: 300mm F4 OSD FPV Racing Drone
Version : PNP( Without Receiver)/ With Frsky XM+ receiver
/ Frsky R9 MM receiver (Optional)
Drone Wheelbase: 300mm
Arm Plate Thickness: 4mm Top Plate Thickness: 2mm
Bottom Plate Thickness: 2mm Side Plate Thickness: 2mm Material: 3K Carbon Fiber & Aluminium alloy Weight: 221g
| F4 Flight Controller | Item Name: Micro F4 Flight Control Board (D-Shot Version) MPU: 6000 CPU: STM32F405RGT6 Baro: BMP280 (I2C) Input Voltage: 2-6S Lipo Built-in Betaflight OSD to adjust PID BEC Output: 5V@3A Size: 30.5×30.5mm board, 3mm mounting holes (M3) Weight:7g Support Subs/PPM/DSMX receiver |
| 50A BLheli_32 ESC | Item Name: 50A 2-6S Blheli_32 ESC Built-in RGB LED Input Voltage: 2-6S Lipo Constant Current: 50A Burst Current: 60A BEC Ouput: NO CPU: STM32F051 BLHELI_32 firmware Size: 26x15x6mm Weight: 7.4g MOS Tube: TOP QUALITY MOSFET – Support Dshot 1200 in default out from factory – Also support Oneshot42, Oneshot125, Multishot, Dshot150, Dshot300 and Dshot600 – Ultra light and ultra small ESC – The color of RGB LED can be set by Blhelisuite. – Powered by high performance STM32 MCU frequency up t0 48 MHZ – Composed of 3Oz gold plated PCB – Flashed with the latest BLheli32 firmware – Supports higher KV motor and more power load, more suitable for violent flight of racing drone – Aluminum heat sink effectively slow down the temperature rise |
| 2306 1800KV Motor | Brand Name: Skystars Model: ST2306 KV:1800KV Stator Diameter: 23mm Stator Thickness: 6mm No.of Stator Poles: 14 Motor Dimension (Dia.*Len): 33.75X28.8mm No Load Current 10V(A): 1.5 No.of Cells(Lipo): 4-6S Max Continuous Power (W) 180S: 1000 Internal Resistance: 78m ohm Max Current (15S): 55A |
| 7056 3-Blade Propeller | Model: DP7056C Quantity: 4 CW & 4 CCW Color: Transparent White |
| 40CH 25/200/500/800mW VTX | Output power: 25mW/200mW/500mW/800mW switchable Control mode:button OR Channel changes and Pitmode setting through PWM With a microphone, you can switch the audio flexibly BAT: 7-26V,BEC 5V-1A 310mA—-800mW Video system: NTSC/PAL Antenna: MMCX Frequency: 5.8GHz 5 bands 40channels Weight: 4.2 g Dimension: 36*36*4.85mm Mounting Hole: 30.5mmx30.5mm |
| RunCam Split 2S HD Camera | Brand Name: RunCam Model: Split 2S Field of View(FOV): FPV FOV 4:3@140°, 16:9@170°/HD Recording 170° Lens Thread Size: M12*0.5 Video Resolution: 1080@60fps/1080@50fps /1080@30fps/720@60fps Video File Format: MOV Image Resolution: 2 Megapixels TV Mode: NTSC (720*480)/PAL (720*576) Switchable Interface: Micro USB / UART Max Micro SD Card: Supported 64G(need Class 6 or above, recommend Class 10/UHS-I/UHS-II/UHS-III) WiFi Module: Support (Removable) Dimensions PCB: 38*38mm/Lens Module 19*19mm Power Input DC: 5-15V / DC 5V(USB) Working Current: 650mA @5V / 270mA @12V Net Weight: 19g – 1080P@60fps HD recording & WDR 16:9 / 4:3 FPV camera – 38x38mm@30.5×30.5 M4 holes, Standard size for a better experience – Removable WiFi module for APP |
| Mini M8N GPS Module | Mini M8N GPS Module UBX-M8030 For Mini PIX / F4 / F7 Flight Controller Description: Brand name: SKYSTARS Item name: ST100 Mini M8N GPS Size: 31*30*12mm Weight: 22g Max height: 50000m Max speed: 515m/s Max acceleration: 4G Max update rate: up to 10Hz |
| 5.8G 2.5dBi Antenna | RHCP 5.8G 2.5dBi Super Mini Antenna For FPV Racing Drone Size: 120mm x 17mm Weight: 10g Gain: 2.5dbi Axial ratio: <1.0 (near perfect) Bandwidth: 5.5GHz-6.0GHz Radiation Efficiency: 98% VSWR: <=1.2 Connector: SMA Works great as both a transmitting or receiving antenna Compatible with other styles of 5.8GHz RHCP antennas |
| Receiver ( Optional) | PNP Version: Without Receiver Frsky R9 MM Receiver Version: with Frsky R9 MM RX Frsky XM+ Receiver Version: with Frsky XM+ RX |
Package Included:
1x Skystars G730L HD FPV Racing Drone
2x Battery Strap
1x Anti-slipping Pad
