Description

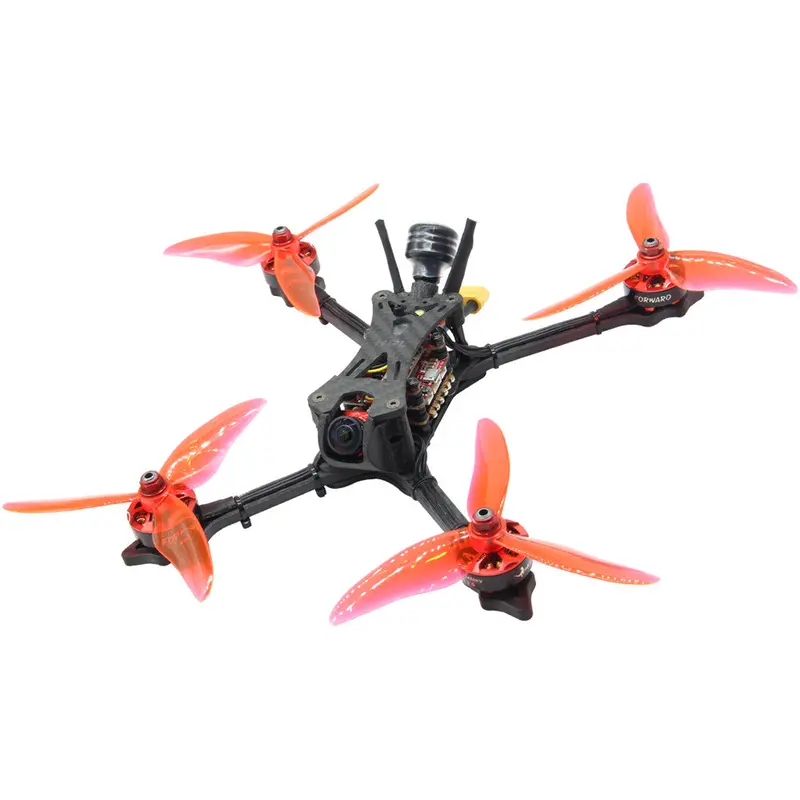

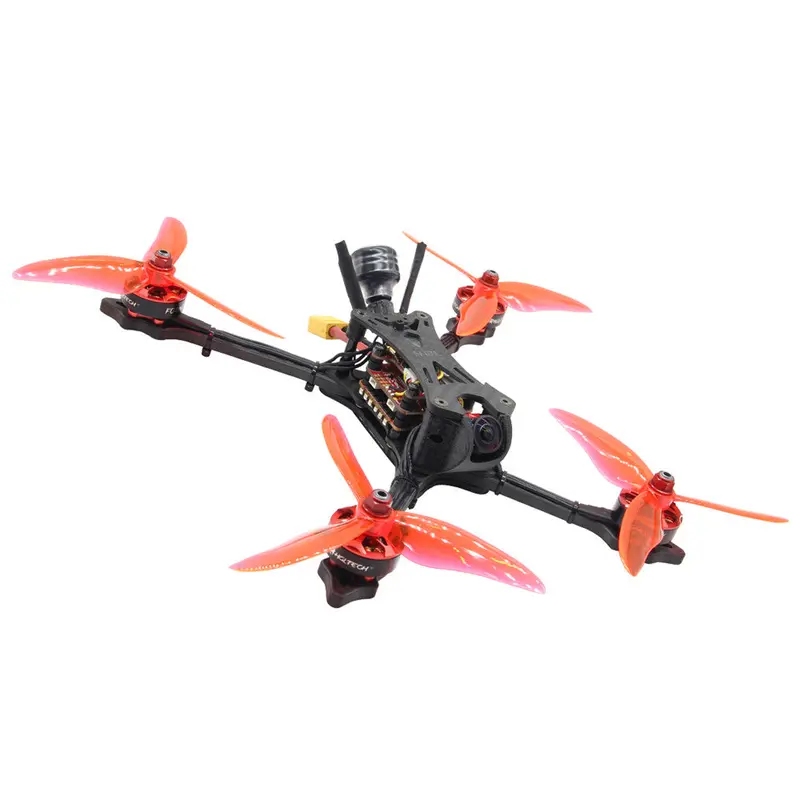

HGLRC Wind5 233mm F7 OSD FD2306 1600KV 6S 5 Inch FPV Racing Drone PNP BNF w/ Caddx Ratel Camera
12% OFF Coupon Code: BGWind5
Valid to November 30th.
Specification:
Brand Name: HGLRC
Model: Wind5
Item Name: 233mm F7 OSD FD2306 1600KV 6S 5 Inch FPV Racing Drone
Version: PNP ( Without Receiver); With Flysky A8S V2 Receiver/ with Frsky XM+ Receiver (Optional)
| Wind5 Frame | Wheelbase: 233mm Material: Carbon Fiber Arm Plate Thickness: 6mm Standoff Height: 28mm FC Mounting Hole: 20*20mm & 30 * 30mm Chute Type Net Weight: 98.4g |
| Forward F7 Dual Flight Controller | MPU: ICM20608 (32K) & MPU6000-SPI CPU: STM32F745VGT6, 32K+16K. Black Box: No Dataflash Chip Found Input Voltage: 3-6S Lipo Built-in Betaflight OSD To Adjust PID BEC Output: 5V@3A, 8V@1.5A LED Output: 5V@3A Weight: 10.2g Size: 37x37mm Board, 30.5mm Mounting Holes Support SBUS/PPM/DSMX Receiver |
| Dinoshot 60A Blheli_32 3-6S 4in1 ESC | Input Voltage: 3-6S Lipo Battery Constant Current: 60A-4S/50A-5S/40A-6S Peak Current: 70A BEC Ouput: NO Firmware: 32bit ESC With BLHeli_32 Firmware Size: 36x36mm (Main Board) ; 40x48mm ( include pad) Installing Hole: 30.5×30.5mm, M3 Weight: 12.9g CPU: STM32F051 MOS Tube: TOP QUALITY MOSFET Protocol: DSHOT1200/600/300/150/Oneshot125/42, MultiShot Damped Mode |
| Forward Fd2306 1600KV Motor | KV: 1600KV No.of Cells(Lipo): 25.2V (6S) Internal Resistance (mΩ): 93 Stator Diameter:23mm Stator Height:6mm No.of Stator Slots:12S No.of Rotor Poles:14P Max Continuous Current:23.44A(60S) Max Continuous Power:866.7W Shaft Diameter:5mm Overall Dimension(mm):27.9 X 30.7 Lead Wire Size :20AWG X 150 mm Weight:32 g |
| GF51499 3-Blade Propeller | Brand Name: Gemfan Model: 51499 Color: Red Quantity: 2 CW + 2 CCW |
| Forward VTX 5.8G 48CH FPV Transmitter | Output Power: PIT/25mW/100mW/200mW/400mW Switchable Control Mode:BFOSD Control(RX)/Button BAT: 7-28V,BEC 5V-1A Video System: NTSC/PAL Antenna: MMCX Frequency: 5.8GHz 6 Bands 48 Channels, With Raceband: 5362-5945 MHZ Size: 20*38mm(L*W),Hole:30.5*30.5mm Weight: 5.2g |
| Caddx Ratel 1200TVL Camera | Color: Red Lens: 1.66mm Image Sensor: 1/1.8″ Inch starlight HDR sensor Horizontal Resolution: 1200TVL FOV: 180 Degree Min. Latency: 8ms TV System: NTSC & PAL (changeable) Image: 16:9 & 4:3 (changeable) WDR: Super WDR (HDR) Min. Illumination: Starlight Synchronization: Internal Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000 S/N Ratio: >60dB (AGC OFF) Video Output: CVBS Camera OSD: Separate OSD DNR: 3-DNR Language: ENG/FRANCE/RUS/SPA/PU/KOREA/CHN/JAPAN Day/Night: Auto/Color/B&W/EXT Dimensions: 19mm*19mm*19mm Wide Power Input: DC 5-40V Work Temperature: -20℃~+60℃ Work Humidity: 20%~80% Weight: 8g (N.W.)/ 40.5g (G.W.) |
| Receiver | PNP Version: Without Receiver FS-A8S V2 Receiver Version: with Flysky A8S V2 Receiver Frsky XM+ Receiver Version: with Frsky XM+ Receiver |
| Lipo Battery ( NOT Included) | Recommend 6S Lipo Battery |
Package Included:
1x HGLRC Wind5 6S FPV Drone
