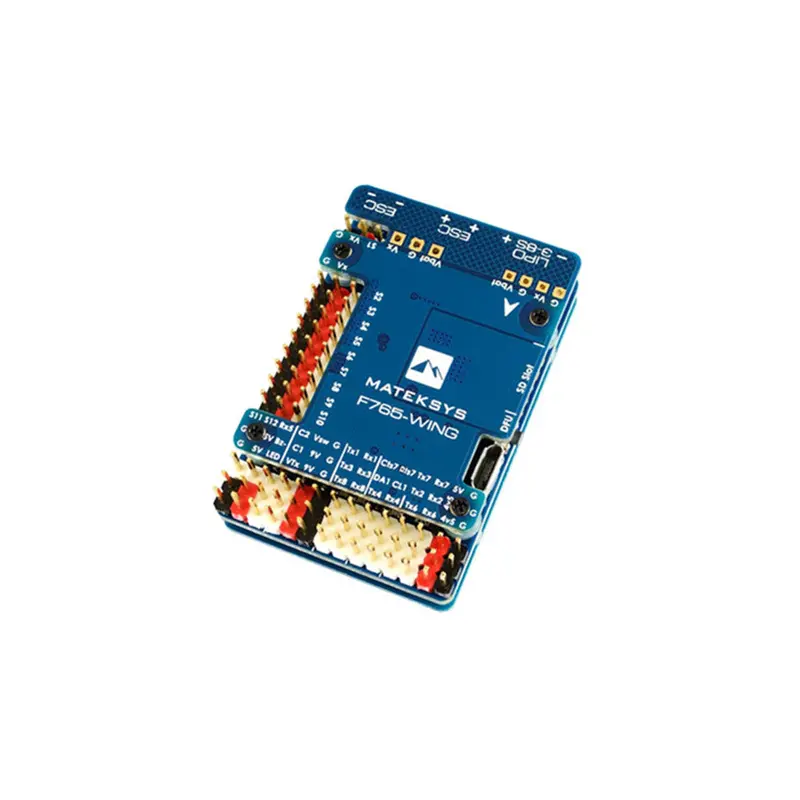

Matek Systems F765-WING STM32F765VI Flight Controller – Integrated OSD, Optimized for Fixed-Wing RC Aircraft

Description

FC Specifications: MCU: STM32F765VIT6, 216MHz , 512KB RAM, 2MB Flash IMU: MPU6000 (SPI1) & ICM20602 (SPI3) Baro: BMP280 (I2C2) OSD: AT7456E (SPI2) Blackbox: MicroSD card slot (SDIO) 7x Uarts (1,2,3,4,6,7,8) with built-in inversion. 1x Softserial1_Tx (INAV) 12x PWM outputs (S1~S10 support Dshot) 6x ADC (VBAT, Current, RSSI, Analog AirSpeed, VB2, CU2) 3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red) 2x I2C 1x SPI4 break’out Switchable Dual Camera Inputs Switchable 5V/9V(12V) for Camera/VTX High-precision Current Sense ADC VB2 voltage divider: 1K:10K ADC AirSpeed voltage divider: 10K:10K TR/SA VTX control: Yes WS2812 Led Strip : Yes Beeper : Yes RSSI: Yes Analog Airspeed sensor: Yes Digital Airspeed sensor: Yes
FC Firmware:
INAV Target: MATEKF765 ArduPilot(ChiBiOS)  Target: MATEKF765-WING
PDB: Input voltage range: 9~36V (3~6S LiPo) w/TVS protection 2x ESC power pads Battery Voltage Sensor: 1:10 (Scale 1100 in INAV,  BATT_VOLT_MULT 11.0 in ArduPilot) Current Senor: 132A,  3.3V ADC  (Scale 250 in INAV,  40 A/V in ArduPilot)
BEC 5V output: Designed for Flight controller, Receiver, OSD, Camera, Buzzer, 2812 LED_Strip, Buzzer, GPS module, AirSpeed Continuous current: 2 Amps, Max.3A
BEC 9V /12V output: Designed for Video Transmitter, Camera, Gimbal ect. Continuous current: 2 Amps, Max.3A 12V option with Jumper pad
BEC Vx output: Designed for Servos Voltage adjustable, 5V Default, 6V or 7.2V via jumper Continuous current: 8 Amps, Max.10A
BEC 3.3V output: Designed for Baro / Compass module and Spektrum RX Linear Regulator Continuous current: 200mA
Physical: Mounting: 30.5 x 30.5mm, Φ4mm with Grommets Φ3mm Dimensions: 54 x 36 x 13 mm Weight: 26g
Package included:
1 x Matek Systems F765-WING STM32F765VI Flight Controller Built-in OSD for RC Airplane Fixed Wing
