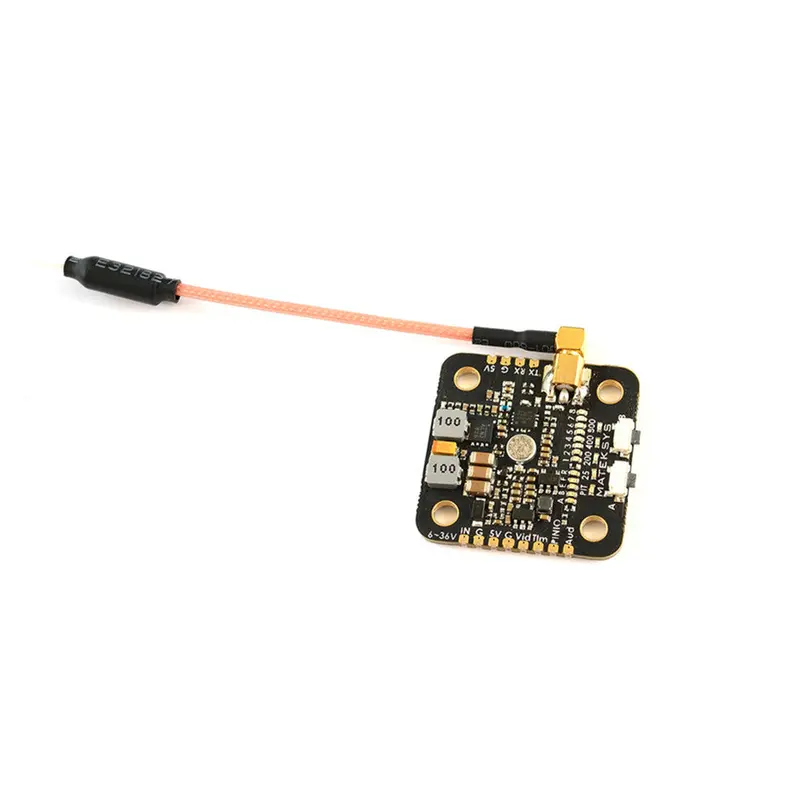

MATEK VTX-MINI 5.8GHz FPV Video Transmitter – Ultra-Compact 40-Channel Module with Adjustable Power (25–800mW) for Racing Drones

Description

Specifications: 40CH(A/B/E/F/R Band) Any Freq/band can be disabled or enabled by CLI command Variable Output Power: PIT, 25, 200, 400, 800mW Button control and LED indicators CMS control(Tramp protocol) via FC Uart _Tx Switchable VTX input power via FC PINIO Constant full frequency band power Clean powerup and frequency switching Built-in microphone Upgradeable firmware Convertible 20 to 30mm mounting Input voltage: 6~36V(2~8S LiPo) 5V Output: 1A for Camera or FC Power Consumption: 3.5W@ 800mW Video Input Impedance: 75 Ohm Audio Subcarrier Frequency: 6.5 MHz RF Connector: MMCX Video Format: NTSC/PAL Weight: 4.5g (VTX-mini only, w/o antanna) Size1: 28*28*4mm w/20mm_Φ3mm mounting Size2: 36*36*5mm w/30.5mm_Φ3mm mounting
Package Included: 1x 5.8G Video transmitter VTX-mini 1x MMCX 5.8G whip antenna, 8cm 1x 20mm to 30.5mm conversion plate
