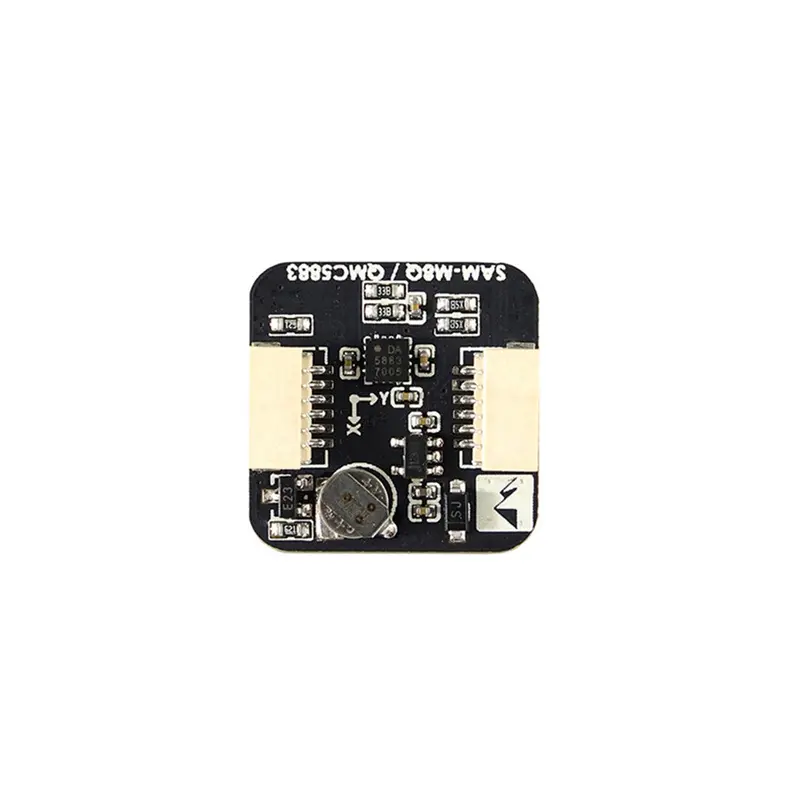

Matek M8Q-5883 GPS & Compass Module – SAM-M8Q + QMC5883L Combo for FPV Racing and Autonomous Drones

Description

Matek Systems M8Q-5883 SAM-M8Q GPS & QMC5883L Compass Module for RC Drone FPV Racing
Specification:
Brand name: Matek
Item name: GPS & compass module M8Q-5883
Dimensions: L20 x W20 x H10 mm
Weight: 7 gram
Input voltage range: 4~6V
Uart (Tx,Rx) interface for GPS SAM-M8Q
I2C (DA,CL) interface for Compass QMC5883L
Battery for HOT module start
Power LED(Red) & Time pulse LED(Blue)
Supported by INAV/Betaflight/Ardupilot, ect.
Features:
-72-channel M8 engine GPS L1C/A, SBAS L1C/A, QZSS L1C/A, QZSS L1 SAIF, GLONASS L1OF, Galileo E1B/C -On-board Ultra low noise 3.3V voltage regulator and RF filter for noise blocking -Features an additional front-end LNA for optimized performance and a front-end SAW filter for increased jamming immunity -Build-in embedded GNSS patch antenna, low power consumption -The 15 x 15 mm patch antenna provides the best compromise between the performance of a Right Hand Circular Polarized (RHCP) antenna and a small size
to be integrated in any design. -Magnetic sensor QMC5883L integrated
-Max navigation update rate  Single GNSS up to 18 Hz  2 Concurrent GNSS(GPS & GLONASS) up to 10 Hz -Horizontal position accuracy(GPS & GLONASS) 2.5 m CEP -Velocity accuracy 0.05m/s -Cold start 26 s  Aided cold starts: 2 s  Hot start 1 s
-Sensitivity  Tracking & Navigation: –165 dBm  Reacquisition: –158 dBm  Cold start: –146 dBm  Hot start: –155 dBm
Tips:
-GPS, GLONASS, SBAS, QZSS are enabled by default -Blue PPS LED blinking(1Hz) means 3D fixed -update rate 1Hz & baudrate 9600 default -Baud 9600~115200 supported by INAV/BF/Ardupilot -Compass Alignment(Arrow forward):  INAV/BF: CW 270° Flip  Ardupilot/Mission Planner: Rotation None -BF doesn’t support GPS position hold and RTH,  GPS Rescue mode is supported by BF3.5 or last. -No need compass for Fixed wings with INAV firmware -The scratches on ceramic antenna are the result of tuning the antenna by ublox.
 u-center Windows
Package included:
1x M8Q-5883 module
1x SH1.0-6P 20cm silicon wire
1x Transparent PVC Heat-shrink tube
