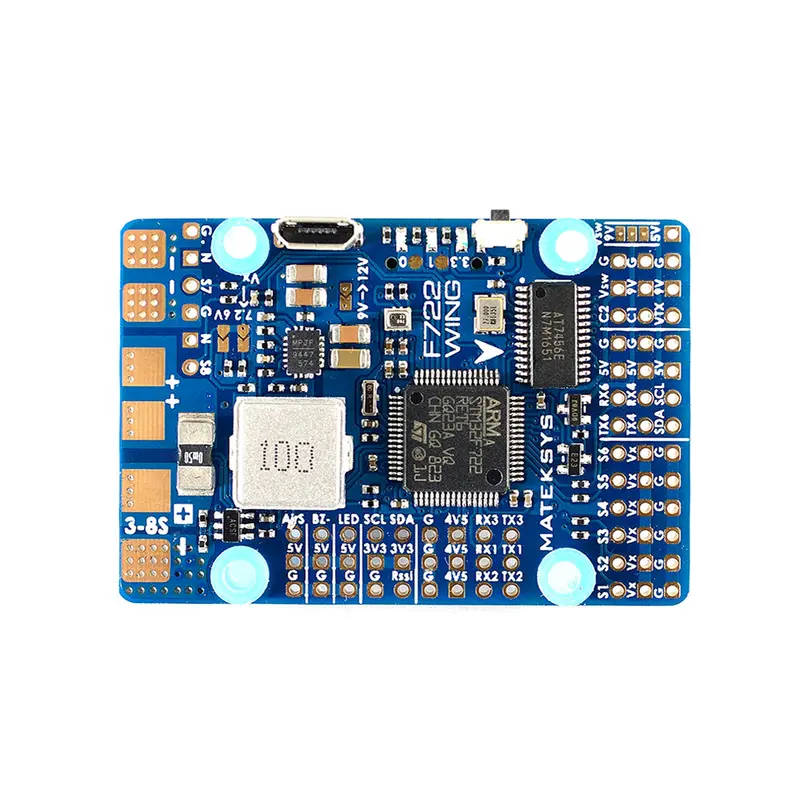

Matek Systems F722-WING STM32F722RET6 Flight Controller Built-in OSD for RC Airplane Fixed Wing
Description:
Brand name: Matek MCU: 216MHz STM32F722RET6 IMU: MPU6000 (SPI) Baro: BMP280 (I2C) OSD: AT7456E (SPI) Blackbox: MicroSD card slot (SPI) 5x Uarts (1,2,3,4,6) with built-in inversion 1x Softserial-Tx 2x Motors, 6x Servos outputs 1x I2C 4x ADC (VBAT, Current, RSSI, AirSpeed) 3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red) Switchable Dual Camera Inputs Switchable 5V/9V for Camera/VTX High-precision Current Sense TR/SA VTX control: Yes WS2812 Led Strip : Yes Beeper : Yes RSSI: Yes Analog Airspeed sensor: Yes Digital Airspeed sensor: Yes
FC Firmware INAV Flight/BetaFlight Target: MATEKF722SE
PDB Input voltage range: 9~36V (3~6S LiPo) w/TVS protection 2x ESC power pads Battery Voltage Sensor: 1:10 (Scale 1100) Current Senor: 132A, 3.3V ADC, Scale 250
BEC 5V output Designed for Flight controller, Receiver, OSD, Camera, Buzzer, 2812 LED_Strip, Buzzer, GPS module, AirSpeed Continuous current: 2 Amps, Max.3A
BEC 9V /12V output Designed for Video Transmitter, Camera, Gimbal ect. Continuous current: 2 Amps, Max.3A 12V option with Jumper pad
BEC Vx output Designed for Servos Voltage adjustable, 5V Default, 6V or 7.2V via jumper Continuous current: 5 Amps, Max.6A Output Ripple: 50mV (VIn=24V, VOut=5V@5A load)
BEC 3.3V output Designed for Baro / Compass module and Spektrum RX Linear Regulator Continuous current: 200mA
Physical Mounting: 30.5 x 30.5mm, Φ4mm with Grommets Φ3mm Dimensions: 54 x 36 x 13 mm Weight: 25g
F722-WING VS F405/F411-WING
| F722-WING | F405-WING | F411-WING | |
| MCU | 216MHz STM32F722 | 168MHz STM32F405 | 100MHz STM32F411 |
| IMU | MP6000 | MP6000 | MP6000 |
| BARO | BMP280 | BMP280 | BMP280 |
| OSD | AT7456E | AT7456E | AT7456E |
| BlackBox | MicroSD | MicroSD | / |
| Firmware | INAV BetaFlight | INAV ArduPilot | INAV BetaFlight |
| Dual Camera In | Yes | / | / |
| 5V/9V Switcher | Yes | / | / |
| Current Sense | High precision 132A | 104A | 78A |
| Max.Voltage | 36V(8S) | 30V(6S) | 30V(6S) |
| Motors | 2 | 2 | 2 |
| Servos | 6 | 7 | 5 |
| UART | 5 | 6 | 2 |
| Softserial | 1 | 1 | 1 |
| Uart Inversion | All | RX2 | RX1 |
| 5V for FC | 2A | 2A | 2A |
| 9V for VTX | 2A | 2A | / |
| Vx for Servos | 5A | 5A | 3A |
| LDO 3.3V | 200mA | 500mA | 200mA |
| Size | 54×36 | 56×36 | 41×28 |
| Weight | 25g | 25g | 12g |
Matek Systems F722-WING Flight Controller Manual, click here
