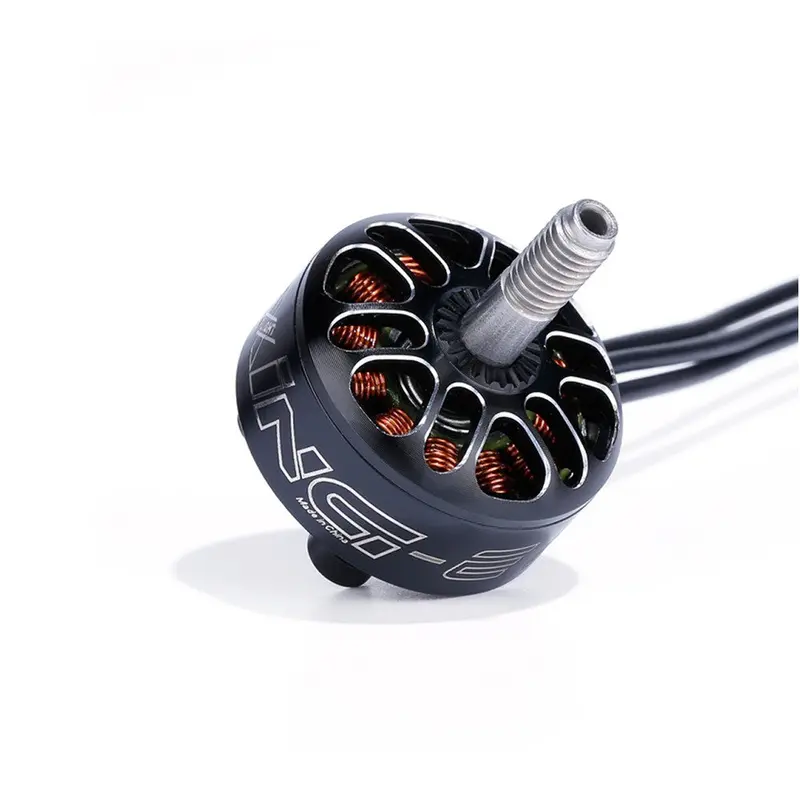

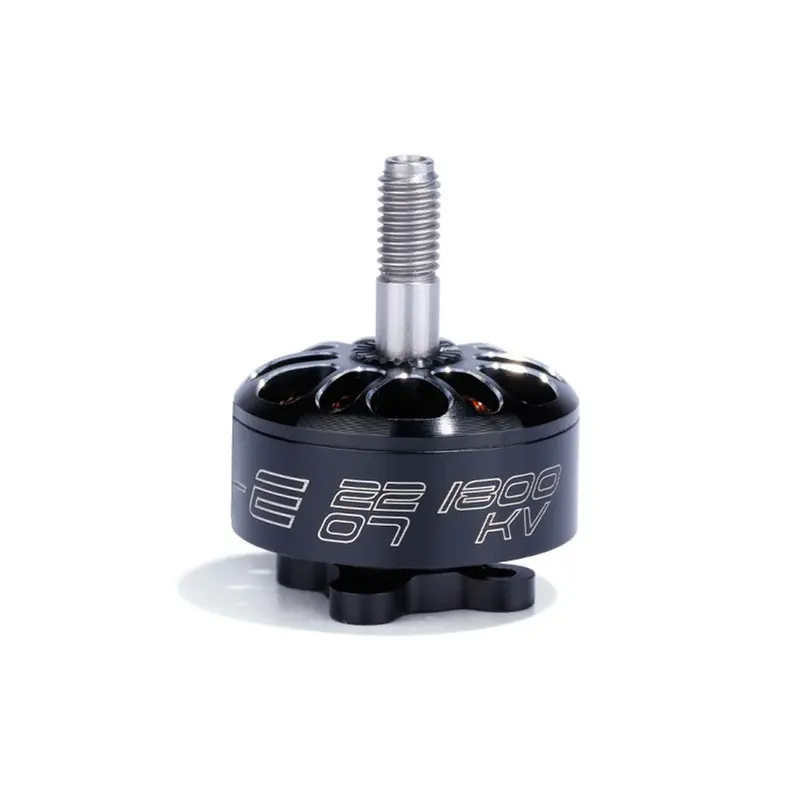

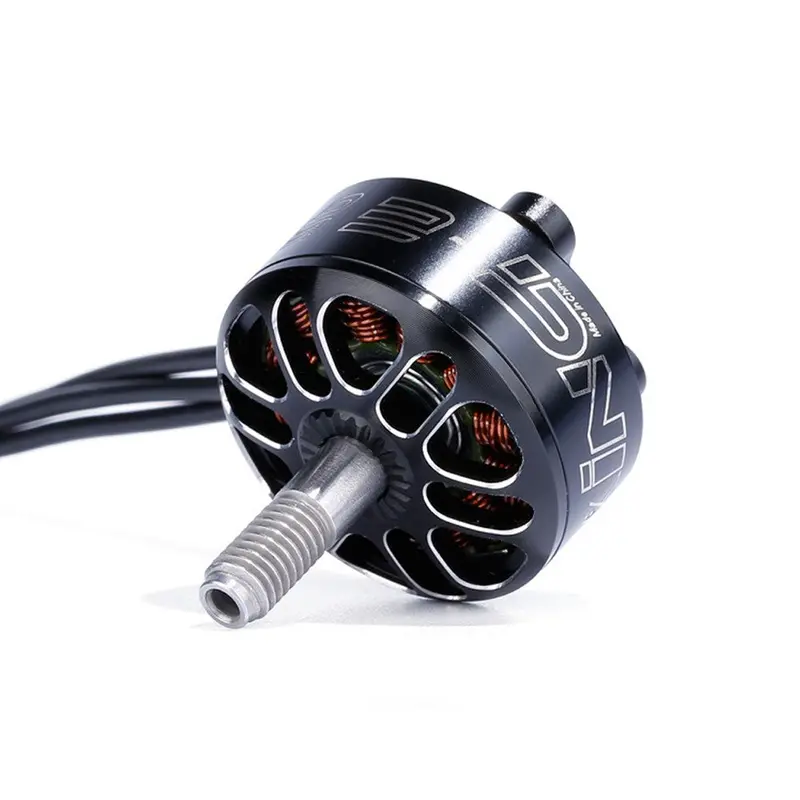

iFlight XING-E 2207 Brushless Motor Series – Multiple KV Options (1700–2750KV) for 2S–6S FPV Racing Drones

Description

iFlight XING-E 2207 1700KV 1800KV 3-6S /2450KV 2750KV 2-4S Brushless Motor for RC Drone
Specification:
Brand Name: iFlight
Model: XING-E 2207
Item Name:  2207 1700KV 1800KV 2450KV 2750KV Brushless Motor
KV: 1700KV /1800KV /2450KV /2750KV ( Optional)
Version: CW Screw Thread
Quantity: 1 PC
Input Voltage: 3-6S @ 1700KV / 1800KV ;
2-4S @ 2450KV / 2750KV
Configuration: 12N14P
Stator Diameter: 22mm
Stator Length: 7mm
Shaft Diameter: 5mm
Motor Dimension: 28.5×19.7mm (Dia*Len)
Weight: 33.8g
Idle Current(10) @10V: less than 1.1A (1700KV);     less than 1.2A (1800KV);
less than 2.0A(2450KV);      less than 2.2A (2750KV)
Max. Con. Power (180S): 778.1W@1700KV ; 845.3W@1800KV; 682.1W@2450KV; 800.5W@2750KV
Internal Resistance: 90mΩ@1700KV; 81.5mΩ@1800KV; 46.8mΩ@2450KV ; 41mΩ@2750KV
Max. Current (180S): 32.42A@1700KV; 35.22A@1800KV; 42.63A@2450KV; 50.03A@2750KV
Package Included:
1x iFlight XING-E 2207 Motor
1x Motor Nut
4x Screws
