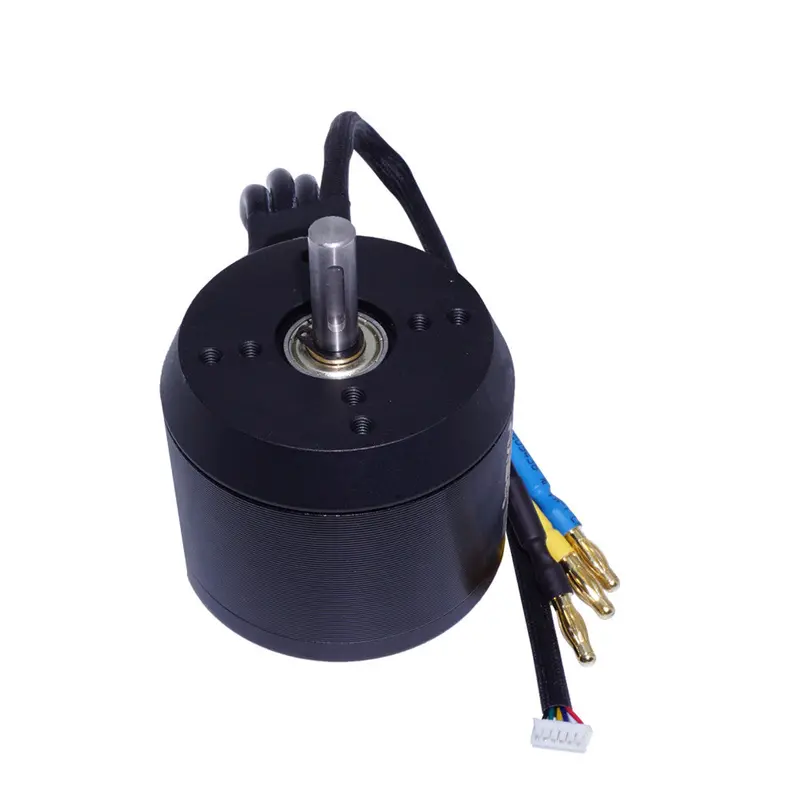

Flipsky FS6354 190KV 2450W Sensored Brushless Motor with 8mm Shaft for Electric Skateboards and RC Models

Description

Description:
Brand:Flipsky No:6354 Weight: 1.23 lb / 0.56 kg Packaging weight:about 800g Packaging size:115mm*175mm*90mm Mainly fit for electric skateboards and electric bikes, as well as underwater propellers and robots, can be used with large aircraft models
Motor Spec:
Motor KV: 190KV Idle current: 1.2A Motor Resistance: 0.053Ohm  Max. power: 2450W  Max current:65A  Battery type: 4-12S
Max volts:12S Max Torque: 7Nm
Recommend ESC: 3-12S 50A (FSESC4.12 50A or FSESC 6.6 60A) Diameter(mm): 63.4 Length(mm): 57 SHAFT: Diameter 8mm, 24mm length, 3×1.5 keyway slot. Motor Wire: 130mm silicone 12AWG wire with 4.0mm Gold Bullet Connector Female. Wire configuration: Blue = A Black = B Yellow = C Stator: 0.2mm thickness lamination japan steel Magnet: N42SH high temp curve magnet
Sensor Wire: Standard RC Sensor Wire JST-ZH 6pin 1.5mm pitch Internal PCB with 120 Degree Hall Effect Sensors. Motor can be used with or without a sensor. Sensorless operation is most common. VESC Sensor Wires required to use with VESC. Wire configuration: Red = 5v White = Temp Blue = A Yellow = C Green = B Black = GND
Screws(the packaging are not included):  The screws used for the motor are M4x8mm metric bolts. Using our motor mounts, we recommend using M4x8mm Socket Cap bolts. Package included:
1X 6354 190kv 2640W Motor((Fits 63mm Motor Mount)
