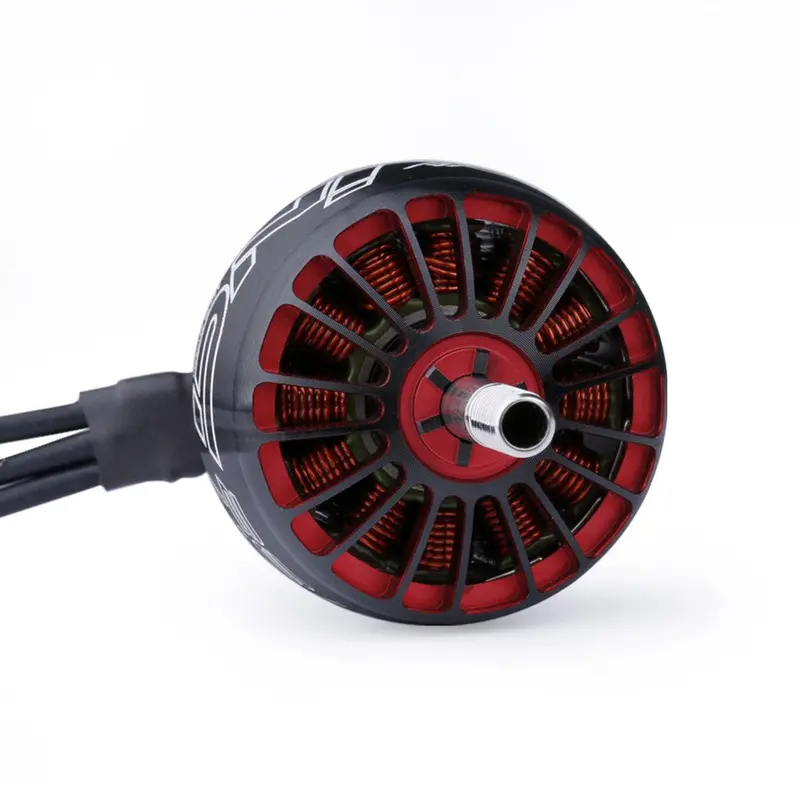

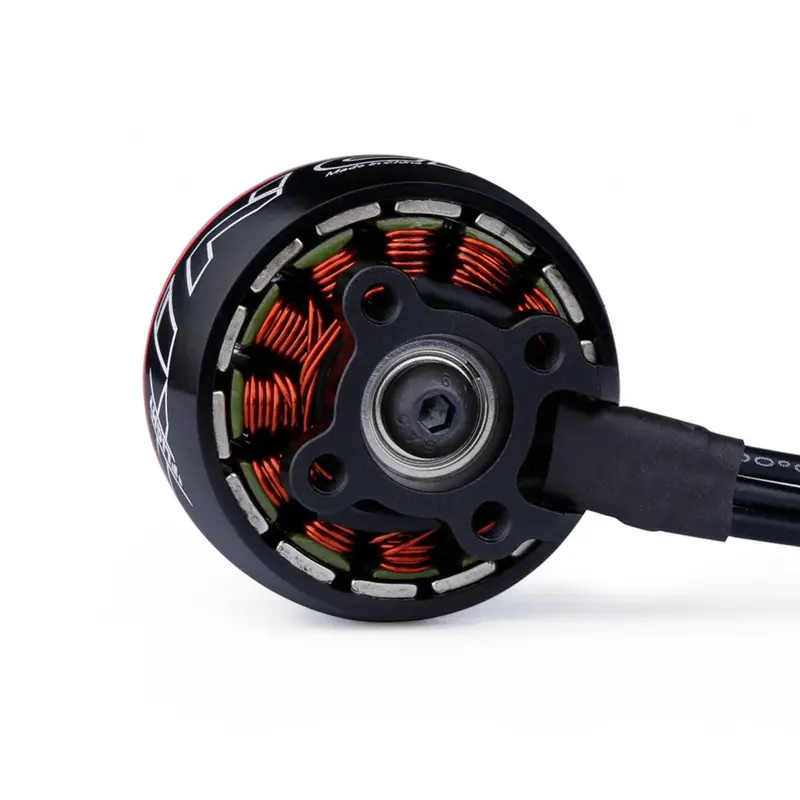

iFlight XING 2814 Brushless Motor – 880KV/1700KV/2200KV Options for 4S–6S FPV and Long-Range Drones

Description

iFlight XING 2814 880KV / 1700KV / 2200KV 4-6S Brushless Motor for Long Range RC Drone FPV Racing
Specification:
Brand Name: iFlight
Model: XING 2814
Item Name: 2814 880KV / 1700KV / 2200KV 4-6S Brushless Motor
KV: 880KV / 1700KV / 2200KV ( Optional)
Version: CW Screw Thread
Configuration: 9N12P
Stator Diameter: 28mm
Stator Length: 14mm
Shaft Diameter: 5mm
Motor Width: 36mm
Motor Height: 30mm
Idle Current(6): 51A@6V
Max. Con. Power (180S): 816W
Internal Resistance: 48.6Ω
Max. Current(180S): 51A
Cable Length: 160mm
Weight: 88.3g
Package Included:
1x  XING 2814 Motor
