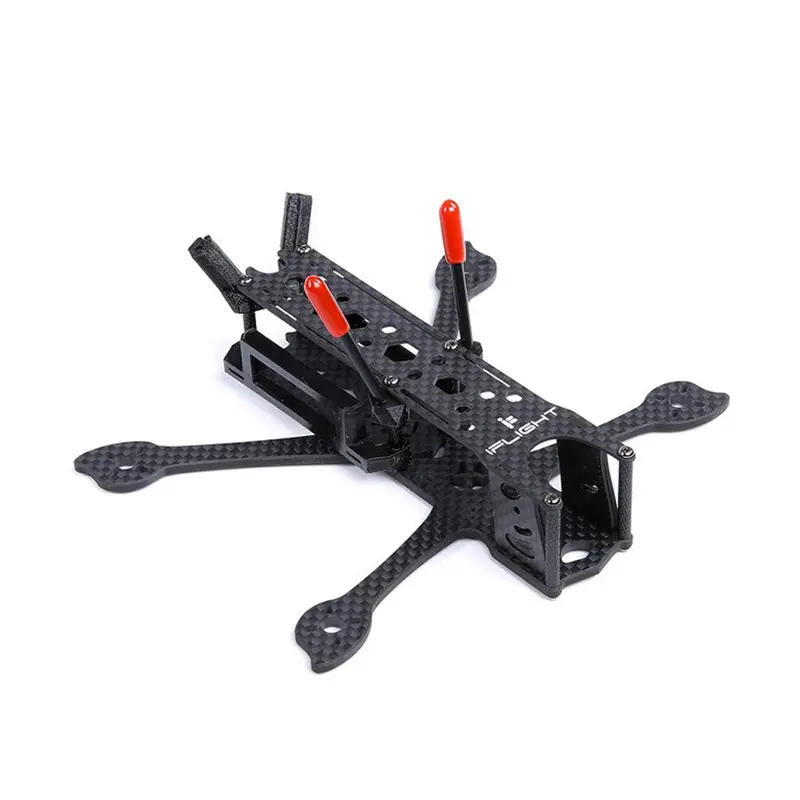

iFlight DC3 HD 145mm Carbon Fiber Frame Kit – 3K Weave, 3-Inch Build, Optimized for DJI FPV System

Description

iFlight DC3 HD 145mm 3K Carbon Fiber 3 Inch Frame Kit for DJI FPV System RC Drone
New version like photos showed.
11.04 Beijing Time
Specification:
Brand Name: iFlight
Model: DC3 HD
Item Name: 145mm Wheelbase 3 Inch Racing Frame Kit
Wheelbase: 145mm
Arm Plate Thickness: 3mm
Arm Plate Width: 6.5mm
Side Plate Thickness: 1.5mm
Top Plate Thickness: 1.5mm
Bottom Plate Thickness: 3mm
Inner Standoff Height: 25mm
Net Weight: 41g
Dimension: 119x81mm
Recommend Parts:
Flight Controller: 16x16mm  OR 20x20mm F3/ F4 Flight Controller
Brushless ESC: 15-40A ESC
Brushless Motor: 11XX / 13XX / 14XX Series Motor
Propeller: 3 Inch Propeller
The following Parts are Compatible: ( Not Included)
FC: LDARC 20x20mm 20A BL_S ESC & Omnibus F4 Flight Controller w/ OSD
Motor: EMAX 1306 RS1306 Version 2 RS1306B 2700KV 4000KV 3-4S Motor
Propller: 6 Pairs Emax AVAN Mini 3 Inch 3X2.4X3 3-blade Propeller CW CCW
VTX & Camera: DJI Digital FPV System Air Unit VTX 4K HD Camera & Goggle Combo
Package Included:
1x iFlight DC3 HD 145mm Frame Kit
