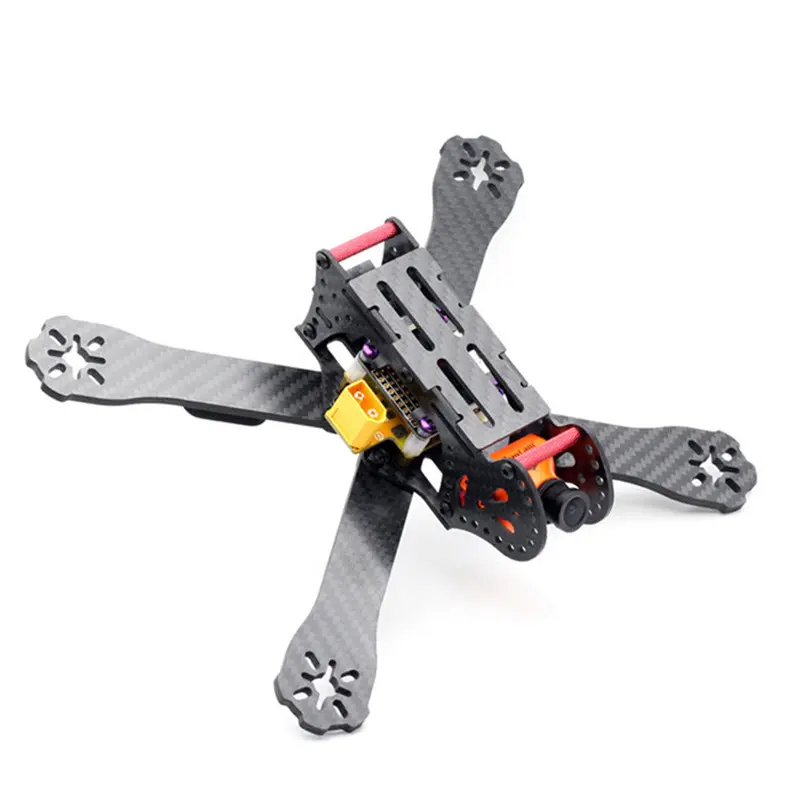

HSKRC AL220 Racing Drone Frame – 220mm Wheelbase, 4mm Arms, 3K Carbon Fiber, Includes 5V/12V PDB

Description

220mm Wheelbase 3K Carbon Fiber Racing Frame Kit 4mm Arm with PDB Board
Note: Only including the empty frame kit and PDB Board
The parts FC, camera showed in the photo are not included.
Specification:
Item Name: 220mm Carbon Fiber Frame Kit
Wheelbase: 220mm
Material: 3K Carbon Fiber
Arm Thickness: 4mm
Bottom Plate Thickness: 2mm
Side Plate Thickness: 2mm
FPV Installing Plate Thickness: 2mm
Receiver Installing Plate Thickness: 1mm
Weight:150g (Including PDB)
PDB Board
Input Voltage: 9V-18V (3-4S Lipo)
BEC Output: 5V @ 2A  ; 12V @500mA
Resistant Current: 4*25A (4*30A/ 10S)
Inatalling Hole: 30.5×30.5mm
Recommend Parts:
Propeller: 5 Inch Prop
Motor: 1806-2208 Motor
Flight Control: F3 / CC3D / Naze32 Flight Controller
ESC: 12-30A
The following parts are suitable:
Flight Controller: 6Dof/ 10Dof F3 Flight Controller
Motor: DYS SE1806 PRO 2700KV 3-4S Brushless Motor
Racerstar RS2205 2300KV 2-4S Brshless Motor
ESC: Racerstar RS20x4 20A 4 In 1 Brushless ESC
Racerstar Star30 30A Detachable 4 In 1 ESC
Propeller: 10 Pairs Kingkong 5040 3-Blade Propeller
10 Pairs Kingkong 5045 3-Blade Propeller
Battery: Pls click here
Package Included:
1x 220mm Frame Kit
1x PDB Board
1x XT60 Connector
2x Battery Strap
