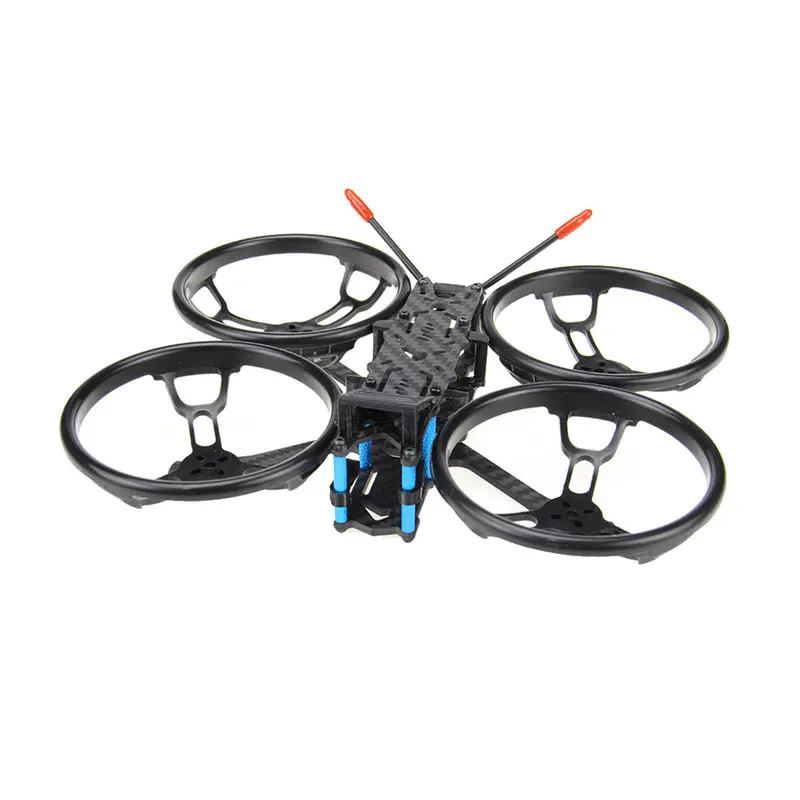

HGLRC Sector150 FPV Drone Frame Kit – 150mm Wheelbase, 3mm Carbon Arms, 3-Inch Build Platform

Description

HGLRC Sector150 150mm Wheelbase 3mm Arm 3 Inch Frame Kit for RC Drone FPV Racing
Specification:
Brand Name: HGLRC
Model: Sector150
Item Name: 150mm Wheelbase 3mm Arm 3 Inch Racing Frame Kit
Wheelbase:150mm
Material: 3K Carbon Fiber
Bottom Plate Thickness: 3mm Standoff Height: 28mm Flight Control Installation Holes: 16X16mm / 20X20mm Support Camera:14x14mm / 19x19mm Overall Size: 210x183mm
Weight: 79g
Recommended Parts:  Flight Controller:Kiss/F4/F7 FC Motor:1408/1306/1104/1105/1106 ESC:28A-35A ESC Propeller:3 Inch Prop Battery:3S/4S 300mAh -650mAh Lipo
The Following Parts are Compatible: ( NOT Included)
FC & ESC Stack: HGLRC FD435 Stack FD F4 Mini Flight Controller 35A Bl_32 3-6S ESC
Brushless Motor: LDARC 1306 3100KV 2-4S Brushless Motor for RC FPV Racing Drone
Propeller: 2 Pairs Gemfan Flash 3052 3-blade Propeller 5mm Mounting Hole CW & CCW
Lipo Battery:  Gens Tattu 14.8V 650mAh 75C 4S1P Lipo Battery With XT30 Plug
Package Included:
4 x 3 Inch Propeller Protective Guard 1 x 2mm Top Plate 1 x 3mm Bottom Plate 6 x M2*28mm Blue Aluminum Column 4 x Round head screw M2*22 4 x Round head screw M2*12 24 x Round head screw M2*7 15 x Round head screw M2*6 20 x Round head screw M2*5 8 x Damping rubber column M2X6 8 x M2  damping O-ring 12 x M2 black Relax nut 1 x Acrylic sheet 16X16 2 x Battery cable tie 1 x Battery Anti-slip tape 2 x TPU Sector Camera Mount 1 x TPU Sector SMA 1 x TPU Camera Mount 1 x TPU Sector AIR UNIT
