FrSky XM+ Micro D16 SBUS Receiver – Ultra-Compact 16-Channel Full-Range Module for FPV and RC Models

Description

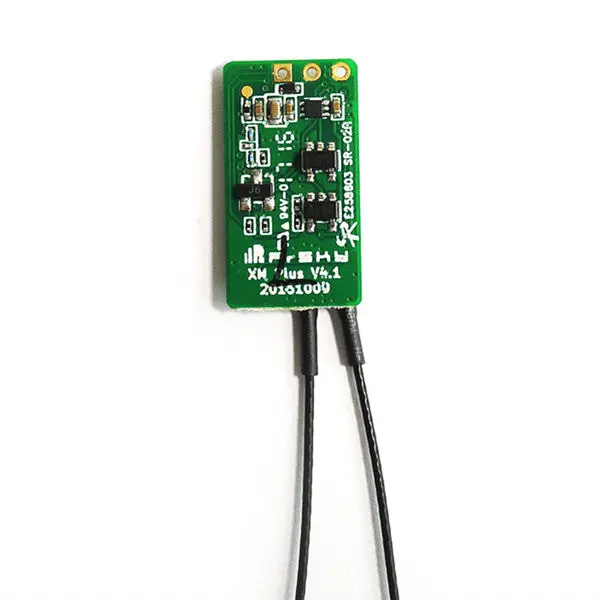

Frsky XM+ Micro D16 SBUS Full Range Receiver

This insanely tiny 2.4GHz diversity receiver available from TBS is the next big thing in miniaturization of racing craft. Weighing in at under 2g, this receiver is perfect for those racers who are looking to lower their AUW. These are rated to “full range”, so identical to your X4R and D4R setups.

Specification
– Dimension: 21.5*12*3.5mm(L x W x H)
– Weight: 1.6g
– Number of Channels: Up to 16CH from SBUS (1-15ch for PWM,16ch RSSI for FC)
– Operating Voltage Range: 3.7~10V
– Operating Current: 30mA @5V
– Operating Range: Full range
– With RSSI output on board: Analog 0~3.3V
– Antenna: 10cm
– Firmware Upgradeable
– Compatibility: FrSky D16 mode
Package Included:
1 X Receiver

,,,
