Description
Specification: Item name: Brushless ESC ESC: 130A Voltage: 22.2v(6s) Plug: EC5 BEC output: 5V@8A Features: 1. Safe power-on function: When the power is turned on, it will not start immediately regardless of the throttle stick in any position. Motor to avoid personal injury; 2. Throttle stroke calibration function: adapt to the throttle stroke of different remote controllers to improve the linearity of throttle response; 3. program setting items (can be set by remote control throttle stick or LED parameter setting card): ●Brake setting: no brake / brake; ●Battery type: Lithium battery / NiMH ● Low voltage protection mode: soft shutdown / hard shutdown; ● Low voltage protection threshold: low / medium / high; ● Start mode: normal / soft / super soft start; ●Advance angle: low / medium / high; ● Restore factory defaults; 4, comprehensive protection features: ●Undervoltage protection: set by the user through the program, when the battery voltage is lower than the protection threshold, Dynamically reduce the output power; ●Overvoltage protection: the input voltage exceeds the input allowable range, it will not be activated, and it will be automatically protected and issued at the same time. The rushing “bibi” warning tone: ●Overheat protection: Built-in temperature detection circuit, automatically reduce the output power when the ESC temperature is too high; ● Remote control signal loss protection: the remote control signal loses power after 1 second, and the output is turned off after 2 seconds without remote control signal;
Package included:

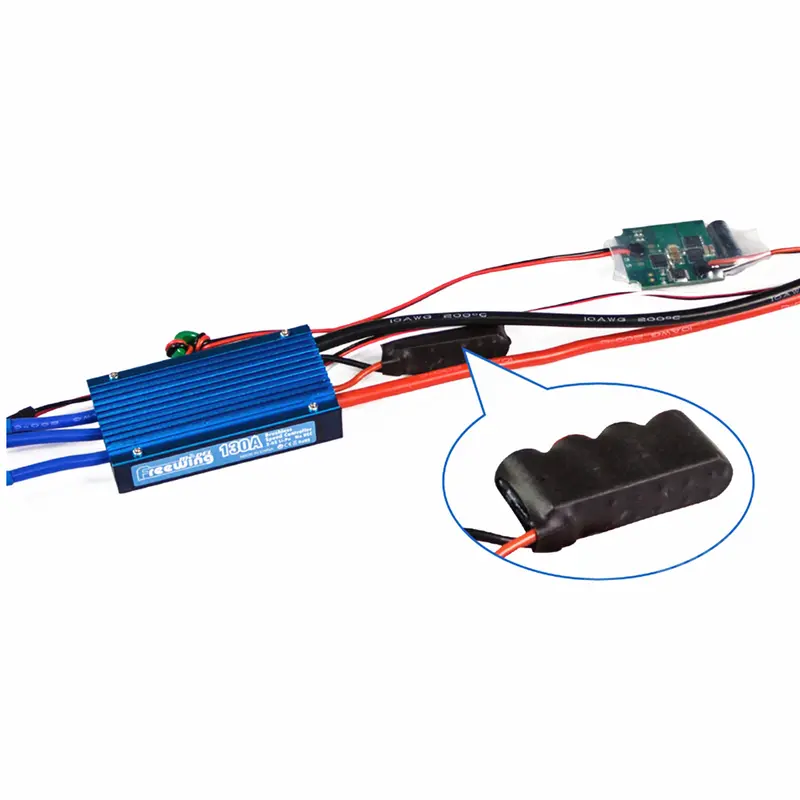

1 x Freewing 130A Ducted EDF ESC for Fixed-wing RC Helicopter Airplane Quadcopter Deluxe Edition
