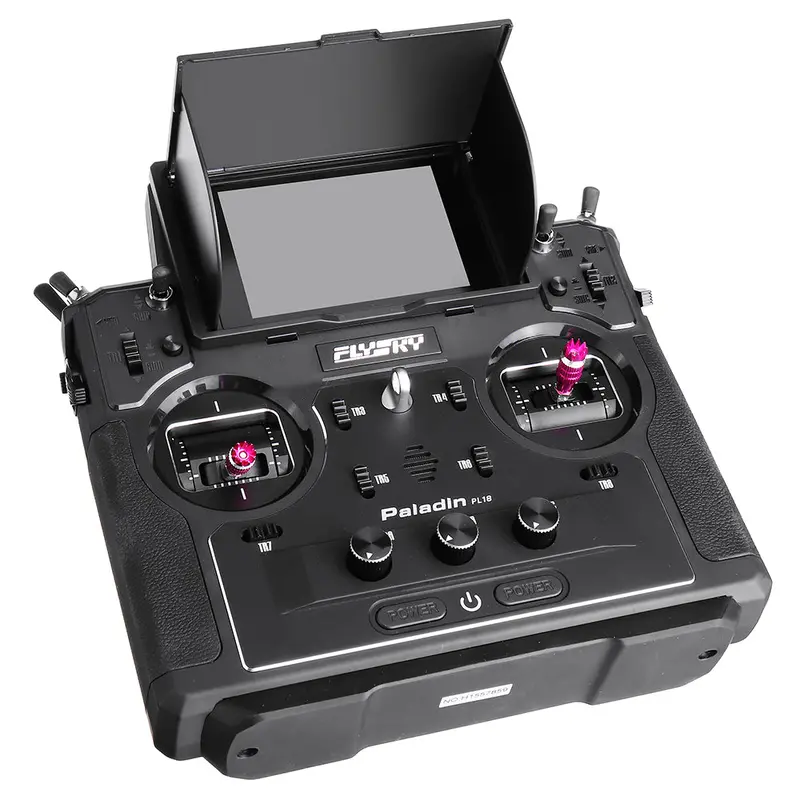

Flysky FS-PL18 Paladin 18-Channel 2.4GHz Transmitter – HVGA Touchscreen, Mode 2, Includes FS-FTR10 Receiver

Description

Flysky FS-PL18 Paladin 2.4G 18CH Radio Transmitter with FS-FTr10 Receiver HVGA 3.5 Inch TFT Touch Screen for RC FPV Racing Drone Airplane Helicopter Vehicle
Specification:
Brand name: Flysky
Item name: FS-PL18 Transmitter
Number of channels: 18
Frequency: 2.4GHz
RF: 2.4GHz RF Power: < 20 dBm
2.4GHz Protocol: AFHDS3 Distance: >3km Channel Resolution: 4096Work voltage: 5V DC
Working current: 130mA
Model memory: 20
Product color: black
Support for updating firmware: yes
Power Input: 1 * 3.7V 4300mAh Lipo Battery
Charging Interface: Micro USB / wireless charging Charging Time: 6h@5V/7h@2A (wireless charging) Lifetime: > 8h Low Voltage Warning: <3.7V Antenna Type: Dual antenna Display: HVGA 3.5″ TFT, 320×480 Language: Chinese and English Simulator: USB Simulator Data Interface: USB, Non-standard interface (USART), PHJACK (PPM)Working temperature: -15 ° C – + 60 ° C
Working Humidity: 20 ~ 95%
Size: 250x280x130 mm
Weight: 946g
Online Update: support
Model Type: fixed-wing, helicopter, crossing machine, multi-axis, engineering vehicle
Certification: CE, FCC ID: N4ZFT1800, RCM
Receiver:

Feature:
FRM301 module  It is the fastest and lowest latency module developed by FLYSKY.  Minimum delay: 3mS (faster than Frsky and Futaba, slower than SANWA) GPS, spectrum analysis, ambient lights and other functions will be come ture in the near future firmware Wireless bluetooth, wireless charging and other functions should by Update firmware
Free to Switch Types, Handy with 18 Channels -For the first time fixed-wing, helicopter, FPV, multicopter and construction vehicles are all supported with one transmitter. Switch model types and play with 18 customizable channels.  -Smash all boundaries and do things your way with the Paladin PL18. Adjustable high precision HALL gimbal technology -The high-precision hall gimbals are easy to set up for left- or right-hand throttle, have adjustable spring tensioning, as well as adjustment for dampening and max/min movement angle. Third Generation RF Technology, Detachable RF Module -AFHDS 3 is the latest generation of RF technology developed by FlySky, especially for the PL18. AFHDS 3 is designed to be an all in one configurable, low latency (5ms), stable protocol for use at longer ranges (up to 3.6km), even in the presence of interference.  -The PL18 is designed to be compatible with many different detachable RF modules making the PL18 one of the most flexible FlySky products.  Dual Omnidirectional Antennas -The unique design of the combination of omnidirectional and directed of the antennas guarantee make the signals stable, and greatly improve the control distance and antijamming capability.  With the PL18, you will be the center of high sky and vast sea.  -PL18 uses two omnidirectional antennas in order to guarantee a strong, stable signal at longer ranges. Distance up to 2KM. Super Cruising Ability, Racing without Stop -The PL18’s built in battery has a capacity of 4300mAh, meaning that the system will get over 8 hours of use between charges. Flysky OS is a feast for the eyes -The PL18 has a 320*480 capacitive color touch screen, amazing FlySkyOS firmware available in both Chinese and English languages. -OS design: mixing, curve, timer and reverse, voice, vibration and other functions.
Wireless charging, USB charging and Voice / vibration prompts USB simulator (For use with flight simulation software) Compatible with FTr10 and FTr16s receivers and Copy and paste model data Customizable switches and Trainer function Stable signal even with over 40 transmitters being used at the same time
Package Included:
1 x FS-PL18 Transmitter
1 x FS-FTr10 Receiver
1 x FTr16S Receiver
1 x Sun cover for screen 1 x L springs (packet) 1 x S springs (packet) 1 x Packet of Alloy Anti-slip control stick ends 1 x 3-way switch 1 x 2-way switch 1 x Micro USB cable 2 x Big Hand Grips
