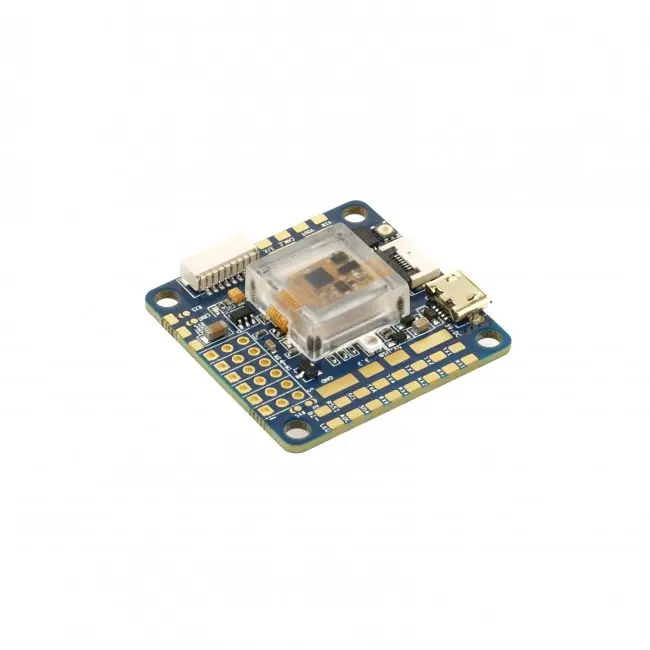

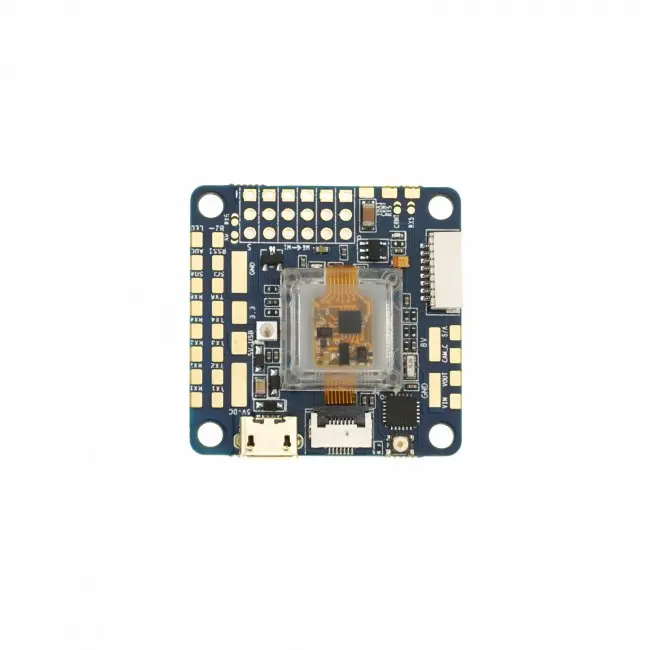

Original Airbot OmniNXT F7 Flight Controller OSD 5V/8V BEC MPU6000 Gyro ICM20608 32khz 3-6S
The OmniNXT F7 is Airbot’s top of the range flight controller based on the newly designed NXT architecture. It uses the trusty MPU6000 Gyro with an additional ICM20608 on top. With the onboard damping box, the gyros run perfectly under 32k looptime. If you haven’t already seen it, you should check out Josh’s awesome video on different IMUs. The NXT also comes with 2 different BECs and 6 UARTs. OmniNXT F7 supports 3-6s LIPO direct input, built-in BEC for camera and power Filter.
Specification:
Brand name: Airbot
Item name: OmniNXT F7 Flight Controller
F7 MCU processors
Two gyros onboard: MPU6000 for sampling up to 8khz and ICM20608 for sampling up to 32khz
30.5×30.5mm Mounting holes
Supports 3-6S Lipo
Built-in 5V 1A BEC output (Buck)
Built-in 8V 1A BEC with LC filter output for the camera and VTX (Buck)
STM32 controls OSD chip over SPI in DMA mode (Betaflight OSD)
Current sensor: NO
More caps to reduce power noise
Port for easy connection to Airbot 4-in-1 esc (SH1.0 8P)
Solder pads added for SmartAudio and Camera Control
Package Included:
1 x OmniNXT F7 Flight Controller
