A2212 Brushless Outrunner Motor – Single Unit, Multiple KV Ratings (930–2700KV) for RC Planes, Multirotors & UAVs

Description

A2212 Brushless Motor 930KV 1000KV 1400KV 2200KV 2700KV For RC Aircraft Plane Multi-copter Brushless Outrunner Motor

Hot!!Giveaway: 3.5MM banana head and heat shrinkable tube.

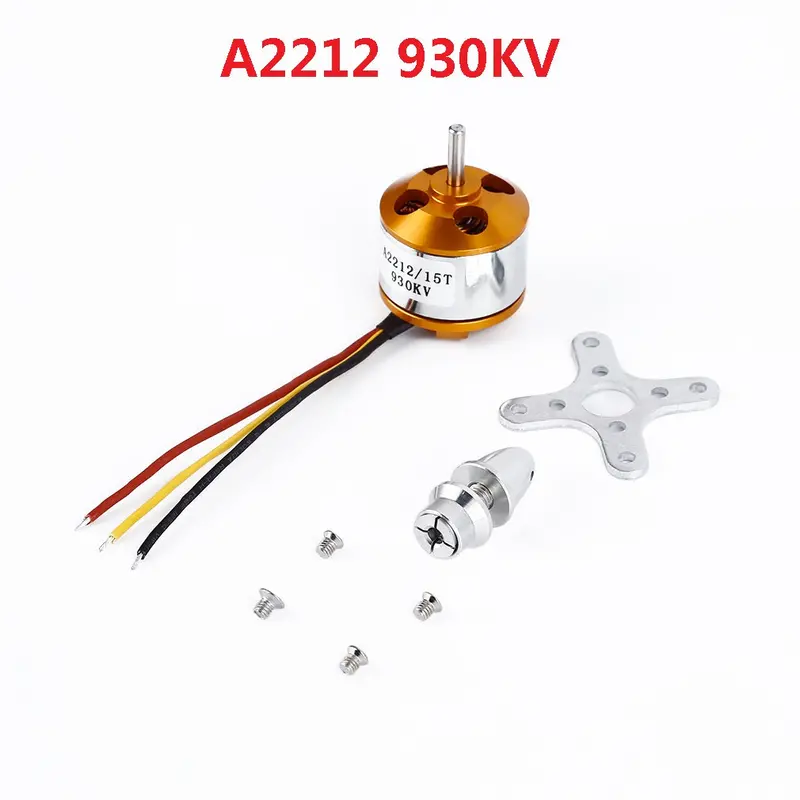

XXD A2212 930KV brushless outrunner motor:

– Mode:Wester A2212 – KV: 930 / 1000 /1400 /2200 according to your order – Max Efficiency: 80% – Max Efficiency Current: 4-10A (>75%) – Current Capacity: 12A/60s – No Load Current @ 10V: 0.5A – No. Of Cells: 2-3 Li-Poly – Motor Dimensions: Φ27.5 x 30mm – Shaft Diameter: Φ3.17mm – Weight: 47g

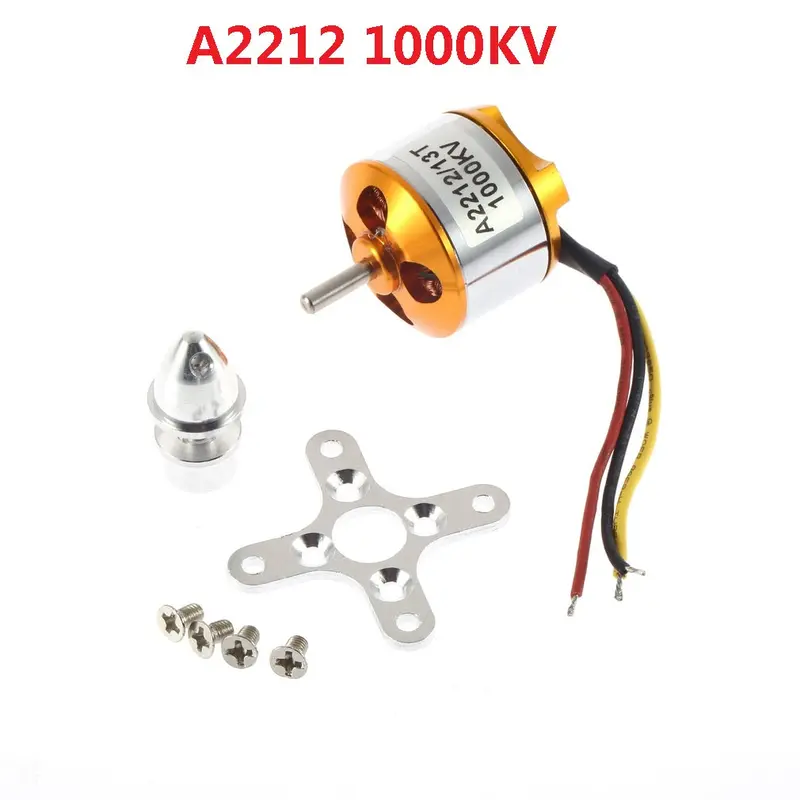

XXD A2212 1000KV brushless outrunner motor:
KV: 1000
Max. efficiency: 80%
Max. efficiency current: 4-10A (>75%)
Current capacity: 12A/60s
No Load current @ 10V: 0.5A
No. of cells: 2-3 Li-Poly
Motor size: 27.5 * 27mm / 1.1 * 1.1in
Shaft diameter: 3.17mm / 0.1in
Weight: 48g / 1.7oz

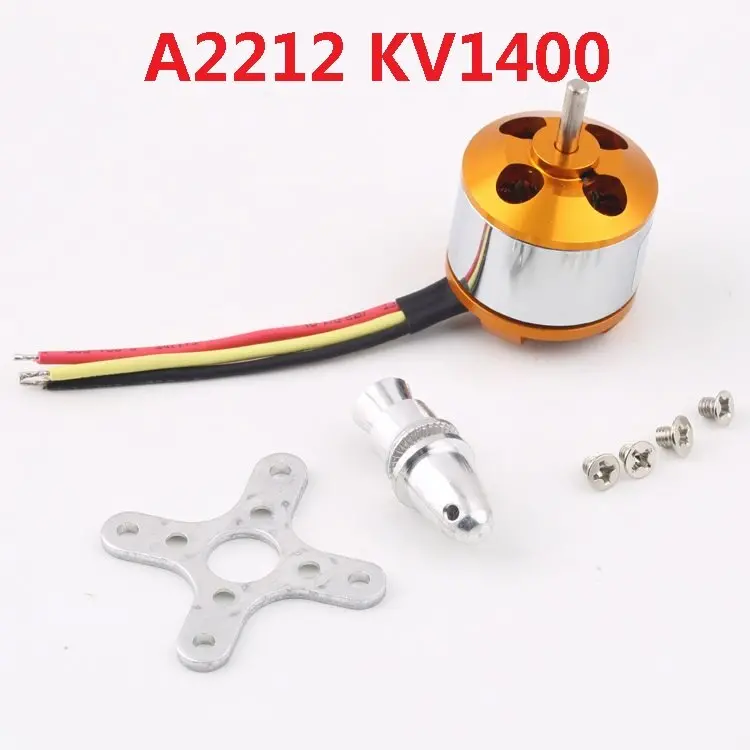

XXD A2212 1400KV brushless outrunner motor:

– Shaft diameter: 3.17mm
– Dimension : 27.8mm x 27mm
– Recommended Propeller: 2-cells 7*3.5 , 3-cells 6×3

– Weight: 48g

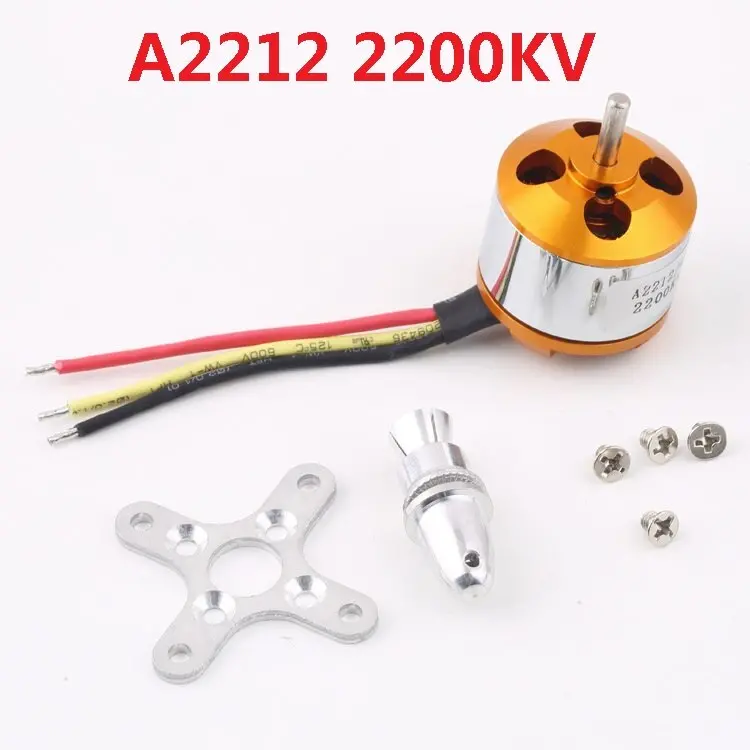

XXD A2212 2200KV brushless outrunner motor:

• Max Efficiency: 80%
• Max Efficiency Current: 4-10A (>75%)
• Current Capacity: 12A/60s
• No Load Current @ 10V: 0.5A
• No. Of Cells: 2-3 Li-Poly
• Motor Dimensions: ?27.5 x 30mm
• Shaft Diameter: ?3.17mm
• Weight: 47g

XXD A2212 2700KV brushless outrunner motor:

Rpm/V: 2700KV
Net Weight: 50g
Weight: 60g
Motor Dimensions: 27* 26mm
Battery Opernating: 2-3 Lipo
Idle current: 1.8A
Load current: 18.5A
Power (Watt): 240
ESC(A): 30A,20A
Peak.Amps :14-22 A
