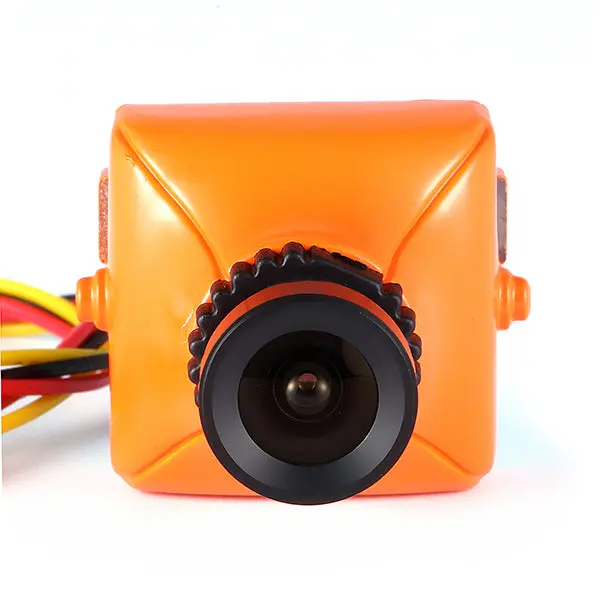

700TVL CMOS Mini FPV Camera – DC 5–12V, Wide-Angle Lens Options (2.8mm/3.6mm), 90° FOV

Description

700TVL DC5V-12V Mini FPV Camera 2.8mm 3.6mm Wide Angle For FPV Racer Drone QAV210 250 Description: Resolution: PAL: 1020H×596V/NTSC: 1020H×508V   Effective Resolution:  PAL: 976H×582V/ NTSC: 976H×494V  Format: PAL/NTSC  Pixel(Horizon): 700TVL
FOV : 90 degree Output: 1.0Vp-p/75Ω Auto Gain:  0.25/0.50/0.75/1.00,  4 grades adjustable, up to 55dB WB: ON/OFF Exposure:  EE Shutter:  1/50(1/60) – 1/100000 second Gamma Correction:  0.45/1.0 Sync System : inter-sync Lens: Standard 2.8mm, 3.6MM optional
Lens Screw : M12 Voltage : DC12V(Wide Voltage, measured working voltage 7.5V-13V)   Current: 70mA(low power consumption) Working Temp.:  -20℃–60℃ Wetness: 0%~98%  Size: 25mm*25mm Weight: 13g     Package Included: 1 x Camera
