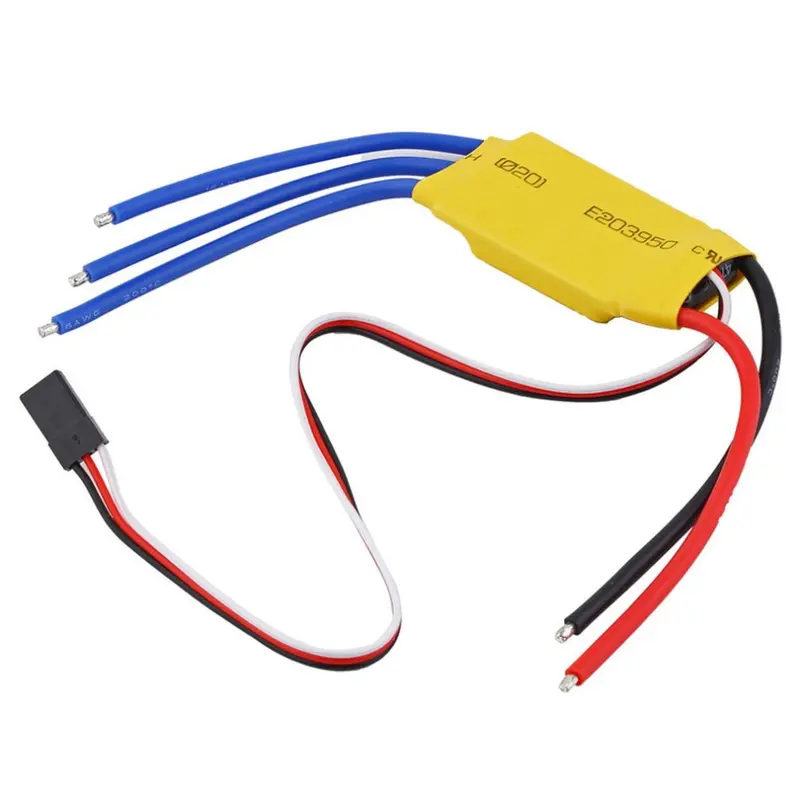

XXD HW30A 30A Brushless ESC for 450-Class RC Helicopters & FPV Mini Quadcopters

Description

XXD HW30A 30A Brushless Motor ESC For Helicopter Airplane Quadcopter Drone   Feature: -Best choice for 450 calss Helicopter. -Best performance for 3D fly. -Safe power function:regardless of the throttle stick in any position the motor will not start immediately
-Throttle Calibration function:Adapt to different remote throttle travel difference, improve throttle response linearity, with a smooth, delicate feel and excellent speed linear speed
-Low Voltage Protection Mode ,Low-voltage protection threshold   Specification:
BEC Power: Yes
Cut Off Voltage: 4V
BEC: Yes
BEC Power: 1.5A/5V
BEC: 2A
Reset: Throttle Lowest Con.
Power input: 5.6V – 16.8V (2-3 cells Li-Poly, OR 5-12 cells Ni-MH Ni-MH / Ni-Cd battery)
Constant current: 30A (Max 40A less than 10 seconds)
Battery Range: 2-3 Cells
Weight: 25g
Dimensions: 45 x 24 x 11mm   Note:
4S lipo not allows to use the BEC.
Please don’t use this ESC on any airplane with big current or big voltage,otherwise it will burn the ESC.   Pakacge Included:
1 x HW30A Brushless ESC

(Tips: 30A works with 930KV-1400KV motor )
