Description

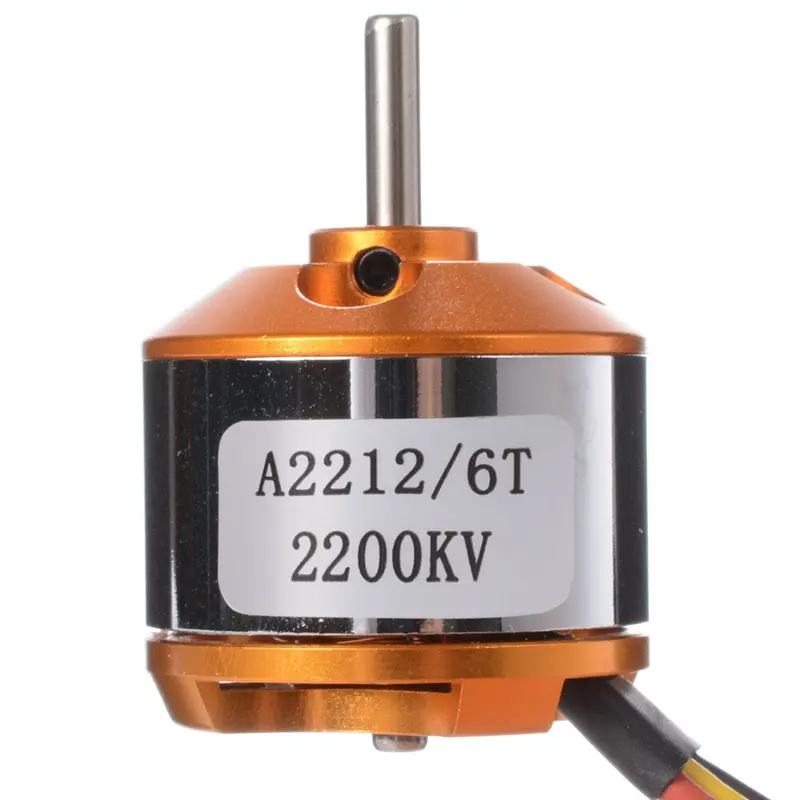

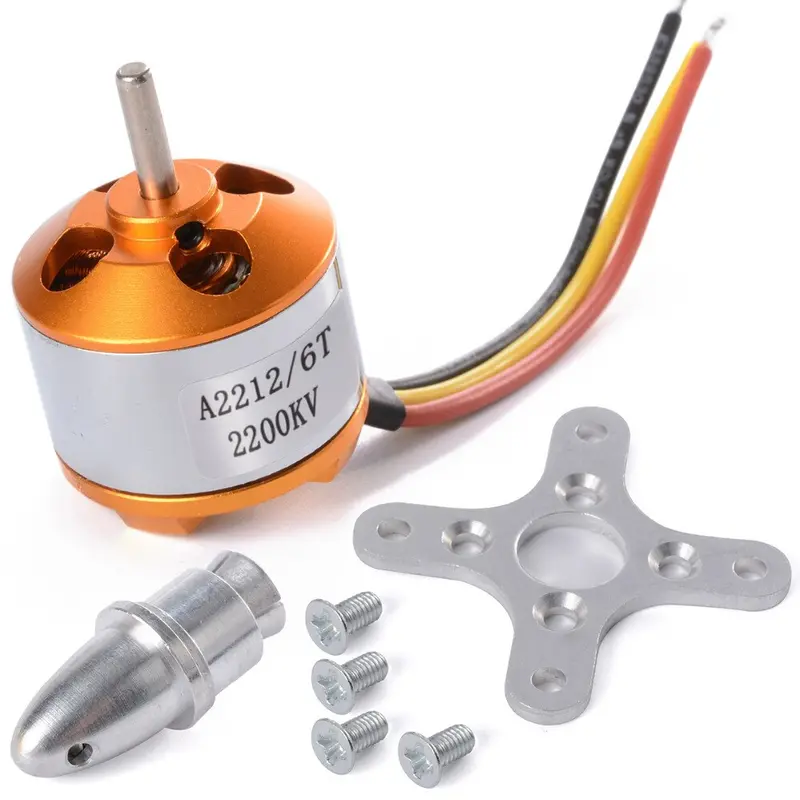

Motor:
- Rpm/V : 2200KV
- Weight :47g
- Motor Dimensions :27.5mm*30mm
- Shaft Size:3.17mm
- Battery Opernating :2-3 Lipo
- Current :1.4 A
- Peak.Amps :14-22 A

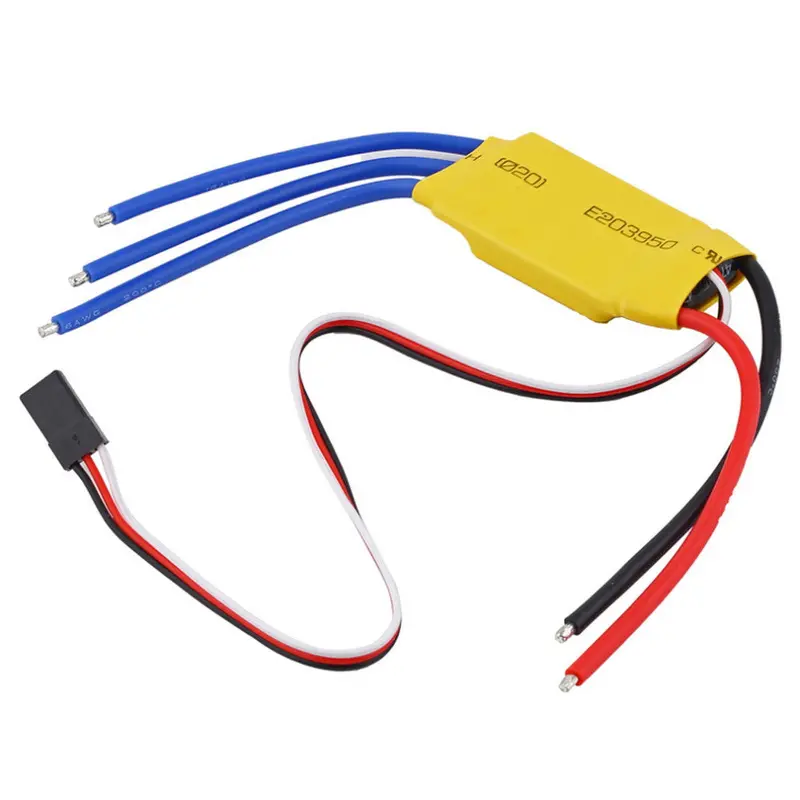

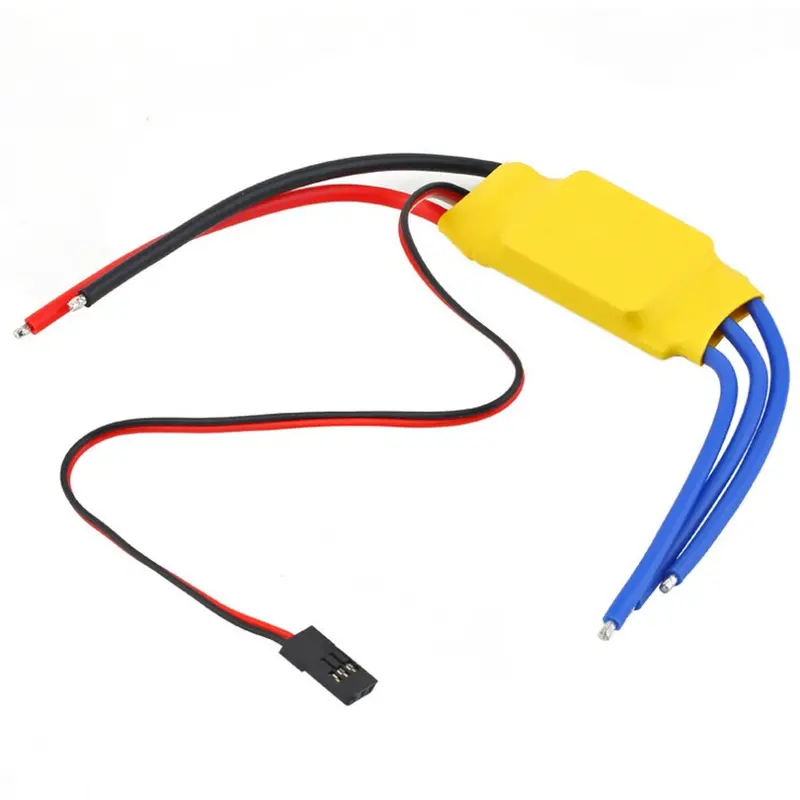

ESC:
- ltems :30A
- Weight :23g
- Dimensions:45.0*24.0*9.0mm
- Current(A):30-40
- BEC :3A
- PWM:N/A
- Li-Po :2-3
- Ni-Mh/Ni-cd :4-10Ni-Mh
- Constant current 30A Max 40A <10s
- Li-Poly 2-3 cells; Ni-MH 4-10 cells Auto Detect
- Break On/Off;
- Auto Low battery Slow down at 3.0V/cell Lipo, cut-off at 2.9V/cell Lipo
- Note: Timing and P WM can be programmable if required. Currently we just want to keep this product simple and easy to use for Beginers.
According to our experience Too complex of the small ESCs only make more trouble and need more effort of supporting.
