Description
Description: Brand: XLPOWER Item: MSH PROTOS 480 RC Helicopter Length: 928mm Height: 270mm Width: 148mm Main blade size: 425mm – 480mm Tail blade size: 68mm Motor pinion: 15-25T 5mm Diameter(15T include) Helical CNC Main gear: 108T Tail Pinion: 22T Autorotation Gear: 94T Main to Tail Gear Ratio: 4.9 RTF Weight: 1800g Approx. Max battery size: 44*47*140mm Motor: 4015-880KV Motor DS512HV Servo: Working Voltage: 6.0-7.4V No-load Speed: 0.067sec/60°@6.0V/0.055sec/60°@7.4V No-load Current: 60mA@6.0V/70mA@7.4V Stall Torque: 8kg.cm@6.0V/ 10kg.cm@7.4V Rotation: 180°±10° Neutral: 1500us Opetating Angle: 90°(1000-2000us) DS747RS Servo Working Voltage: 6.0-8.4V No-load Speed: 0.058sec/60°@6.0V/0.047sec/60°@7.4V/0.040sec/60°@8.4V No-load Current: 80mA@6.0V/90mA@7.4V/100mA@8.4V Stall Torque: 5kg.cm@6.0V/ 6kg.cm@7.4V /7kg.cm@8.4V Rotation: 180°±10° Neutral: 750us Opetating Angle: 90°(1000-2000us) Platinum 60A V4 ESC: Type: Brushless Specifications: Cont./Peak Current: 60A/80A Input: 3-6S Lipo BEC: 5-8V, 7A Output Connectors: 3.5mm Gold Connectors(Female)

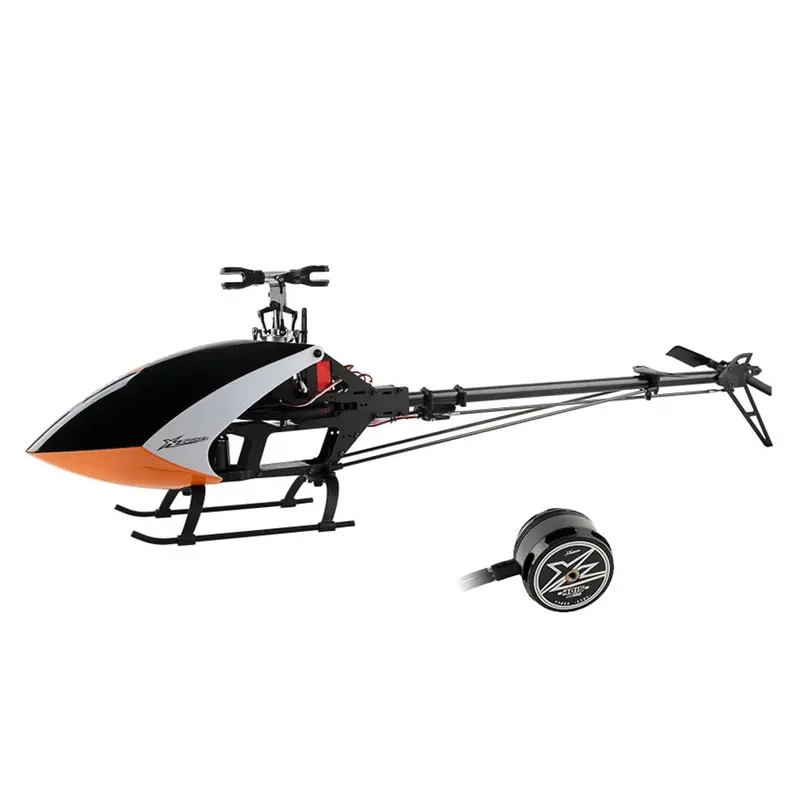

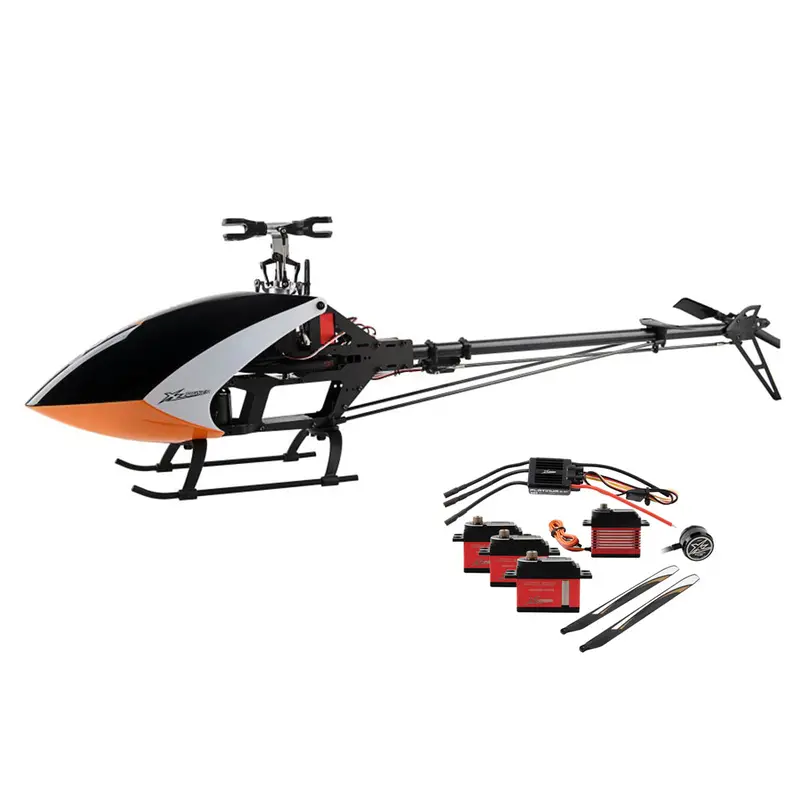

Manual: Click here Package List (It is optional): Helicopter Kit Version: 1* Helicopter Kit (without the main blade) Helicopter Kit + Motor Version: 1* Helicopter kit (without the main blade) 1* 4015-880KV Motor Combo Version: 1* Helicopter Kit (included the main blade) 1* 4015-880KV Motor 3* DS512HV Servo 1* DS747RS Servo 1* Platinum 60A V4 ESC 2* RT480 Main Blade
