Description
EL0003727
Specification:
-
100% brand new with high quality
-
Type: High-current version, Single-channel version, Two-channel version, Four-channel version
-
Plug into the receiver’s CH3 socket, and you will be able to control the car light via the CH3 of the remote receiver.
-
The single-channel control version and the high-current version are simple switches, without flashing and BLN Control functions.
-
Single-channel and two-channel version: Max load: 5V 1A
-
High-current version: Input voltage: 5V-24V, current: 5A Inrush current: 10A
-
Four-channel version: Input voltage: 5V-24V, max load of each single channel is 3A
Functions:
-
Single-channel version: On — Off — On — Off…
-
Two-channel version: two channels output light up at the same time — Channel A lights on, and Channel B turns off — Channel A turns off, and Channel B lights on — 2 channels flashing one by one — 2 channels flashing at the same time — 2 Channels BLN lighting effect — (move in circle)
-
High-current version: On — Off — On — Off…
-
Four channel version: Horse race lamp mode — 4 channels flashing one by one — Channel 1 & 3, Channel 2 & 4 Flashing one by one — 4 channels flashing at the same time — 4 channels light up at the same time — 4 Channels BLN Mode — Channel 1 and Channel 3 light up, and the other 2 channels turns off — Channel 2 and Channel 4 light up, and the other 2 chancels turns off — Channel 1 and Channel 4 light up, and the other 2 channels turns off — Channel 2 and channel 3 light up, and the other 2 channels turn off — Channel 1 and channel 2 light up, and the other 2 channels turn off — Channel 3 and Channel 4 light up, and the other 2 channels turn off — 4 Channels all turn off … (move in circle)
Package Included:
-

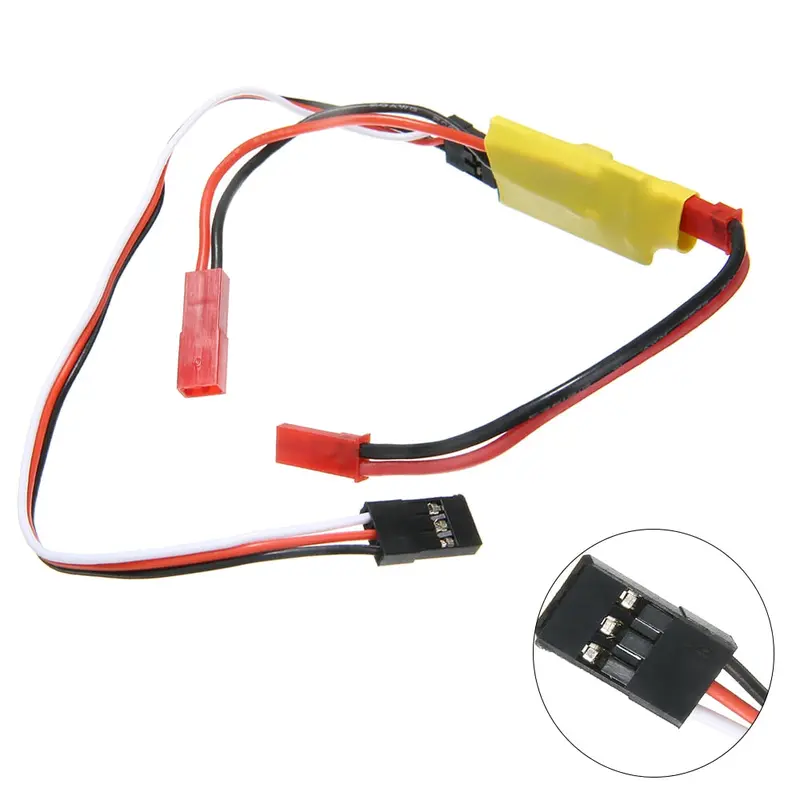

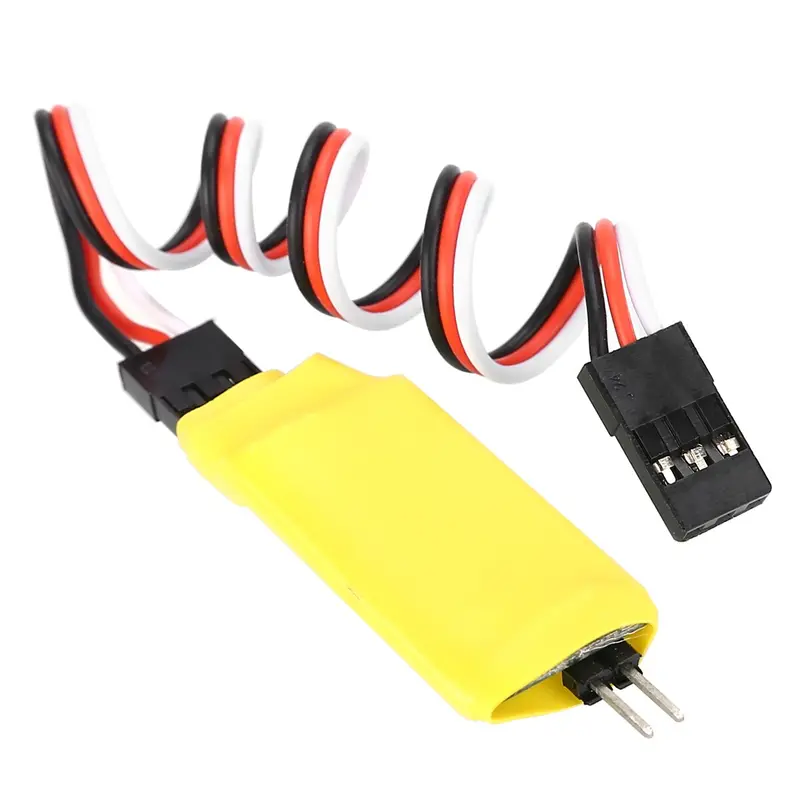

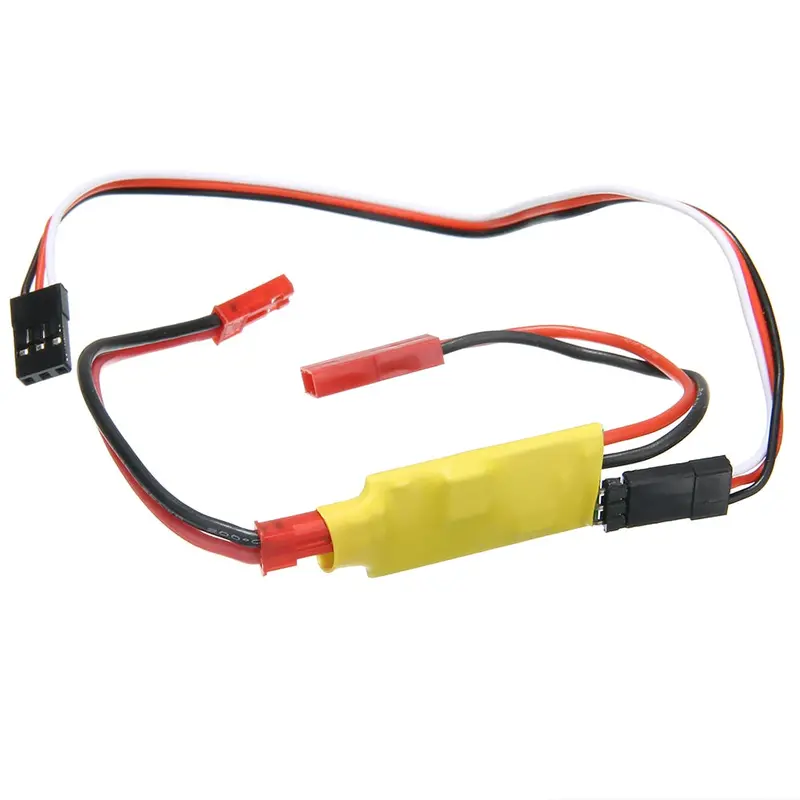

1 x RC Receiver Controlled Switch
Note:
-
Please allow minor error due to manual measurement.
-
The colors may be a little difference for the different monitor display.
