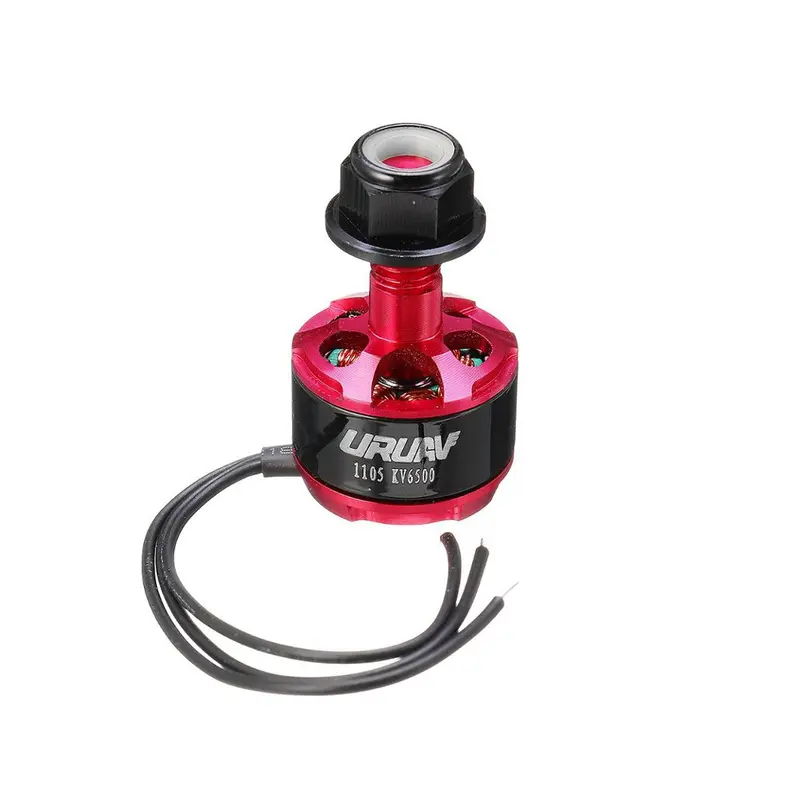

URUAV ZD1105 Brushless Motor — Dual KV Options (5500/6500), CW Rotation, Optimized for 2S–3S FPV Multirotors

Description

URUAV ZD1105 5500KV 6500KV 2-3S Brushless Motor CW for RC Drone FPV Racing Multirotors
Specification:
Brand name: URUAV
Item name: ZD1105 brushless motor
KV: 5500KV, 6500KV (option)
Thread: CW
Support battery: 2-3S
Configuration: 9N12P
Support battery:
Shaft diameter: Φ2.0
No-load current: 0.6A/ 0.9A
Motor dimensions: Φ15.6*H12.4
Internal resistance: 304MΩ/ 197MΩ
Enameled wire dimensions: 0.24/ 0.28
Turns No.: 7T/ 6T
Max. power: 60W/ 75W
Max. current: 8A/ 10A
Weight(lncl.Cable): 8.1g
Weight(Excl.Cable): 7.9g
Package included:
1x ZD1105 brushless motor
