URUAV UR18 Branch Frame Kit – 130mm Wheelbase, 2.5-Inch Stretch Design with Carbon Fiber Construction for FPV Racing Drones

Description

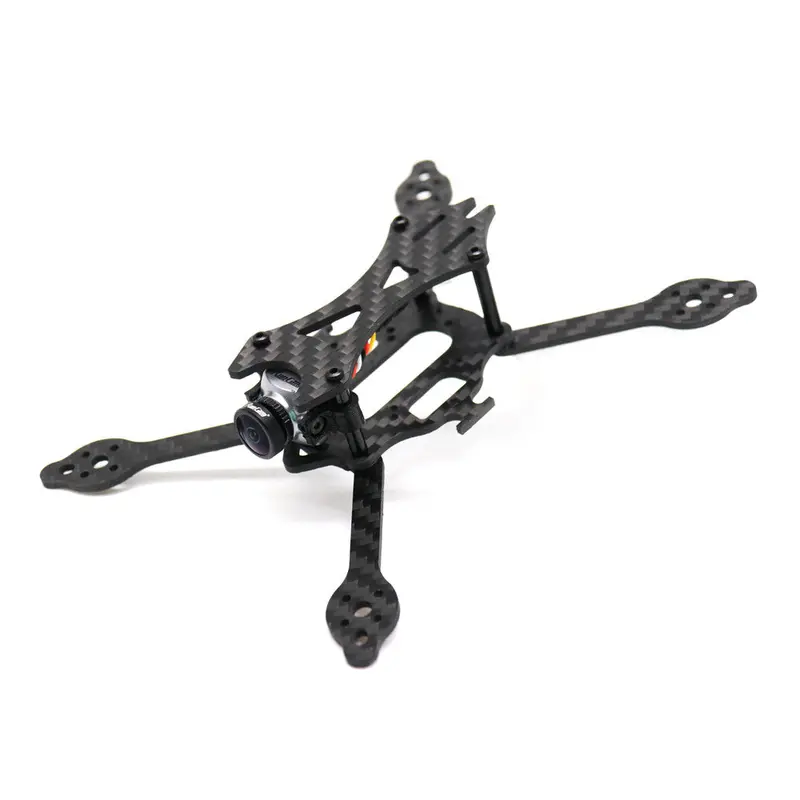

URUAV UR18 Branch 130 130mm Wheelbase Stretch X 2.5 Inch Carbon Fiber Frame Kit for RC Drone
Specification:
Brand Name: URUAV
Model: UR18 Branch 130
Item Name: 130mm Wheelbase Stretch X 2.5 Inch Racing Frame Kit
Wheelbase: 130mm
Material: Carbon Fiber
Upper Plate Thickness: 2mm
Arm Plate Thickness: 2mm
Bottom Plate Thickness: 2mm
Standoff Height: 19mm
Weight: 14.9g
Recommend Parts:
Flight Controller: 16x16mm / 20x20mm F3/ F4 Flight Controller ( M2)
Brushless ESC: 16x16mm / 20x20mm 10-30A ESC ( M2)
Brushless Motor:  11xx series motor ( mounting hole: M2 9×9)
Propeller: 2.5 Inch Propeller
FPV Camera: 14x14mm FPV Camera
Lipo Battery: 2-3S Lipo
The following Parts are compatible: ( Not Included)
FC & ESC Stack: 16x16mm HAKRC F4 OSD 2S Flight Controller & 10A  4in1 ESC
LDARC 20x20mm 20A BL_S ESC & F4 OSD Flight Controller
Brushless Motor: Racerstar  BR1104 1104 6500KV 2-3S Brushless Motor
T-MOTOR F15 1106 6000KV 2-3S Brushless Motor
Propeller: HQProp T2.5X2.5X3 3-blade 2.5Inch Poly Carbonate Propeller
4 Pairs Gemfan Flash 2540 2.5×4 2.5 Inch 3-Blade Propeller
FPV Camera:  Foxeer Nano Predator 4 1000TVL  Super WDR FPV Camera
Lipo Battery: Gaoneng GNB 2S HV 7.6V 550MAH 50C/100C Lipo Battery XT30
Package Included:
1x URUAV UR18 Branch 130mm Frame Kit
1x 4x M2*19 Standoffs
4x M2*6 Screws
4x M2*8 Screws
4x M2 Anti-vibration Pad
