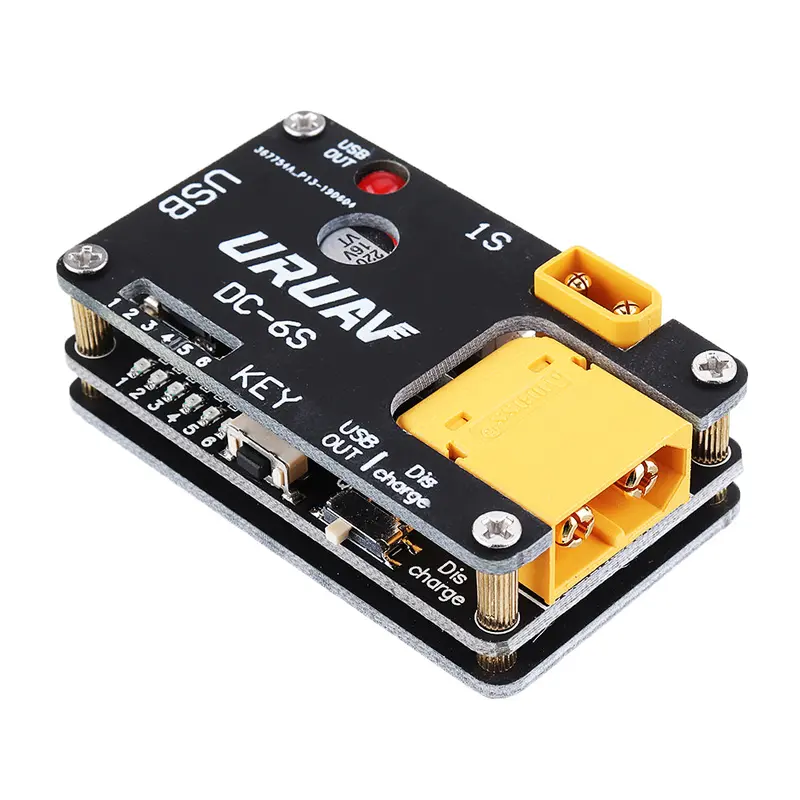

URUAV Dual-Mode DC Charger/Discharger – 1–6S Support with XT60/30/PH2.0 Inputs & USB Output

Description

Charge parameter:   Input voltage: 11.4-25.2V(3-6S) Output current: 5V@3A,9V@2.5A,12V@2A Support protocol:  QC2.0/QC3.0, DCP/A.pple/S.amsung/                                BC1.2/MTK PE1.1/PE2.0 FCP/SCP/SFCP   Discharge parameter:   Number of battery: 1-6S Discharge current: 50MA Battery interface: XT60,XT30,PH2.0 Battery type: Lipo Indicator status: LED Size:51*30*18mm   Charge Method:   1.Toggle the switch to charge the USBOUT. 2.Select the battery input voltage, press “KEY”, switch the corresponding LED Light. 3.With Red LED Display 4.USB Output,for m.obile phone devices.   Discharge Method:   1.First,determine the battery type and cells, toggle the switch to discharge,and press the “KEY” button to adjust the voltage cells,corresponding to the LED light. 2.Connect the battery to XT30, XT60 or PH2.0 port. 3.The LED light is on, indicating that the discharger is still in the discharge state. When the LED light is off,the discharge is finished.   Packaging Included:   1X URUAV DC-6S Charger
