Description
Pin Assignment:
Dimension:
Frequency:
Specification:
Brand: Turbowing Weight:3g (antenna include)
Electrical Characteristics:
Frequency band:5362-5945 MHz
Channel customer:48
Modulation:FM
Channel SEL.:Touch Switch
Channel Indicate:CHI-CH8 Channel indication with 4 LEDS and A~B frequency group Indicate with 3LEDS
Transmit power:13 ±1dBm
Frequency control:PLL
All harmonic:Max-50dBm
Frequency Stability: ±100KHz(Typ.)
Frequency precision: ±200KHz(Typ.)
Channel Carrier error:1dB
Antenna Port:50Ω
Input format:NTSC/PAL
SENSOR:PAL:720X540/NTSC:640X480 1/4″
LENS ANGEL:H:120°/V:100°
Power consumption:200~215MA@5V DCIN
Supply Voltage:2.9-5.5v
Operating Temperature:-10℃~+60℃
Profile dimension:14mmX12mm+18mmX17.5mm(TX)
Features:

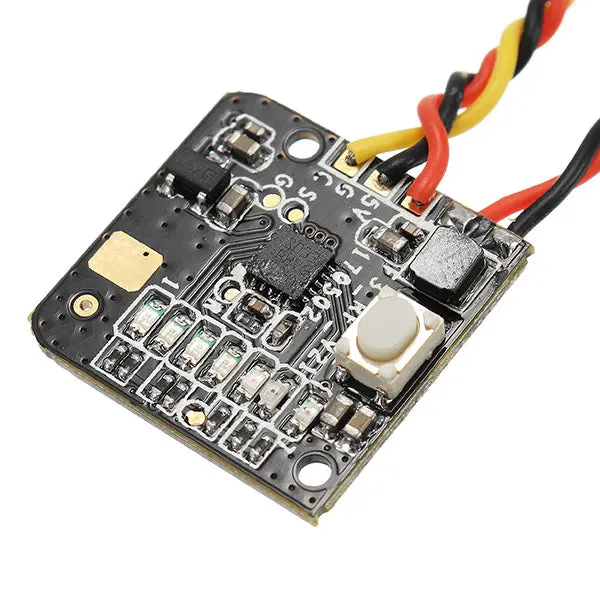

1.This product 5G8-TX V12 is a 5.8G wireless camera
2.48 Channel
3.Support touch switch select channel Frequency group
4.4LED display channel and 3LEDS display frequency group information;
5.Wide angle lens
6.Miniature and light weight design
Note:This product on the premise of guarantee power and thermal optimization design with the appearance of Super mini and light weight, especially suitable for the small rotor and ultralight aircraft, The new filter improves the launch of the new filter waves effectively restrain higher than 5.8 g of higher harmonic interference, reduce the emission of harmful waves, the principle of which is a fixed low pass filter, he can make below 5.8 g waves pass, for above filter frequency waves to Hinder the attenuation
Package Included:
1 x 5.8G 48CH FPV transmitter
1 x Cable
1 x Copper Tube Gain Antenna
