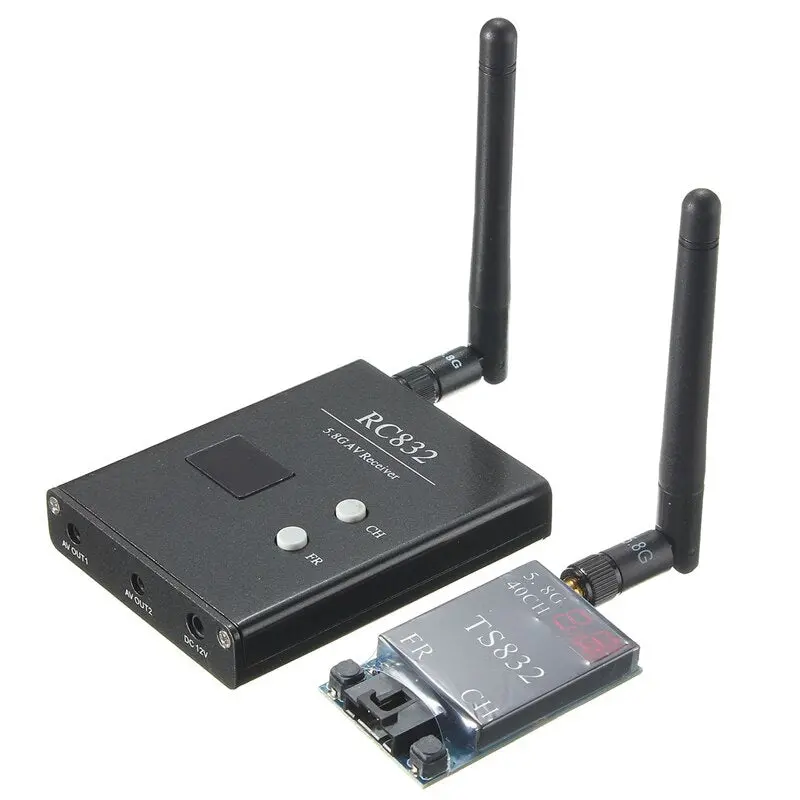

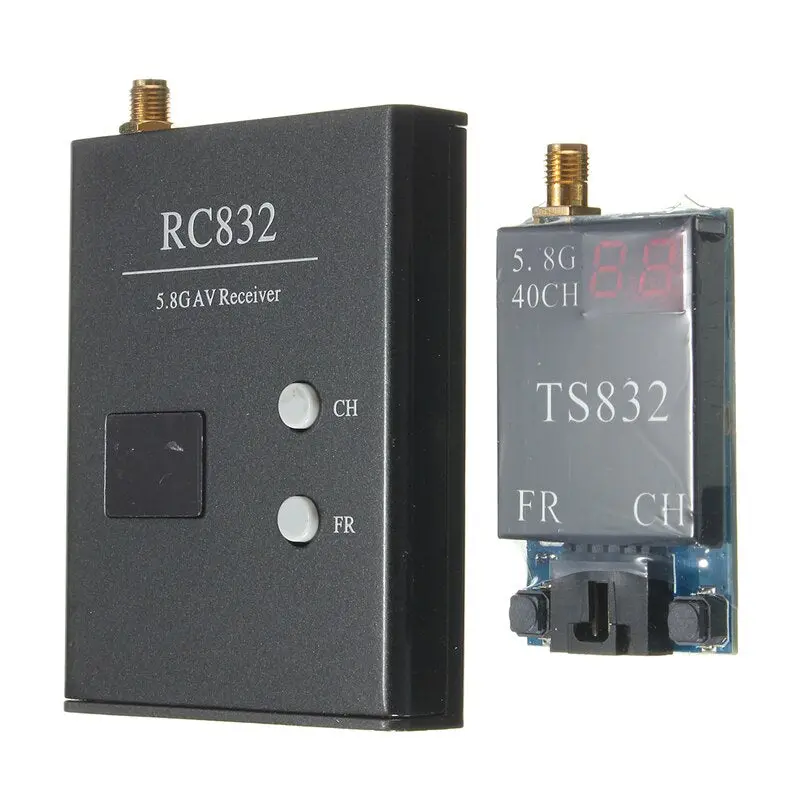

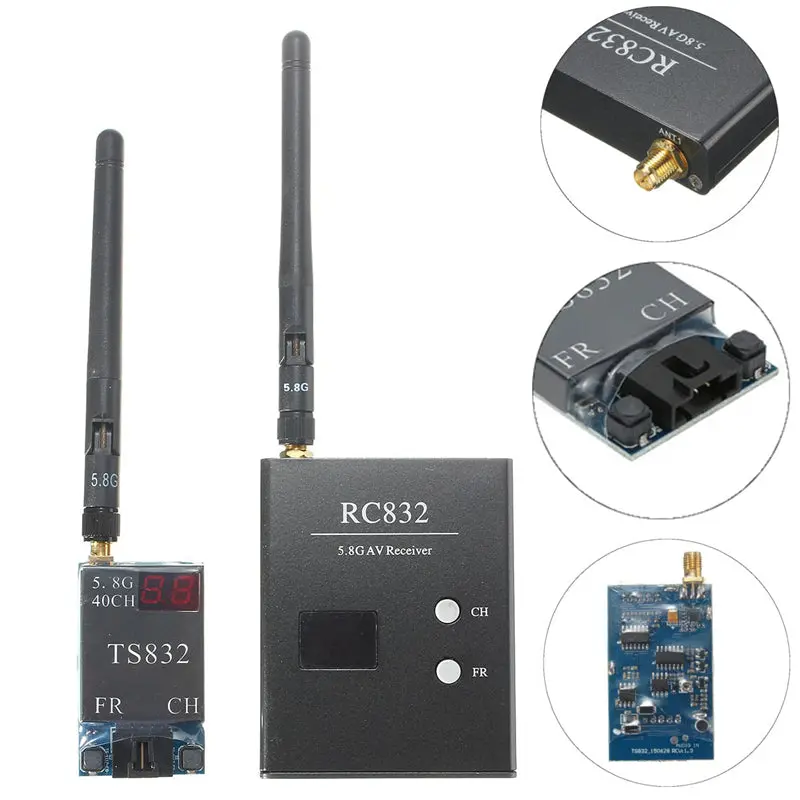

TS832 5.8GHz 600mW AV Transmitter (40CH) + RC832/TS5823/TS5828 Receiver Set – Long-Range FPV Video Link for Racing Drones

Description

 Specifications:Video format supported: NTSC/PALAntenna connection: RP-SMA, jack (module side, both TX and RX) RC832 Receiver Feature:48 channels: Cover A, B, C,D,H,L 6 bands and all frequencies compactable.Two switching buttons: CH button for frequencies channels switching, FR button for frequencies bands switching.Two digits display: one for CH and the other for FR, real-time positioning which frequency band and which channel received.Power off memory: Replay the very last frequency band and channel.Independent video and audio signal outputs.
Receiver RC832:Channel:48CH Power input: DC 12VConsumption current: 200mA maxAntenna Input Impedance: 50OhmAntenna Connecter:SMAAntenna Gain: 2dBiRx Sensitivity:-90dBmVideo Outout Level: 75Audio Outout Level:10Video format: NTSC/PAL autoDimension: 80x 65 x15mmWeight: 85g

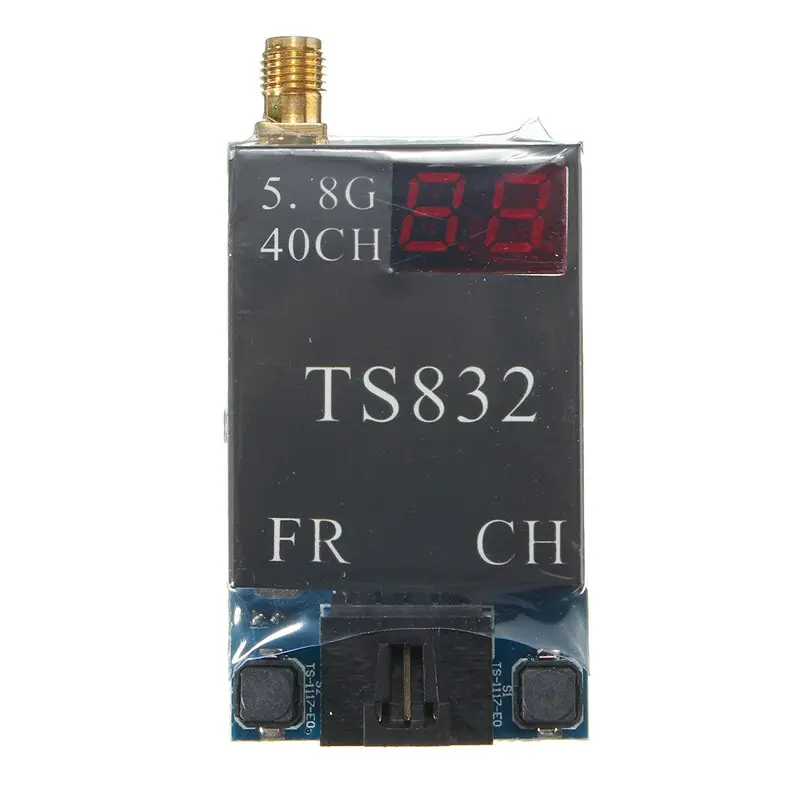

TS832 Transmitter Features:This is 40-channel transmitter of 5.8G 600mW A/V wireless system.40 channels: Cover A, B, E, F and G band (Air wave band).Digital phase-locked loop circuit, no channel drift issues.Two switching buttons: CH button for frequencies channels switching, FR button for frequencies bands switching.Wireless transmission distance up to 800 meters without any obstacles and interfering signal( Actual transmission distance depends on specific environment).Small size, light weight, easy to carryThis item is only can transmit the picture and video without voice.
Transmitter TS832 :Channel:40CHOperating Temperature: -10~+85Frequency: 5.8GTransmitting Power: 600mAOperating Volatge: 7-16VVideo Format: NTSC / PAL AutoWorking Current: 220mA/ 12VAudio Bandwidth : 6.5MHzVideo Bandwidth: 8MHzAudio Input Impedance: 10K OhmVideo Input Impedance: 75 OhmDimension: 54x 32x 10mm(excluding antenna)Weight: 22g
Frequency Range:FR1 5865,5845,5825,5805,5785,5765,5745,5725FR2 5733,5752,5771,5790,5809,5828,5847,5866FR3 5707,5685,5665,5645,5885,5905,5925,5945FR4 5740,5760,5780,5800,5820,5840,5860,5880FR5 5658,5695,5732,5769,5806,5843,5880,5917
TS5828 Specifications:
Transmitting unit weight: 7.3g (excluding antenna)
video format supported: NTSC/PAL
Working frequency: 5645-5945Mhz
Power input: 7-24V
Transmitting current: 190mA 12V
Video band width: 8M
Audio coding: 6.5M
Dimension: 30*20*8mm (excluding antenna)
Package Contents:1 x TS382 Transmitter1 x RC832 Receiver2 x 5.8G Antenna3 x Cable1 x User manual ,,,,,,,,,
