Description

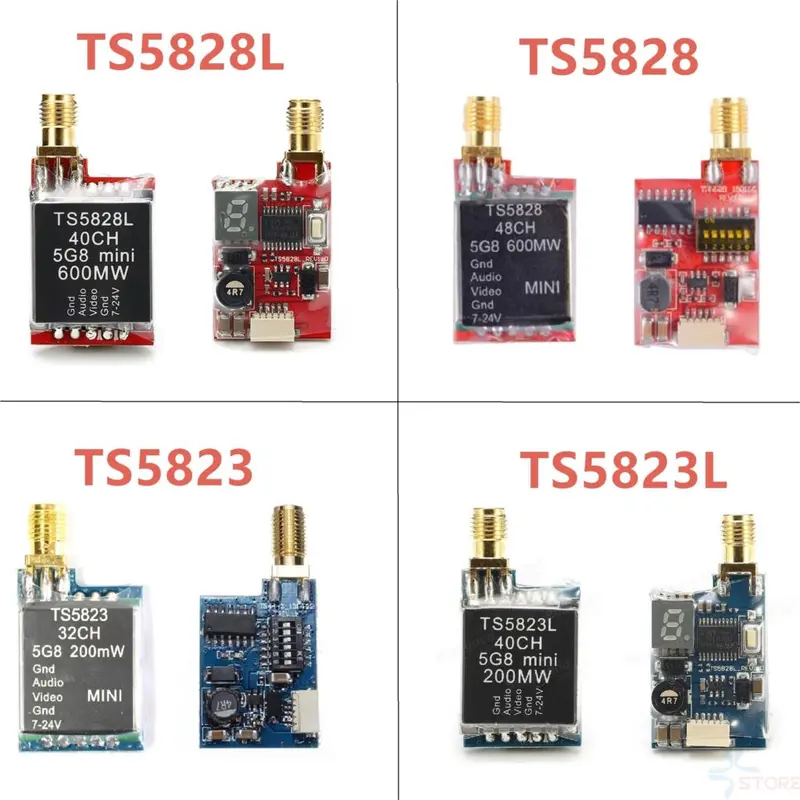

TS5828 TS5828L TS5823 TS5823L Video Sender Micro Wireless Video Transmitter Module 5.8GHz VTX for 180-350 Class Quadcopter Drone
Package Included: (Don’t include Drone) 1 x Transmitter 1 x Antenna 1 x Cable

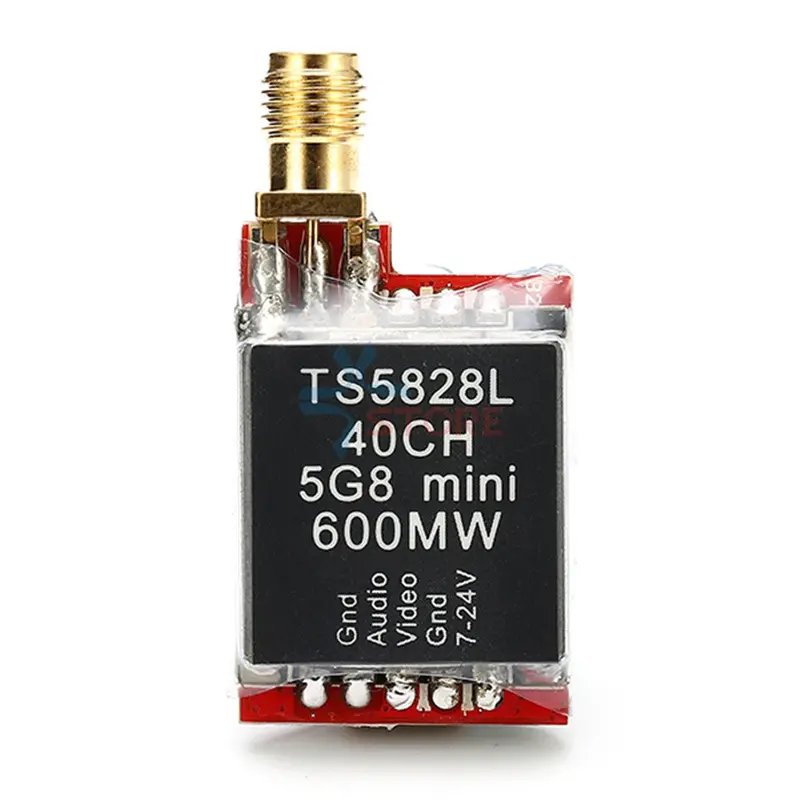

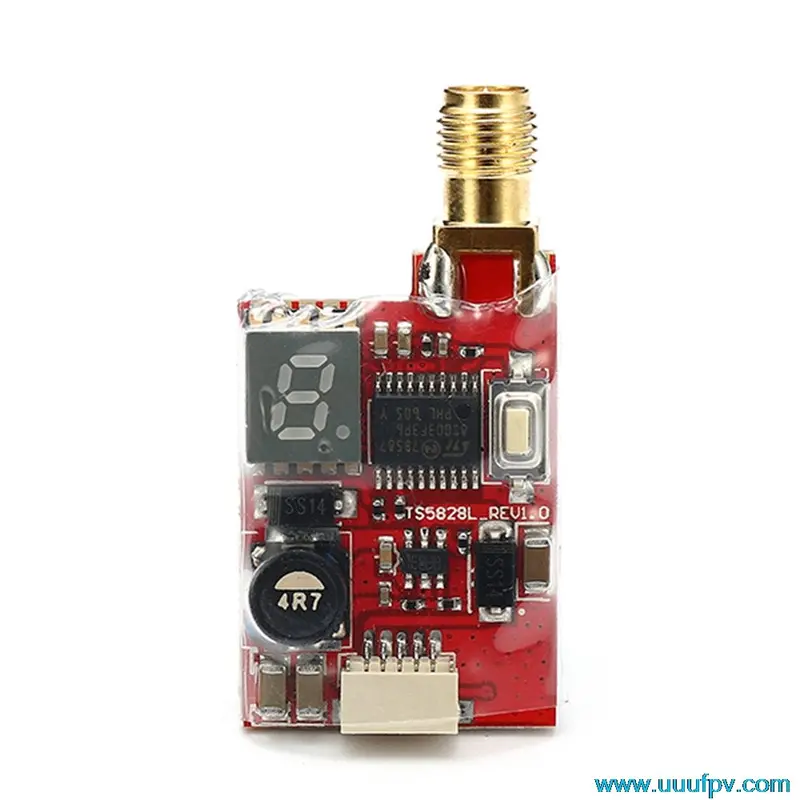

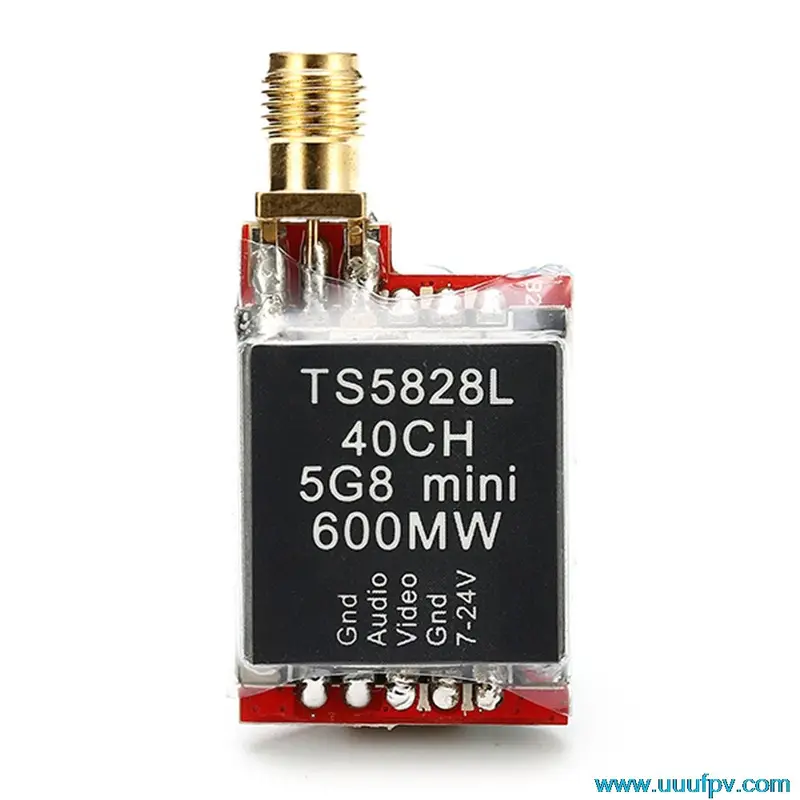

Item Name: TS5828L Channel: 40 CH Frequency: 5.6G-5.9G Current: 190mA/12V Temp.: -10-85 Transmitting power: 600mW
Video Bandwidth: 8M Audio Bandwidth: 6.5M Antenna: RP-SMA Size: 38x18x8mm Weight: 7g
Band and Channel selection
| CH | CH 1 | CH 2 | CH 3 | CH 4 | CH 5 | CH 6 | CH 7 | CH 8 |
| GROUP | ||||||||
| A | 5865 MHZ | 5845 MHZ | 5825 MHZ | 5805 MHZ | 5785 MHZ | 5765 MHZ | 5745 MHZ | 5725 MHZ |
| B | 5733 MHZ | 5752 MHZ | 5771 MHZ | 5790 MHZ | 5809 MHZ | 5828 MHZ | 5847 MHZ | 5866 MHZ |
| C | 5705 MHZ | 5685 MHZ | 5665 MHZ | 5645 MHZ | 5885 MHZ | 5905 MHZ | 5925 MHZ | 5945 MHZ |
| D | 5740 MHZ | 5760 MHZ | 5780 MHZ | 5800 MHZ | 5820 MHZ | 5840 MHZ | 5860 MHZ | 5880 MHZ |
| R | 5658 MHZ | 5695 MHZ | 5732 MHZ | 5769 MHZ | 5806 MHZ | 5843 MHZ | 5880 MHZ | 5917 MHZ |

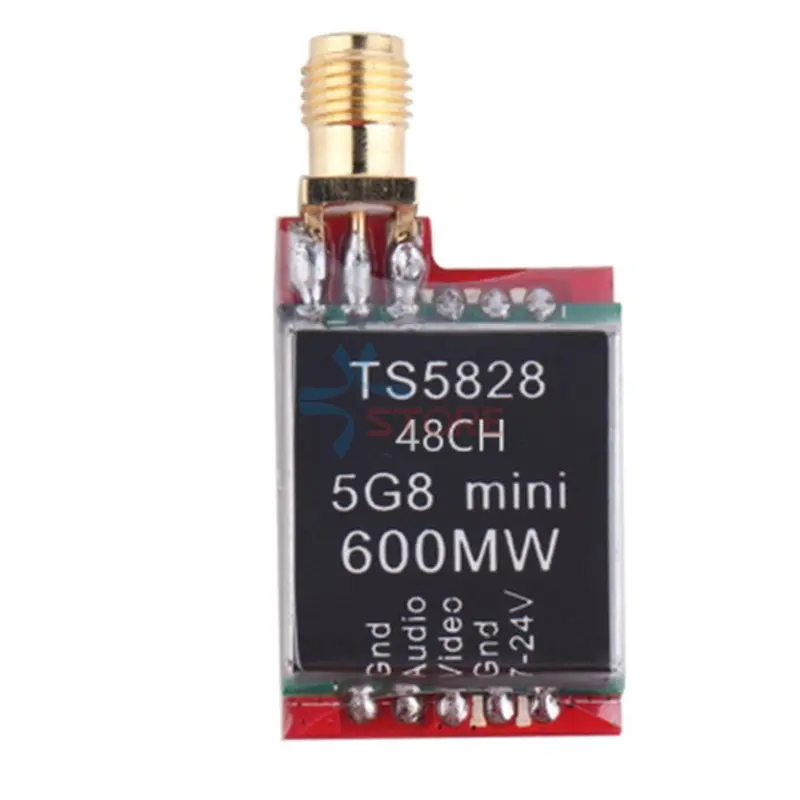

Item Name: TS5828 Channel: 48 CH Frequency: 5.6G-5.9G Current: 310mA/12V Temp.: -10-85 Transmitting power: 600mW
Video Bandwidth: 8M Audio Bandwidth: 6.5M Antenna: RP-SMA Size: 38x18x8mm Weight: 7g Frequency table :

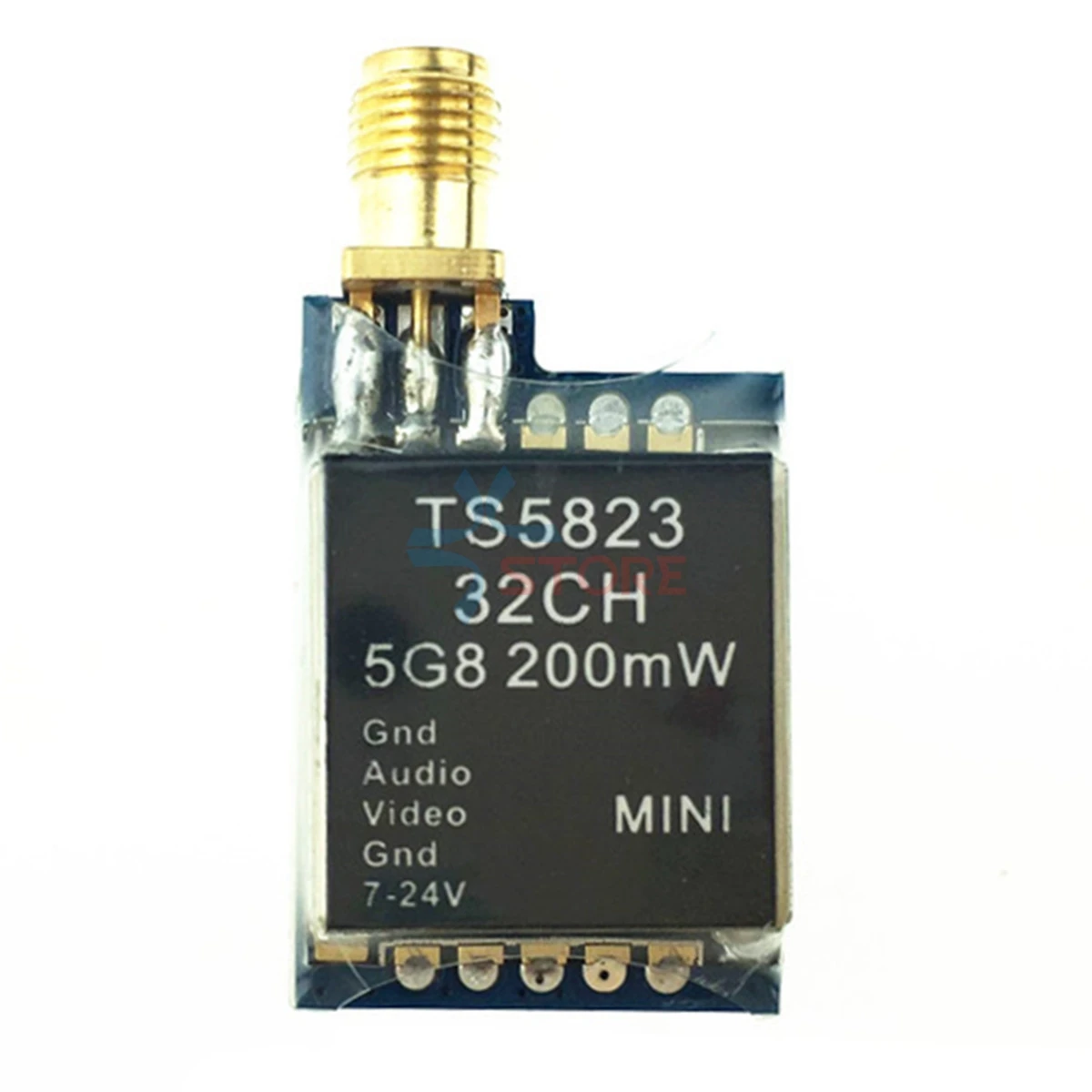

Item Name: TS5823 Channel: 32 CH Frequency: 5.6G-5.9G Current: 190mA/12V Temp.: -10-85 Transmitting power: 200mW
Video Bandwidth: 8M Audio Bandwidth: 6.5M Antenna: RP-SMA Size: 38x18x8mm Weight: 7g Frequency table :

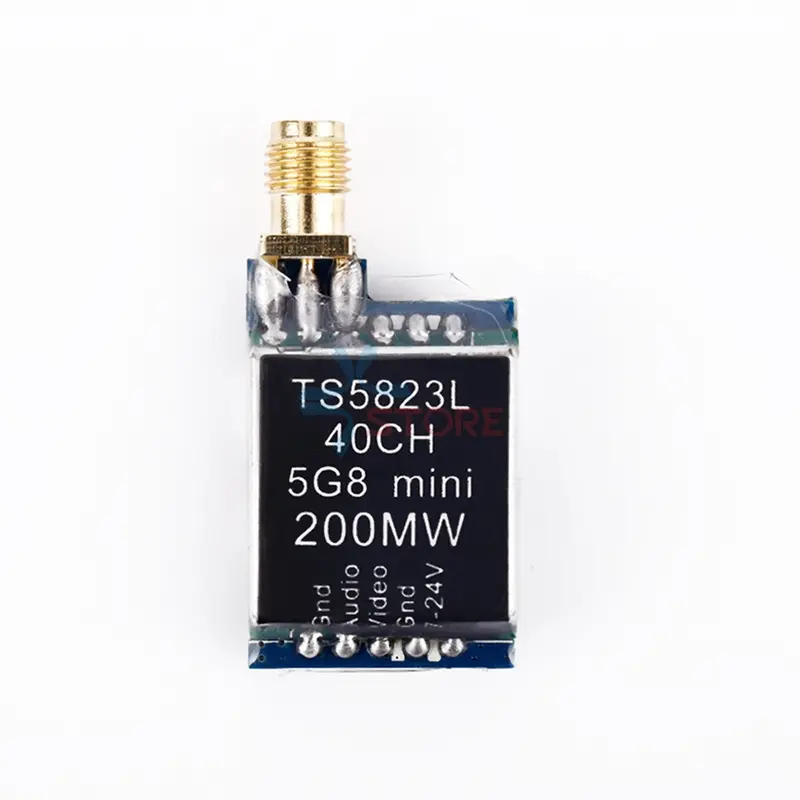

Item Name: TS5823L Channel: 40 CH Frequency: 5.6G-5.9G Current: 190mA/12V Temp.: -10-85 Transmitting power: 200mW
Video Bandwidth: 8M Audio Bandwidth: 6.5M Antenna: RP-SMA Size: 38x18x8mm Weight: 7g Band and Channel selection
| CH | CH 1 | CH 2 | CH 3 | CH 4 | CH 5 | CH 6 | CH 7 | CH 8 |
| GROUP | ||||||||
| A | 5865 MHZ | 5845 MHZ | 5825 MHZ | 5805 MHZ | 5785 MHZ | 5765 MHZ | 5745 MHZ | 5725 MHZ |
| B | 5733 MHZ | 5752 MHZ | 5771 MHZ | 5790 MHZ | 5809 MHZ | 5828 MHZ | 5847 MHZ | 5866 MHZ |
| C | 5705 MHZ | 5685 MHZ | 5665 MHZ | 5645 MHZ | 5885 MHZ | 5905 MHZ | 5925 MHZ | 5945 MHZ |
| D | 5740 MHZ | 5760 MHZ | 5780 MHZ | 5800 MHZ | 5820 MHZ | 5840 MHZ | 5860 MHZ | 5880 MHZ |
| R | 5658 MHZ | 5695 MHZ | 5732 MHZ | 5769 MHZ | 5806 MHZ | 5843 MHZ | 5880 MHZ | 5917 MHZ |
