TS300 Shock-Absorbing RC Tank Chassis – Dual 12V Motor Platform with Plastic Tracks & Full Suspension System

Description

Product Application:

• Competition;
• Graduation design;
• The engineering prototype;
• Robot project;
• DIY creations

Product Parameters:

• Name: TS300 Shock Absorption tank chassis
• Size: 269* 258 *111mm
• Weight: 0.99kg
• Material: Aluminum Alloy
• Surface treatment: Sandblasting oxidation
• Wheel: Aluminum Alloy
• Track: Engineering plastic
• Color: Yellow/black/silver
• Design load: 5kg

Motor parameters(25mm 9V&150RPM DC Motor, has hall sensor):

• Name: 25mm gear motor
• Output speed: 150±10%rpm
• No_load Current: 200mA (Max)
• Stall current: 4500mA(max)
• Stall torque: 9.5kgNaN
• Rated speed: 100±10%rpm
• Rated torque: 3000gNaN
• Rated Current: 1200mA (Max)
• Noise: 56dB
• Working voltage: 9V
• Outside Shaft Length: 14.5mm
• Shaft End Play: 0.05-0.50mm
• Screw Size: M3.0
• Dia. Of Shaft phi4mm, D3.5
• encoder: 2 pulses/circle


Motor parameters(12V&330RPM DC Motor):

• Voltage: 12V DC
• RPM: 330RPM
• Current: 0.55A
• Diameter: 25mm
• Height (excl. shaft): 68mm
• Shaft length: 9.5mm
• Shaft diameter: 4mm
• Weight: 180g
• Brand new and unused
• Torque: 13kg.cm
• max effective point: load 4.0kg.cm/235rpm/2.5W/0.58A
• Max power: load 7kg.cm/215rpm/3.1w/0.65A
• Stall current: 4.8A

12V 300rpm motor>>(10W Big Power)

Package Included:

• 1*chassis
• 2*tracks
• 2*motors
• 10*bearing wheel
• 2*driving wheel
• several screws and necessary accessories for installation.

Free: Battery box

Note:

• The tank chassis is unassembled for the transportation convenient. Please contact us to get the installation manual if you need.

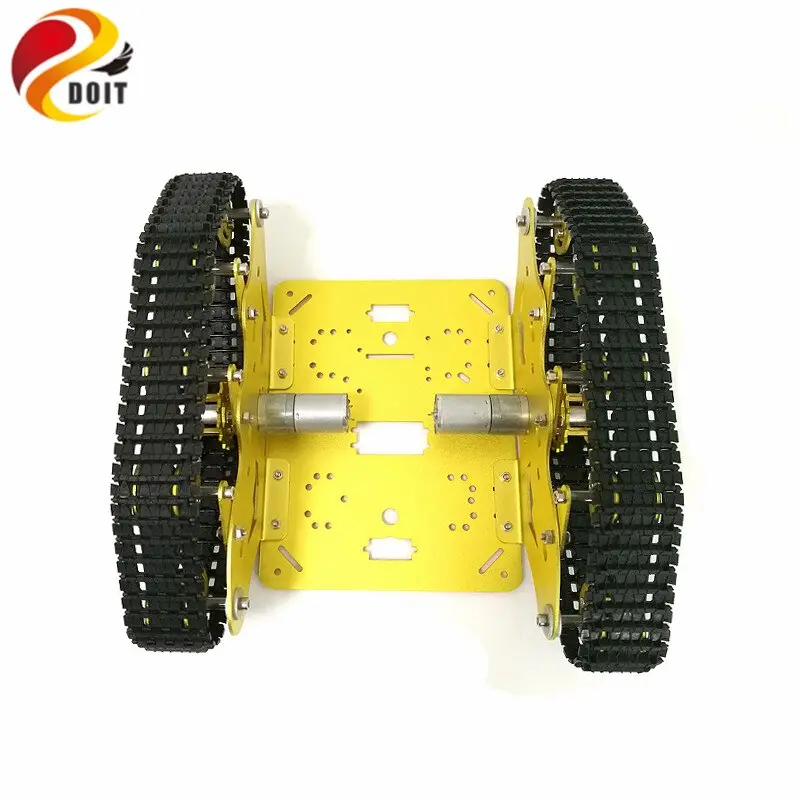

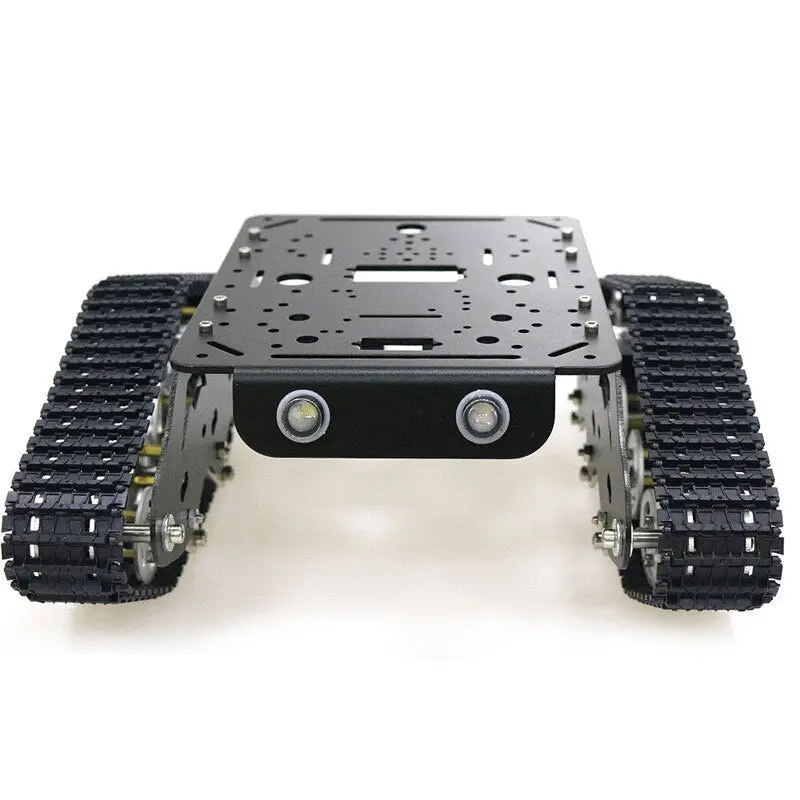

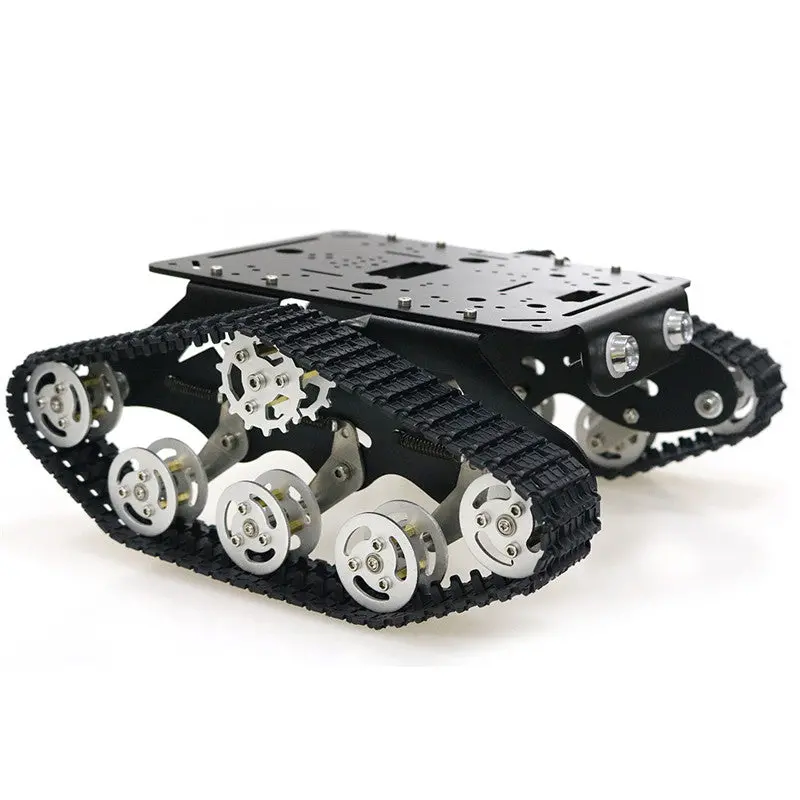

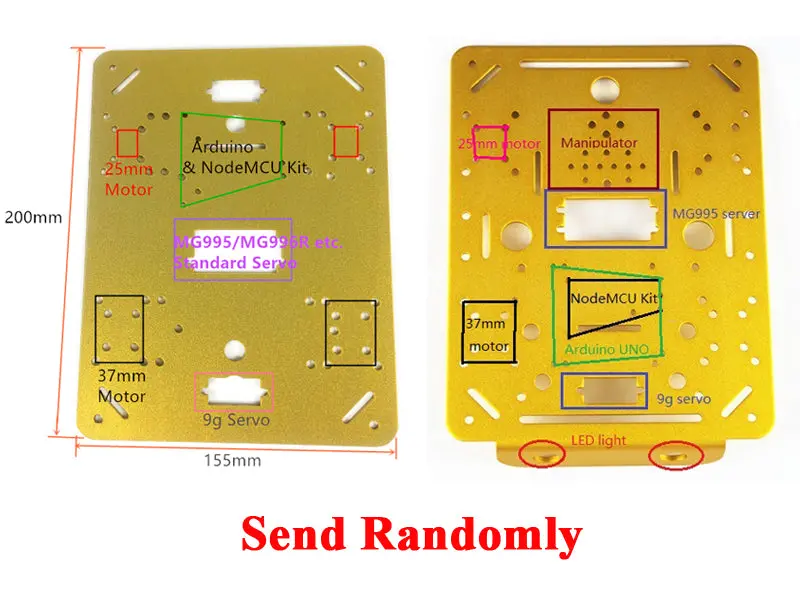

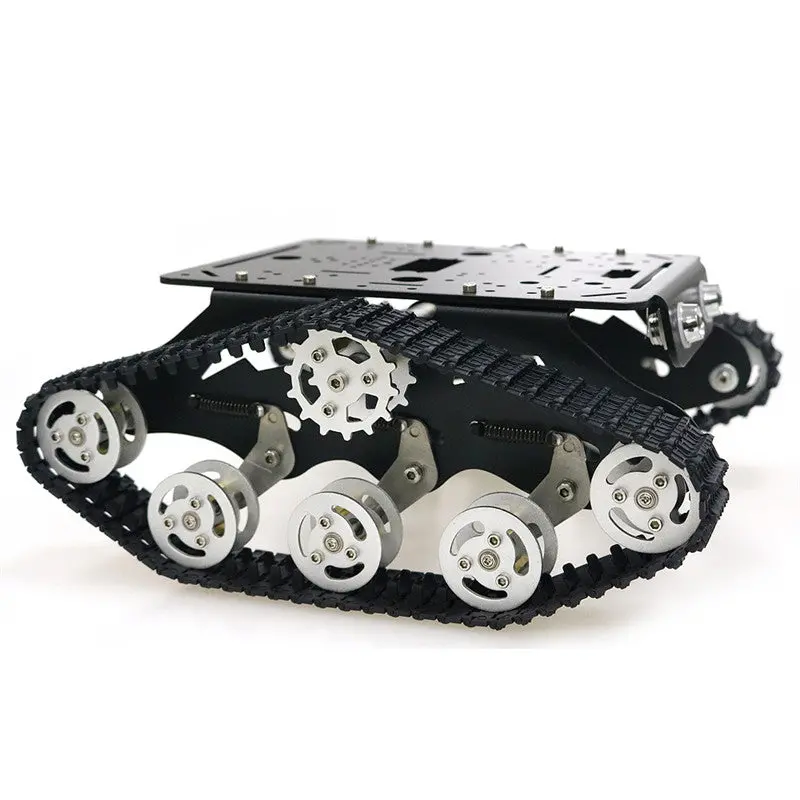

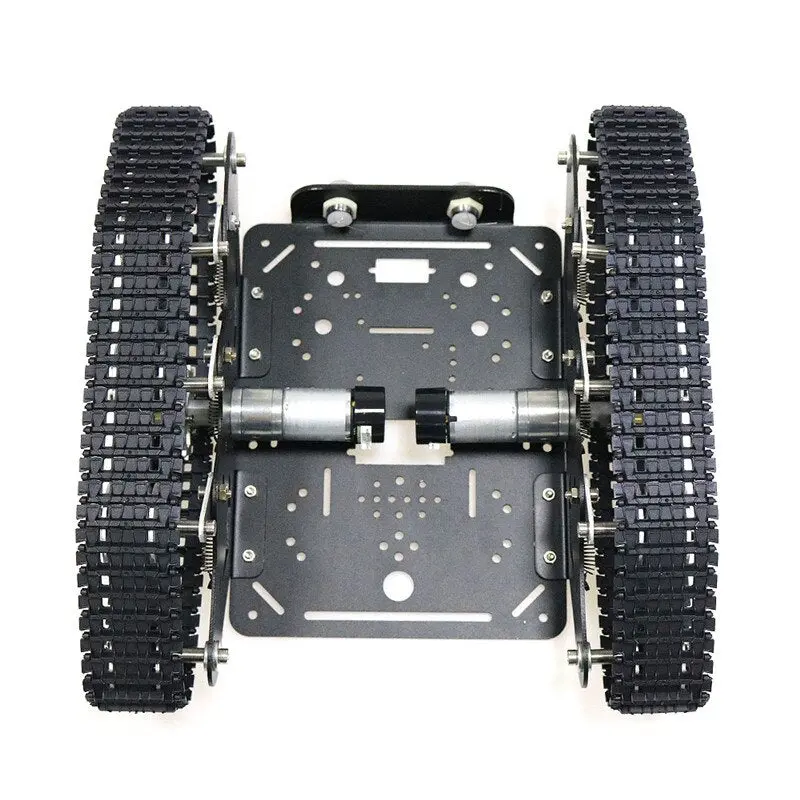

Images:
