Description

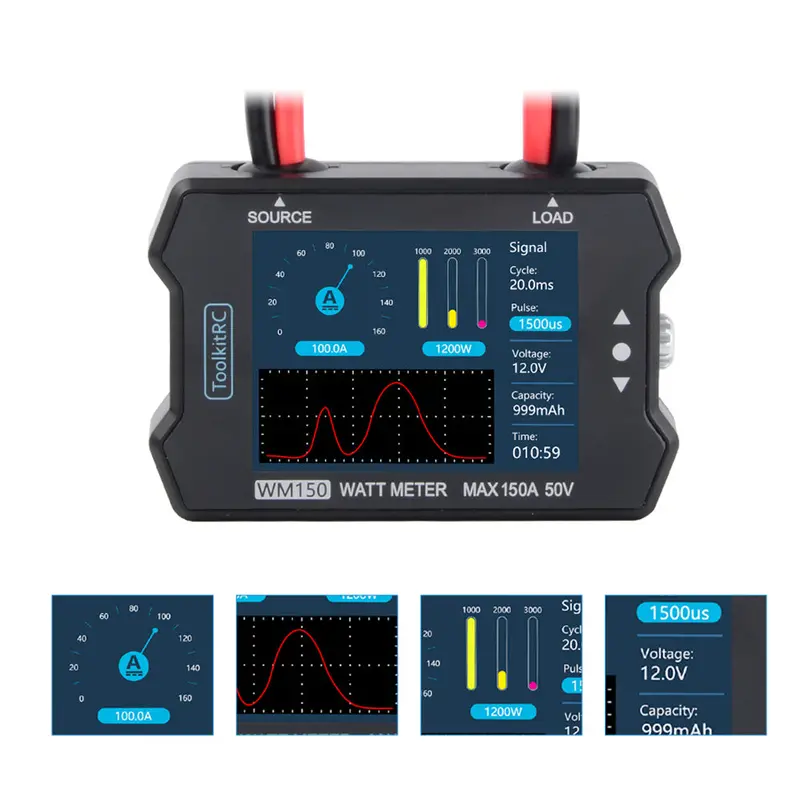

Description: Brand: ToolkitRC Item: WM150 Watt Meter Input Voltage: 1-50V Current(Max): 150A (precision:10mA) USB: 5.0V@1A ( USB3.0 firmware update) Output: PWM 1000-2000us@50Hz Display: TFT 2.4″ LCD Screen(320*240 resolution) Product Size: 80*54*23mm Approx. Packing Size: 87*87*28mm Approx. Net Weight(Approx): 120g Gross Weight(Approx): 140g Using Steps: ① Connect 1-50V power supply, when the voltage is lower than 6V, need to use USB 5V to provide power; ② After power-on, the LCD screen displays the logo and continues 2 seconds, with the starting music; ③ Adjust the button if the data in the displaying screen are not in minimum data position. Features: – ToolkitRC WM150 is a Watt Meter, which is capable to test voltage, power, current data of the electric equipment, like servo, ESC, battery, etc. – 1-50V power supply, the max current is up to 150A, the precision is accurate to 10mA. – Support PWM signal, 1us precision, the pulse width is changable by adjusting the button. – Automaticly to change the unit of the capacity, when it is lower than 1A, the unit-display is MA, when it is higher than 1A, the unit-dispaly is changed to A. – The watt meter is also supporting to display working hours. – USB firmware update, easy to operate.
Manual: Click here
Package: 1* ToolkitRC WM150 Watt Meter 1* USB Wire
1* Manual
