Description
item in stock,please kindly to bid it,we can send the item out to you in 2 days!

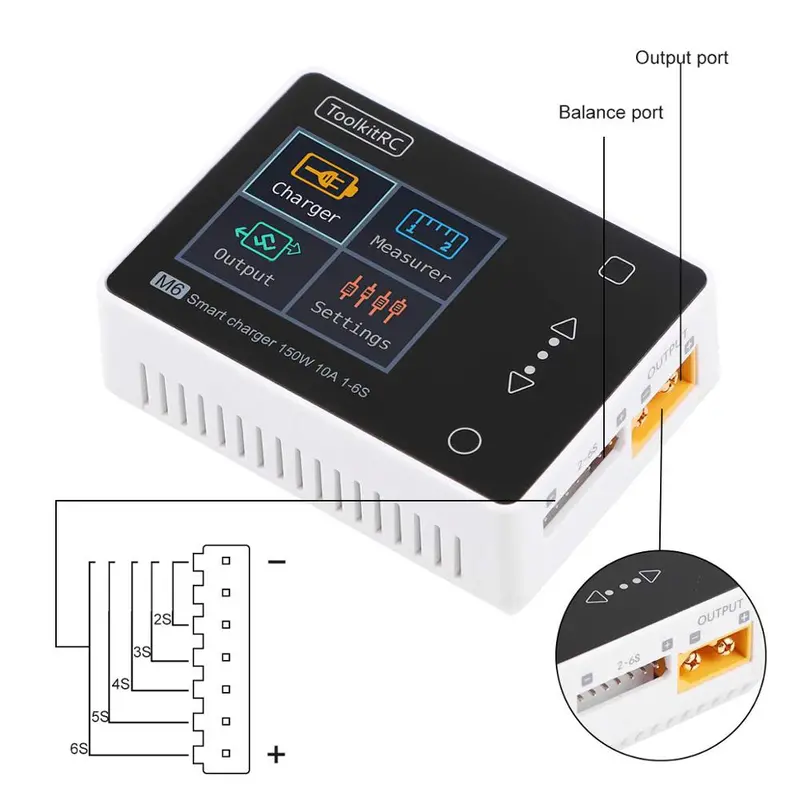

ToolkitRC – M6 150w 10A 1-6s Color Screen Multi-function Micro Pocket charger and Diagnostics tool kit
The M6 is the worlds smallest 150w color screen charger! With a 150w and 10A Charger at its heart the M6 also has a servo tester, cell checker, a watt meter, PWM/PPM/Sbus input testers and output generators along with a variable voltage And amperage DC output control. Features Battery Charger Cell Checker Servo Tester PWM, PPM.SBUS Input/output & Receiver tester Viable AMP/volt DC Power supply (Required external DC input) Specs ● Lithium battery cut-off voltage can be set (TVC function) ● Measure battery voltage, internal resistance, balance ● Measure PWM / PPM / xBUS signal values, Accuracy 1ms ● Output PWM / PPM / xBUS standard signal, Accuracy 1ms ● Customizable 1-28V constant voltage, 1-10A constant current ● Charge the drone battery, activate and charge. ● Multi-language optional ● USB 2.1A 5.0V Output, for Mobile devices ● Udisk firmware upgrade (Slave device) Charger Input voltage: 7.0-28V MAX 12A Type of battery: Lipo LiHV LiFe Lion 1-6S NiMh 1-16S Pb 1-10S Charge power: 150W MAX 10A Discharge power: 150W MAX 10A Recycle mode 8W 2A Normal mode USB: 2.1A 5.0V or Upgrade Dimensions: 68*49*26 mm Weight: 80g LCD: 1.8inch TFT RGB, 160*128 Pixel Measurement PWM: 880-2200us 20-400Hz PPM: 880-2200us*8CH 20-50Hz SBUS: 880-2200us*16CH 20-100Hz Voltage: 1.0-5.0V 1-6S IR: 10-99mR 1-6S Output PWM: 500-2500us 20-1000Hz PPM: 880-2200us*8CH 50Hz SBUS: 880-2200us*16CH 74Hz Power: 1-10A 1-28V Mode: CC+CV Packing Informations: Weight: 140g Size: 80*80*35mm
