Tarot TL68P07 Brushless Motor – 6S, 380KV, 4008/4108 Size for Heavy-Lift FPV Drones and Multirotors

Description

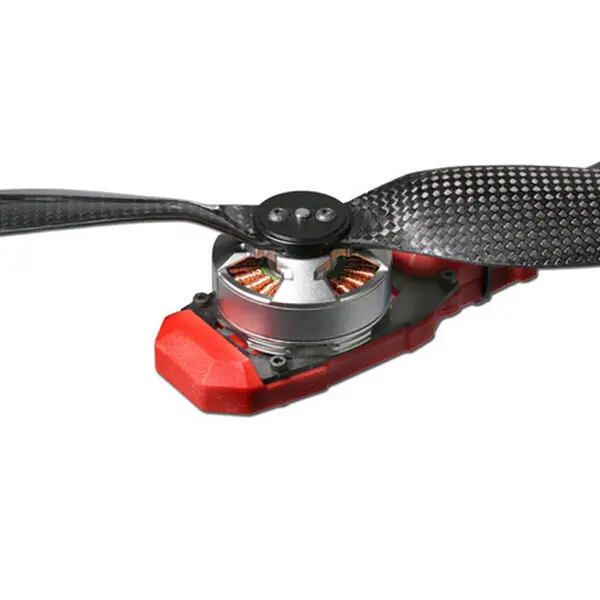

Tarot 6S 380KV 4008 4108 Brushless Motor For RC Multicopters  TL68P07

Test date reterence:

Features:
-Designed for quad-copters and hex-copters, CNC processed, smooth surface and well-balance
-Brand-new turbofan cover, which provide good heat dissipation effect.
-Rotor is made by neodymium iron boron, and stator is made by Epoxy resin, motor is well-balanced from factory, which solves vibration issue a lot.
-Motor shaft is alloy steel applied.
-The upper and lower cover are special bearing applied, which has advantages such as low frictional torque, low power consumption, impact resistance, strong radial support.
Specification:
Brand Name:Tarot
Model: 6s 380KV
Motor diameter: 46MM
Stator diameter: 40.6MM
Stator thickness: 8.2MM
Stator pole: 24 Port
Motor pole: 22P
Cable diameter: 0.23MM
Gear axis installation diameter: 4MM
Motor height: 24.0MM
Motor cord length: 32.50MM
RPM: 380RPM/ volt
Motor Weight: 93G
4006 Motor mounting pitch: 27.7MM equilateral triangle installation.
Hole diameter: 4mm (middle), 3mm (side),
Distance from hole to hole: 12mm
Package Include:
1 x 6s 4108/380 kv brushless motors
3 x M3x6mm cup head screws
2 x M3x8mm round head screw
1 x Metal rotor installing piece
