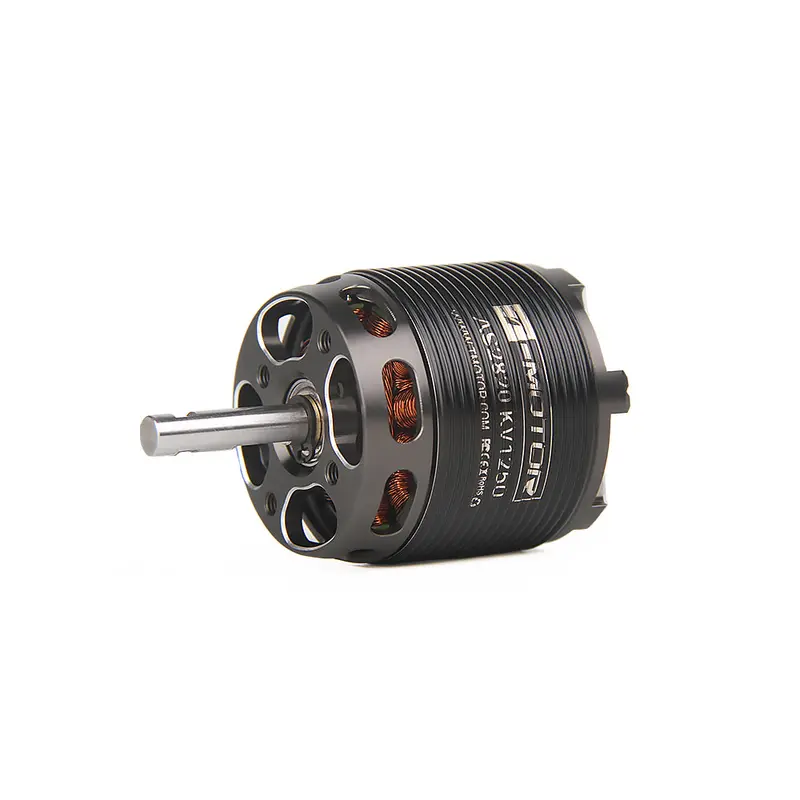

T-Motor AS2820 Brushless Motor – 880/1050/1250KV Options for 3S–4S Fixed-Wing RC Aircraft

Description

Tmotor AS2820 880KV/1050KV/1250KV 3-4S Motor for RC Airplane Fixed Wing
Description:
Brand: Tmotor
Model: AS2820
KV: 880KV, 1050KV, 1250KV (Optional)
880KV:
No load current: 10V/1.98A
Maximum current (A) 180S: 45A Maximum power (W) 180S: 626W/4S Internal resistance (including wire): 34 Milliohm Rated voltage: 3-4S ESC recommendation: 60A Propeller recommendation: APC11*7/12*6/13*6.5/14*7 Motor weight (including wire): 136g
1050KV:
No load current: 10V/2.59A
Maximum current (A) 180S: 67A Maximum power (W) 180S: 963W/4S Internal resistance (including wire): 23.2 Milliohm Rated voltage: 3-4S ESC recommendation: 60A-80A Propeller recommendation: APC11*5.5/11*8/12*6/13*6.5 Motor weight (including wire): 144g
1250KV:
No load current: 10V/3.44A
Maximum current (A) 180S: 77A Maximum power (W) 180S: 1092W/4S Internal resistance (including wire): 16.8 Milliohm Rated voltage: 3-4S ESC recommendation: 60A-80A Propeller recommendation: APC9*6/10*5.5/11*8/12*6 Motor weight (including wire): 144g
Features:
* AS Series motor internal winding are uniform and orderly, fully meet the performance consistency and motor efficiency play. * Using imported NMB bearings, ensuring the motor working lifetime. * High standard of dynamic balance testing.
Package Included:
1x Tmotor AS2820 3-4S Motor
