SZDOIT TS100 Metal 2WD Tracked Chassis – Bluetooth/WiFi-Enabled Arduino Robot Platform with 9V Motors

Description

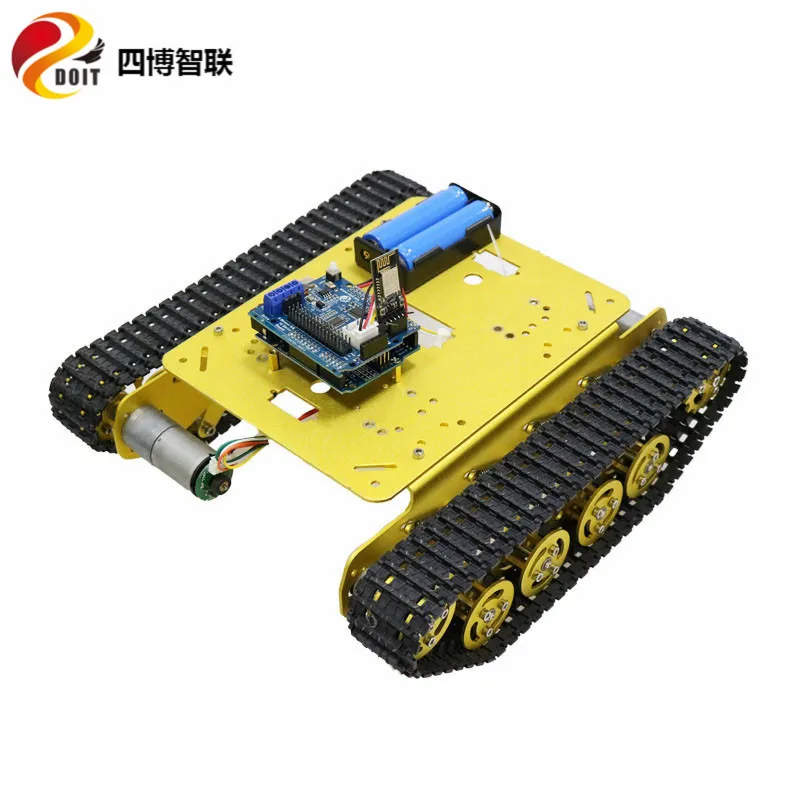

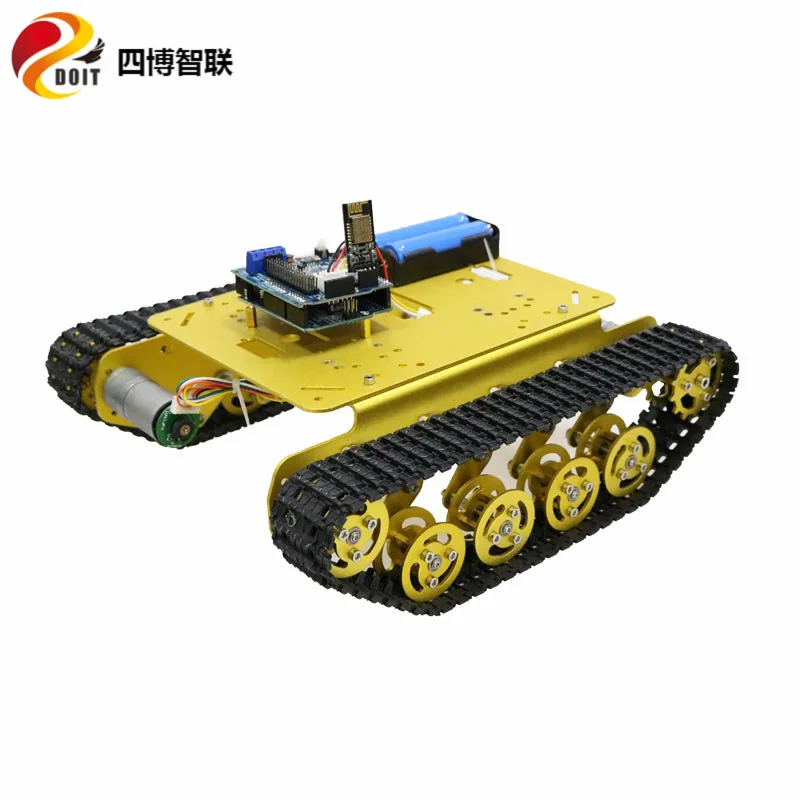

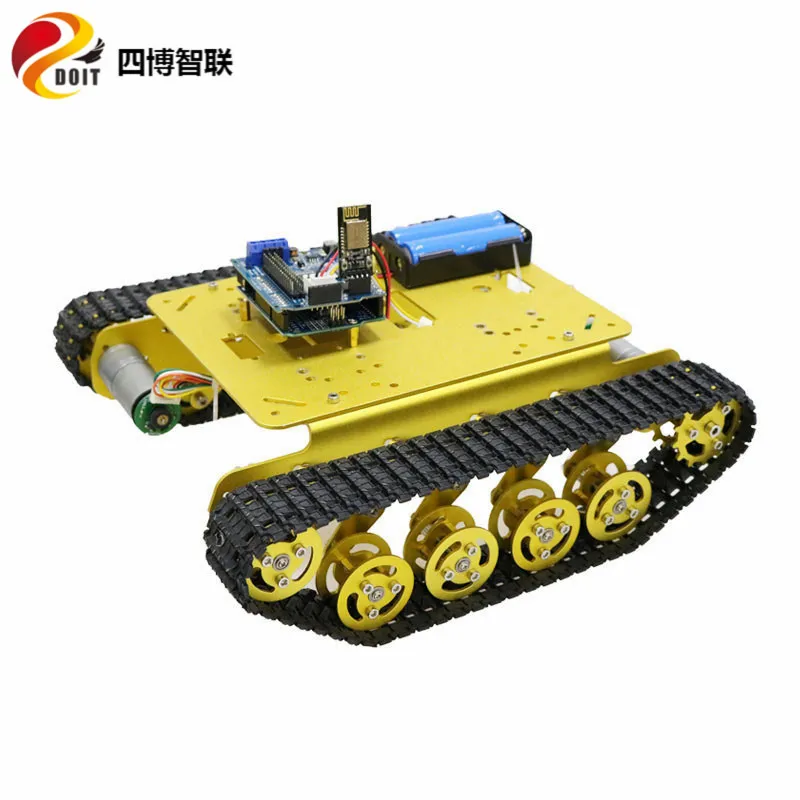

Tank chassis parameters:

• Name: TS100 intelligent tank chassis
• Surface treatment: sandblasting oxidation
• Color: gold / silver, optional
• Size: 275*190*95mm
• Weight: 1.1kg

9V 150rpm with encoder motor:

• Name: 25mm DC carbon brush motor (with Hall encoder)
• Output rate: 150±10% rpm
• Load current: 200mA (Max)
• Stall current: 4500 mA (max)
• Stalling torque: 9.5kg NaN
• Load speed: 100±10% rpm
• Load torque: 3000gNaN
• Load current: 1200mA (Max)
• Load noise: 56dB
• Working voltage: 9V
• Shaft extension size: 14.5mm
• Axial clearance: 0.05-0.50mm
• Screw size: M3.0
• Shaft diameter: phi: 4mm, D3.5
• Code wheel parameters: 2 pulses / circle

Control type:

Shipping list:

• 1 × TS100 tank chassis
• 2 × DC motor

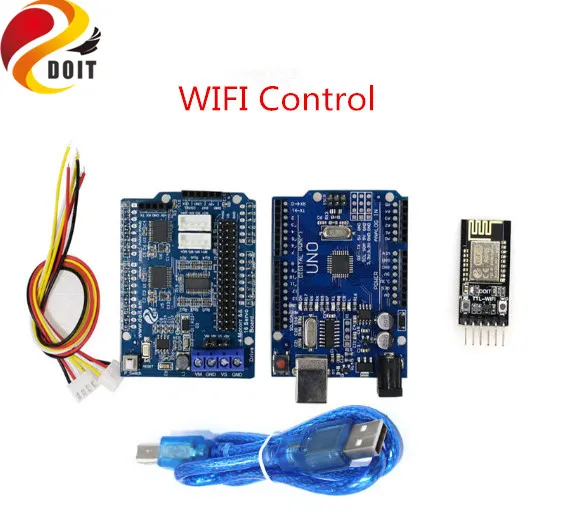

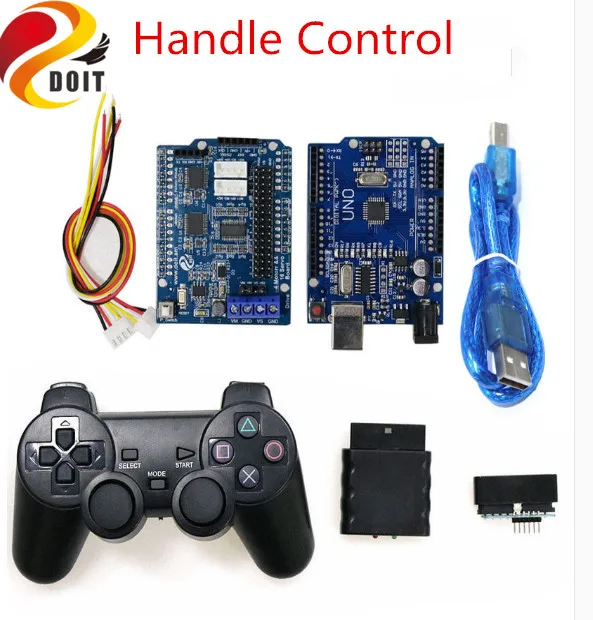

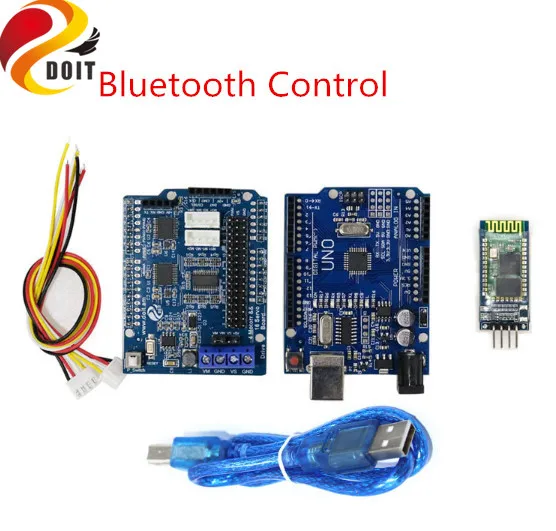

• 1 × Wifi/Bluetooth/Handle control kit
• Free: 18650 battery box,allen wrench,screws

Note:

• Product does not contain battery.
• Tank chassis color: gold / silver, optional, please specify when placing an order.
• In order to facilitate transportation, the product is not assembled. But it is very easy to install.
• More documents can be downloaded at wiki.doit.am
