Szdoit TD200 Double-Layer Metal Crawler Chassis – 2WD Robot Frame with Encoders & High-Torque Motors for Arduino Projects

Description

Features:

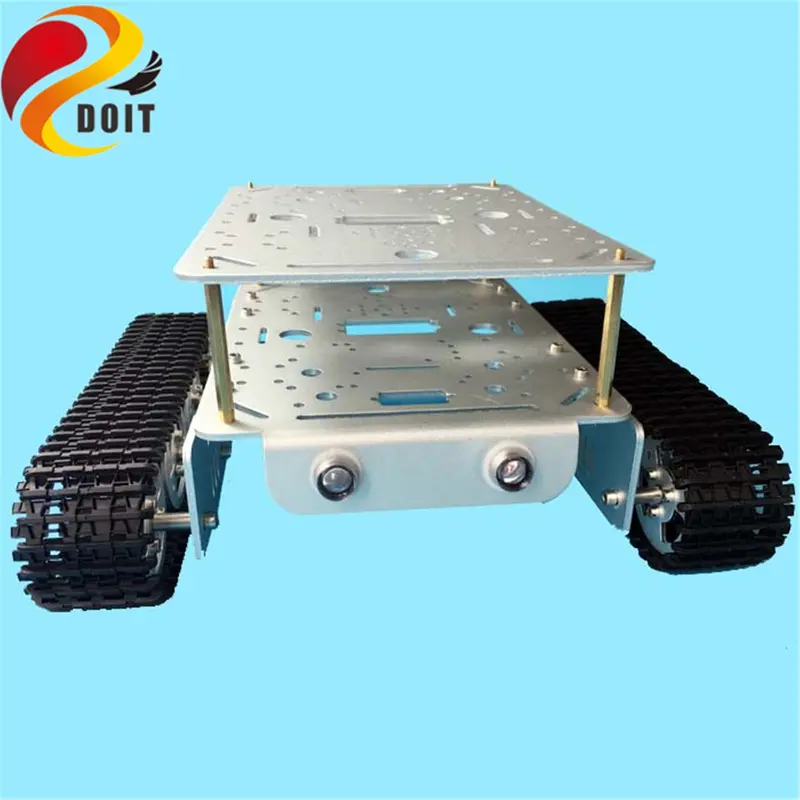

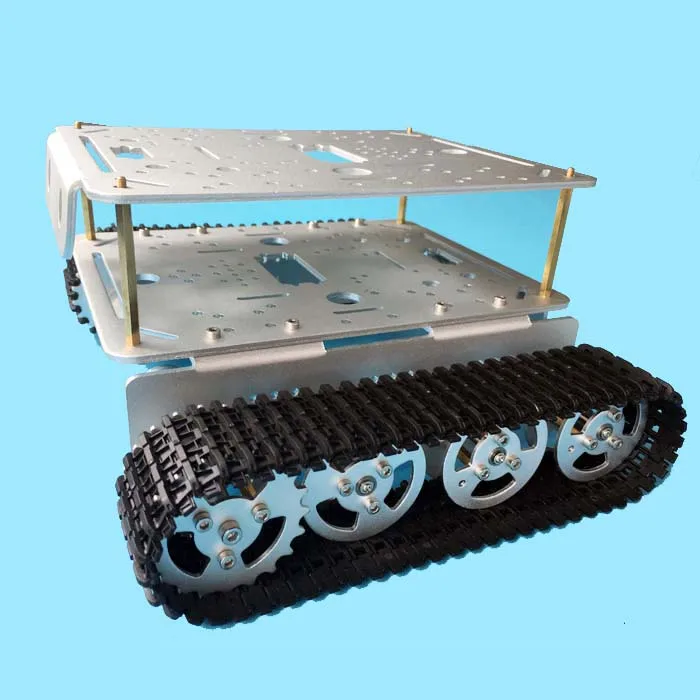

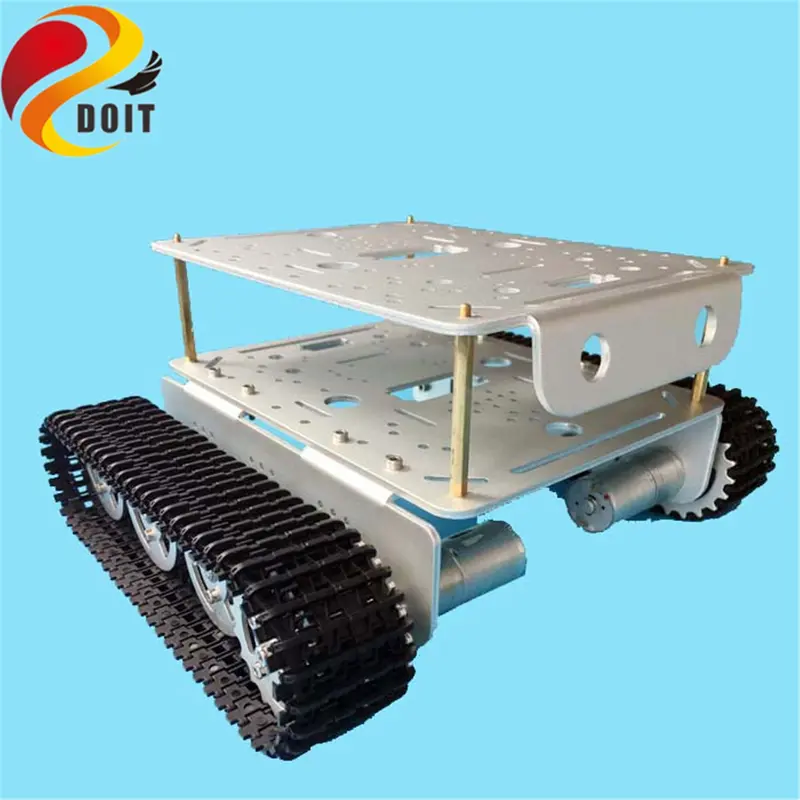

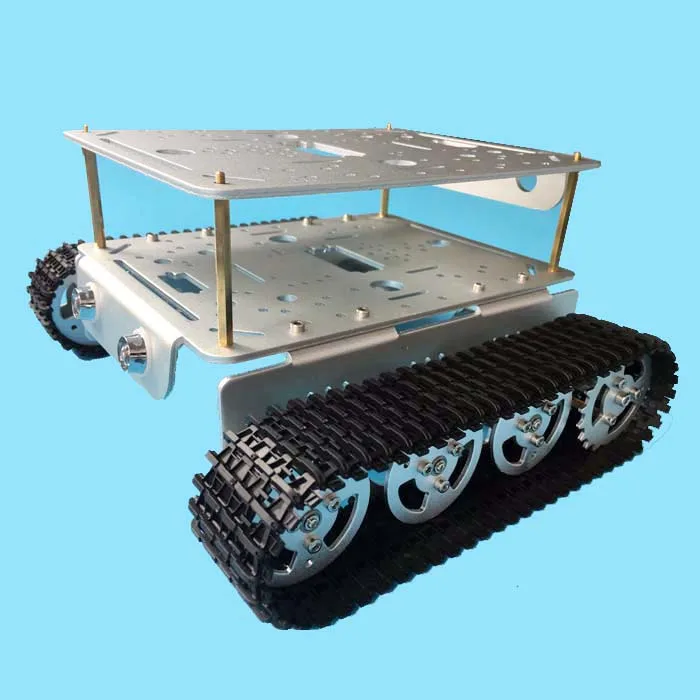

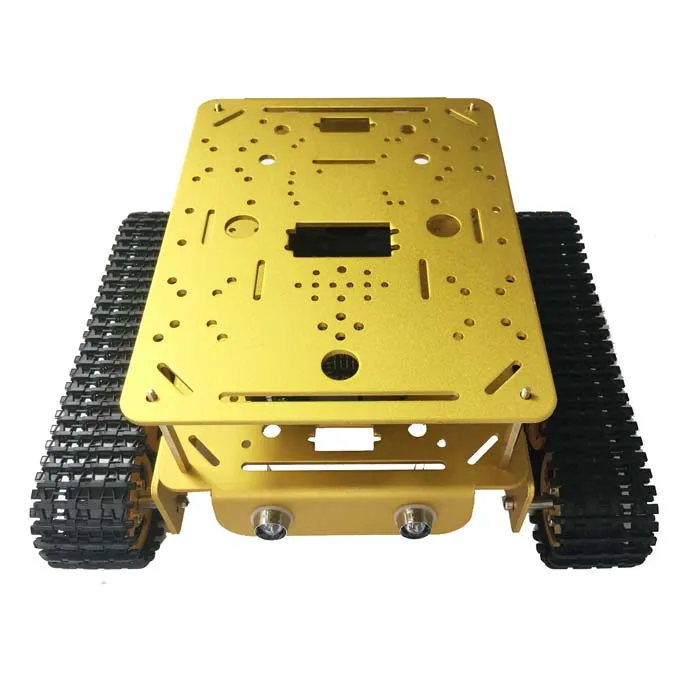

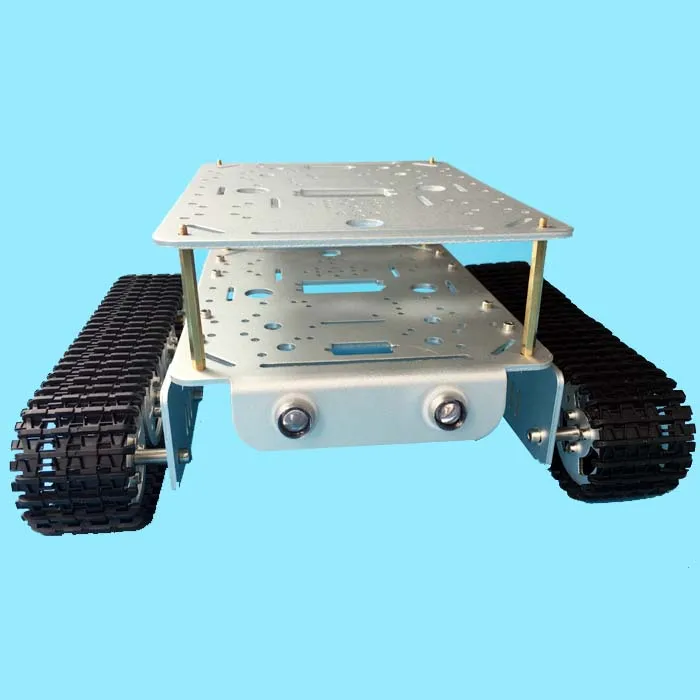

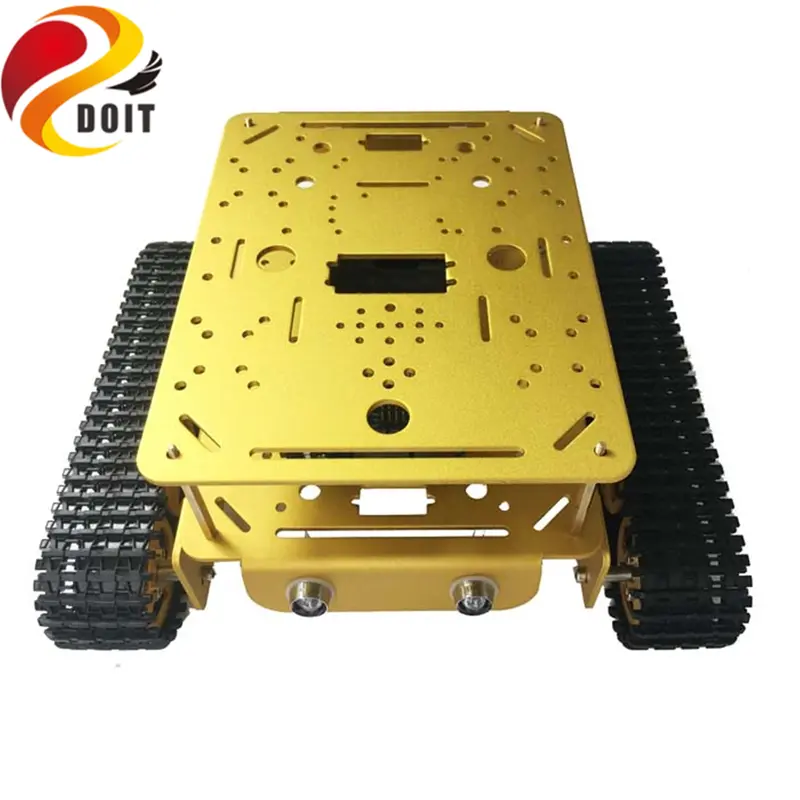

• A newly designed tank chassis with a beautiful appearance, fine processing, sandblasted and oxidized into gold and silver.
• The all-metal structure makes the tank more stable and strong.
• In the tank car panel design, the installation space of 9g servo and MG995 servo is reserved, which can be used to flexibly install ultrasonic sensors and robot arms. Moreover, the panel also has mounting holes for the Arduino UNO R3 and NodeMCU development kits, making it harder to install the development board.
• In addition, the car panel can be installed with a 25mm/37mm motor bracket, which can be installed as a wheeled 4WD car.
• Even more surprising is the design of two LED lights on the panel. The whole car looks very beautiful and generous.

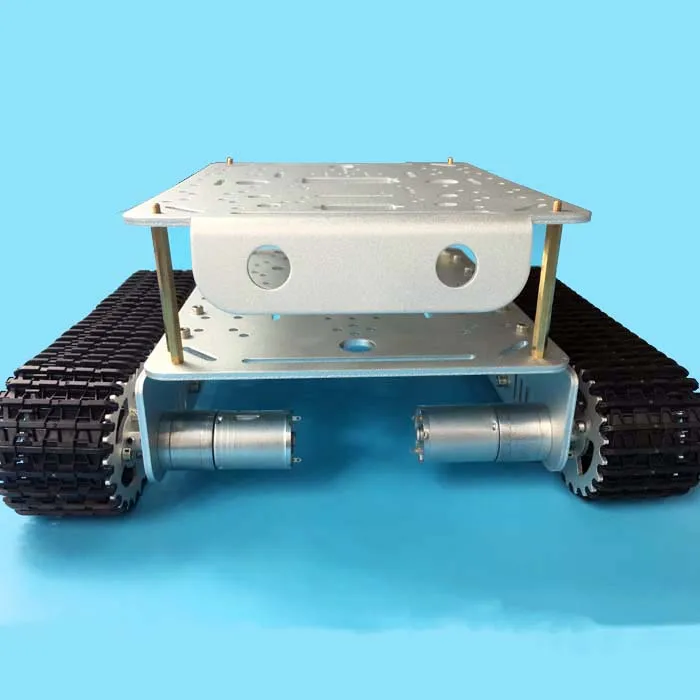

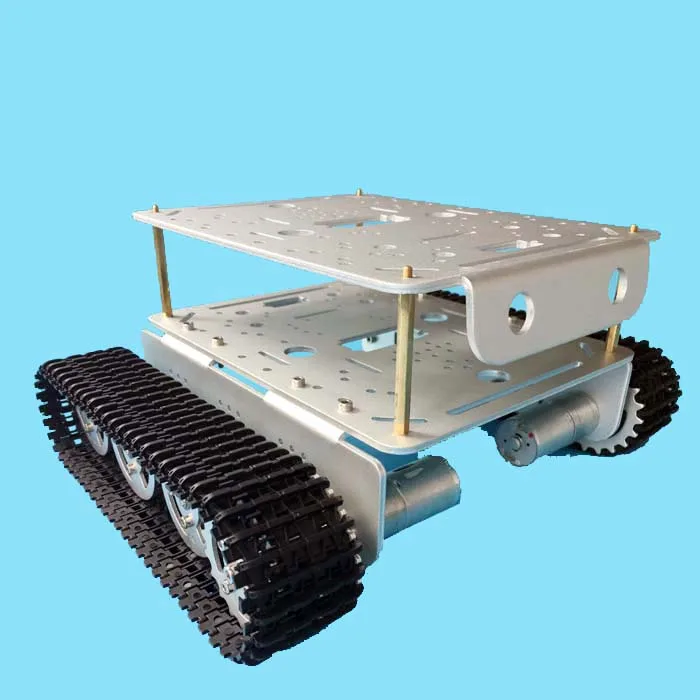

• Driven by the motor, the car can be flexibly rotated back and forth. The trolley carbon brush DC motor has a Hall sensor for speed measurement and feedback. Therefore, the car can do a lot of things, it is worth having!

TD200 tank chassis parameters:

• Name: TD200 intelligent tank chassis
• Material: aluminum alloy
• Surface treatment: sandblasting oxidation
• Color: gold or silver
• Track: engineering plastics
• Drive wheel: aluminum alloy
• Bearing wheel: aluminum alloy
• Size: about 300*220*55mm (length * width * height)
• Weight: about 1.4kg
• Motor: 9V/12V speed feedback

Motor parameters:

9V 150rpm with encoder motor:

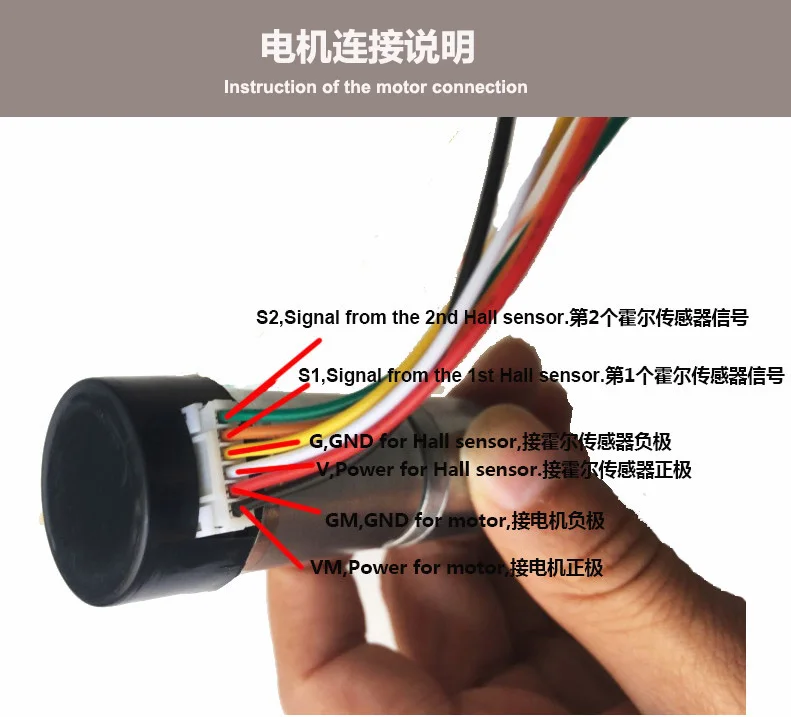

• Name: 25mm DC carbon brush motor (with Hall sensor code plate)
• Output rate: 150±10% rpm
• Load current: 200mA (Max)
• Stall current: 4500 mA (max)
• Stalling torque: 9.5kg NaN
• Load speed: 100±10% rpm
• Load torque: 3000gNaN
• Load current: 1200mA (Max)
• Load noise: 56dB
• Working voltage: 9V
• Shaft extension size: 14.5mm
• Axial clearance: 0.05-0.50mm
• Screw size: M3.0
• Shaft diameter: phi4mm, D3.5
• Code wheel parameters: 2 pulses / circle
• Sensor operating voltage: 3-5V

12V 330rpm without encoder motor:

• Rated voltage: DC12V
• No-load speed parameter: 330rpm 0.24A
• Maximum efficiency point parameter: load 4.0kg.cm/235rpm/2.5W/0.58A
• Maximum power point parameters: load 7kg.cm/215rpm/3.1W/0.65A
• Maximum blocking parameter: 13kg.cm
• Reducer reduction ratio: 1:34

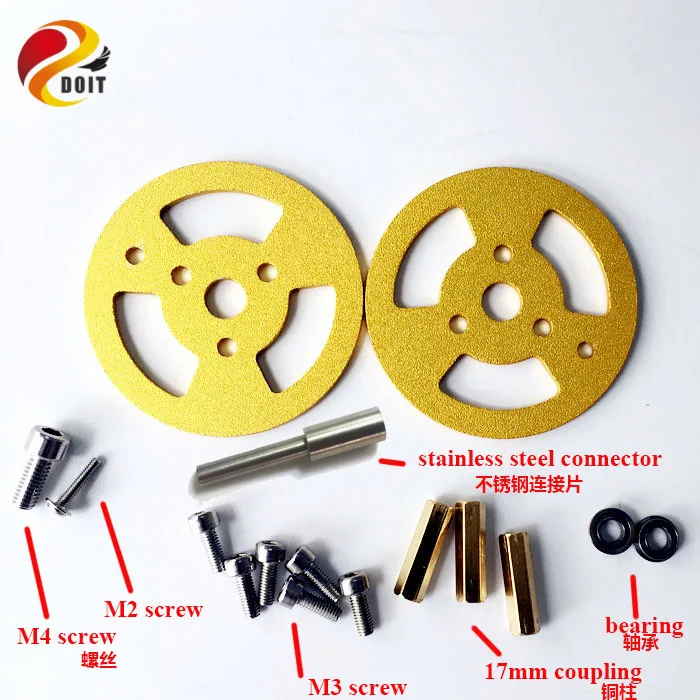

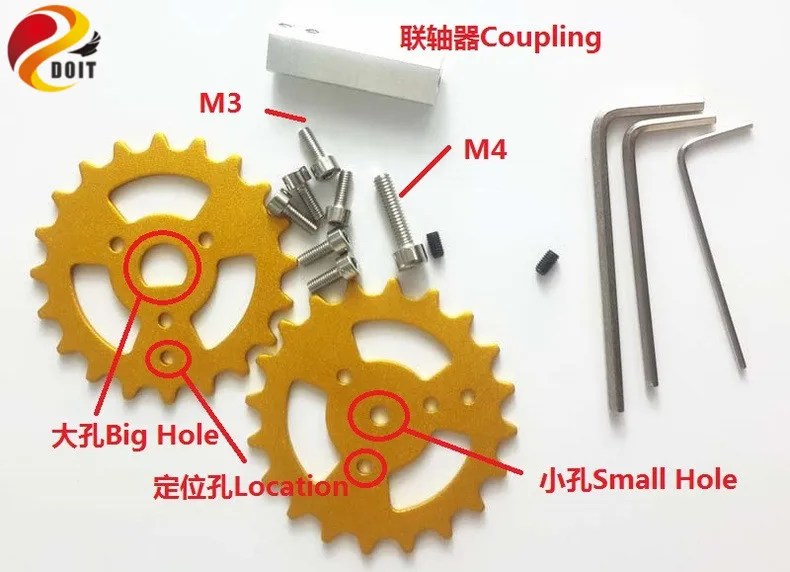

Shipping list:

• 1 × TD200 tank chassis
• 2 × DC motor
• Free:LED light,Allen wrench

Note:

• In order to facilitate transportation, the product is not assembled;
• More documents can be downloaded at wiki.doit.am;
• The track can be easily opened with a needle and can be arbitrarily connected.
