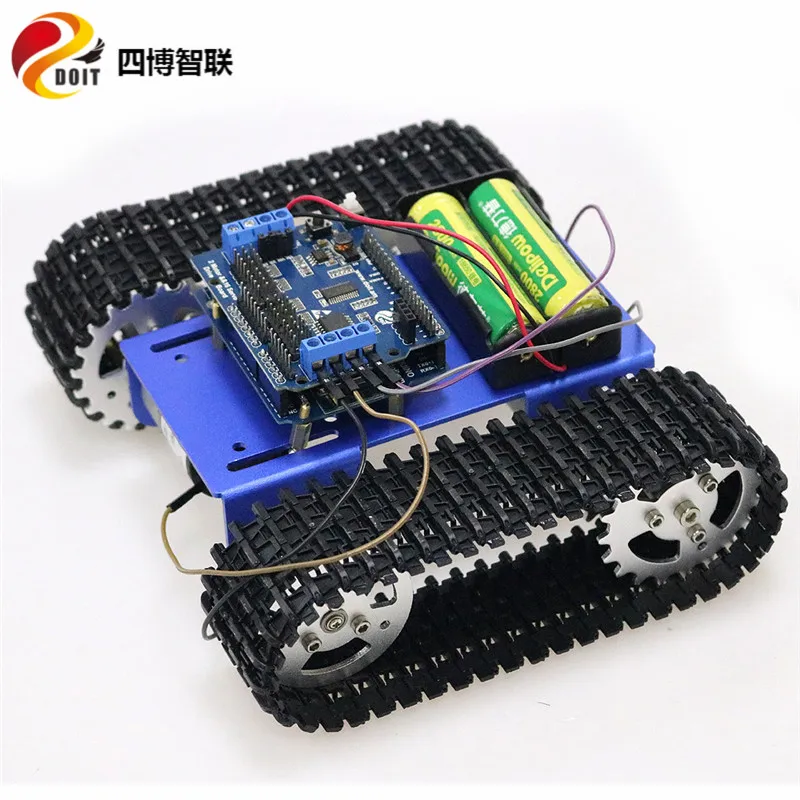

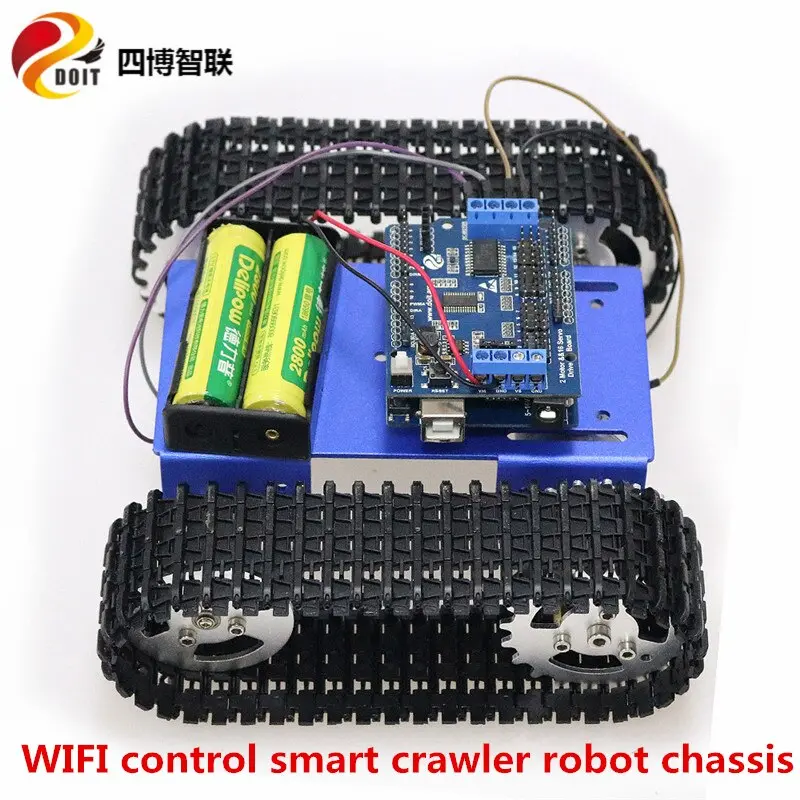

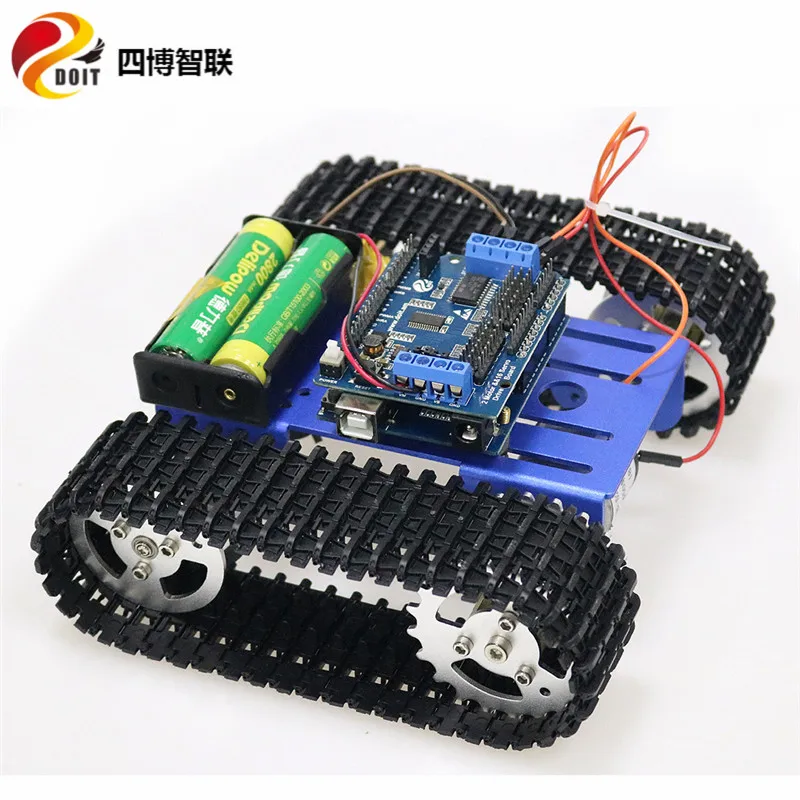

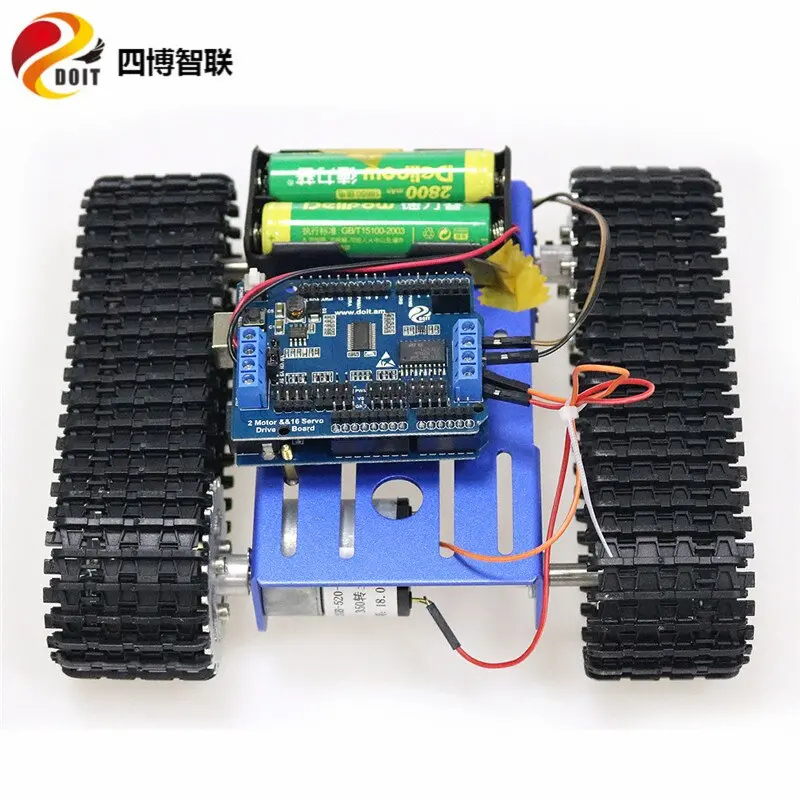

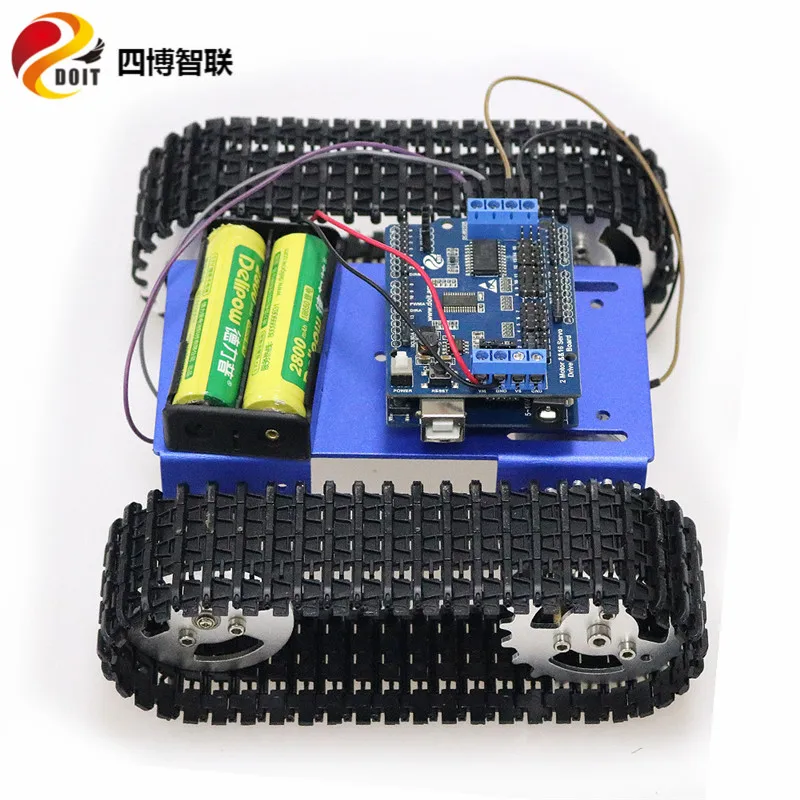

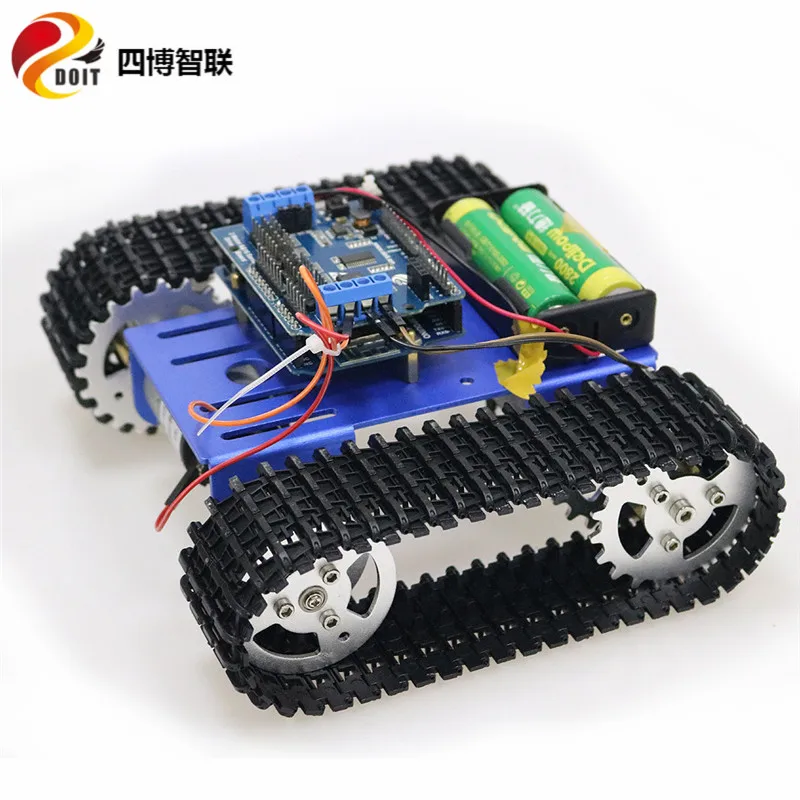

SZDOIT T101 WiFi Crawler Robot Kit – ESPDuino-Based Metal Tank Chassis with 33GB-520 DC Motors (STEM Education)

Description

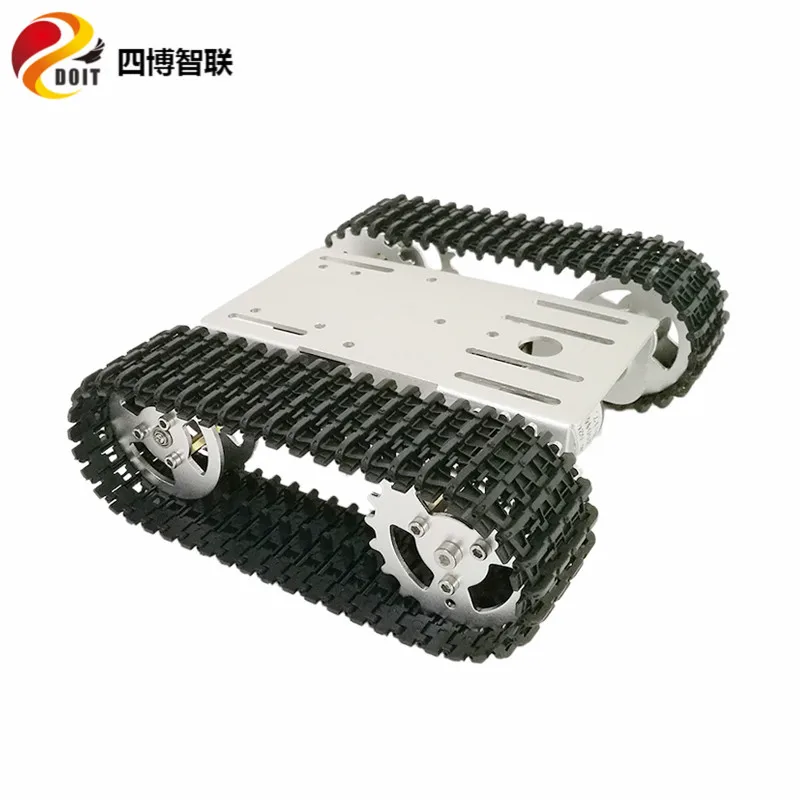

T101 tank chassis parameters:

• Model: T101 smart tank chassis
• Size: 19*16.5*5.7cm (length * width * height)
• Net weight: 0.53kg
• Panel material: 2mm aluminum alloy
• Surface treatment: sandblasting oxidation
• Track: engineering plastic
• Wheel: aluminum alloy

ESPduino V1 control kit:

• This kit consists of ESPDuino development board and 2-way motor board + 16-way servo expansion board, which can be used to control tank/car chassis, robot arm, etc;
• ESPDuino is an Android UNO-compatible development board based on ESP826613, which supports WIFI;
• The 2-way motor board + 16-channel servo expansion board is a motor and servo drive module compatible with Android UNO and ESPDuino. The module adopts a stack-in circuit board design and can be directly connected to the Android UNO or ESPDuino circuit board.

12V 350rpm 33 motor:

• Model: 33GB520
• Voltage range: 6V-12V
• No-load speed: 170-350rpm
• Rated voltage: DC12V
• No-load current: 100mA
• Weight: 100g

Shipping list:

• 1 × T101 tank chassis
• 2 × 12V350rpm 33 motor
• 1 × ESPduino control kit
• Free: 18650 battery box, hex wrench

Note:

• More documents can be downloaded at wiki.doit.am.
• In order to facilitate transportation, the product is not assembled. But it is very easy to install;
• Product does not contain battery.
